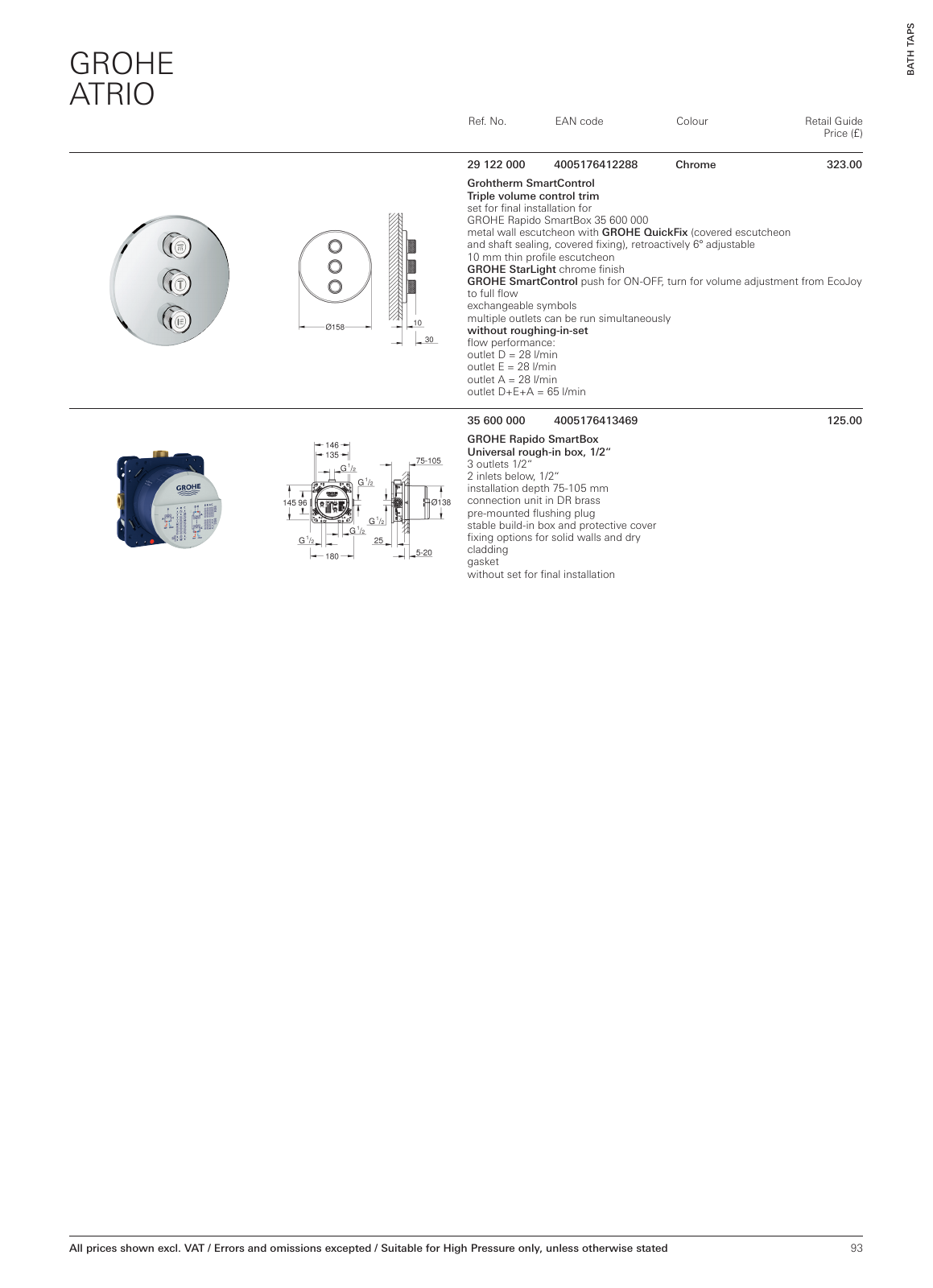

93 Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated GROHE ATRIO 29 122 000 4005176412288 Chrome 323 00 Grohtherm SmartControl Triple volume control trim set for final installation for GROHE Rapido SmartBox 35 600 000 metal wall escutcheon with GROHE QuickFix covered escutcheon and shaft sealing covered fixing retroactively 6 adjustable 10 mm thin profile escutcheon GROHE StarLight chrome finish GROHE SmartControl push for ON OFF turn for volume adjustment from EcoJoy to full flow exchangeable symbols multiple outlets can be run simultaneously without roughing in set flow performance outlet D 28 l min outlet E 28 l min outlet A 28 l min outlet D E A 65 l min 35 600 000 4005176413469 125 00 GROHE Rapido SmartBox Universal rough in box 1 2 3 outlets 1 2 2 inlets below 1 2 installation depth 75 105 mm connection unit in DR brass pre mounted flushing plug stable build in box and protective cover fixing options for solid walls and dry cladding gasket without set for final installation B A T H T A P S MPL UK en GB 06 PL Atrio New 4c indd 93 05 02 18 13 25
