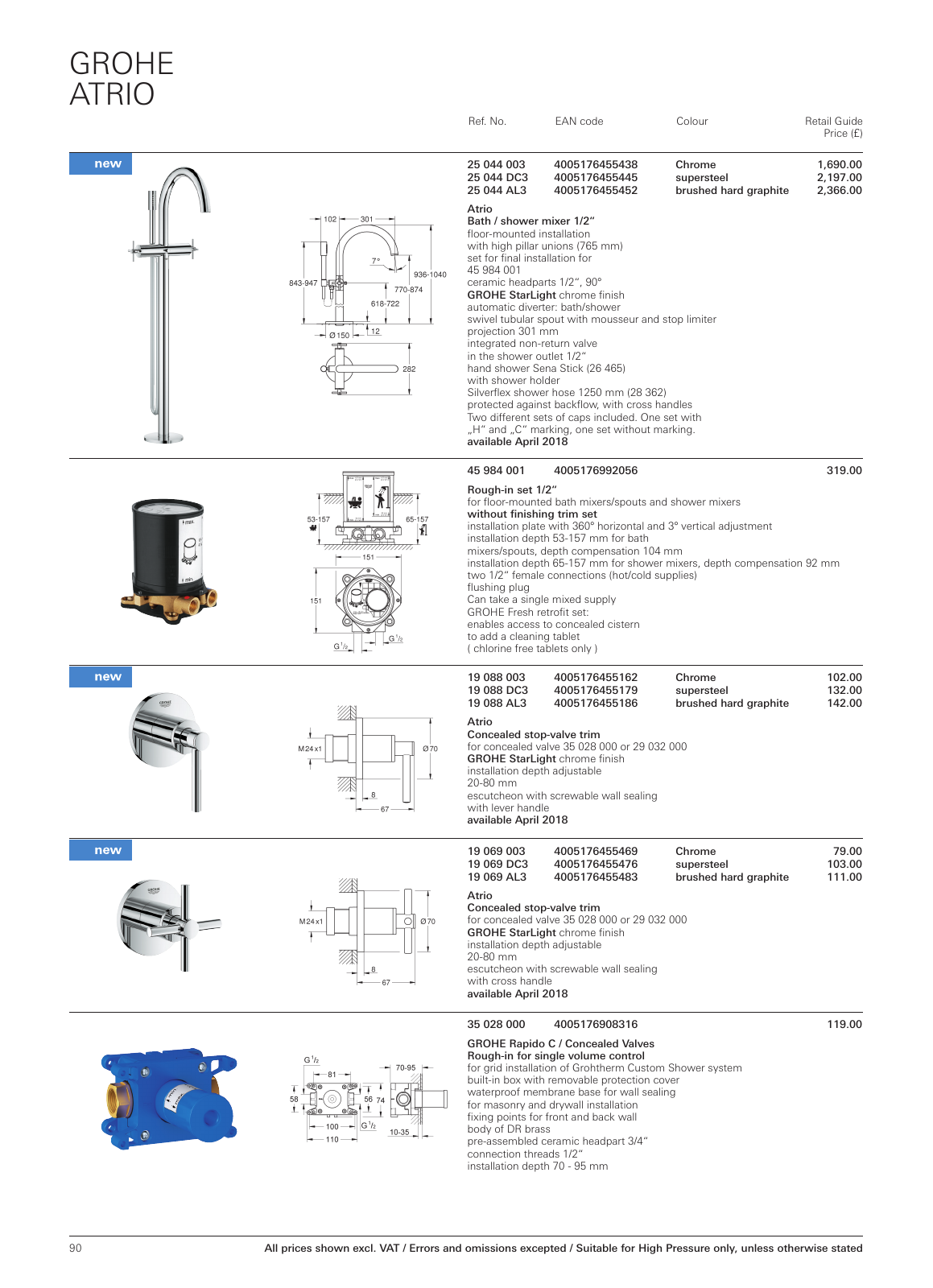

90 GROHE ATRIO Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated 25 044 003 4005176455438 Chrome 1 690 00 25 044 DC3 4005176455445 supersteel 2 197 00 25 044 AL3 4005176455452 brushed hard graphite 2 366 00 Atrio Bath shower mixer 1 2 floor mounted installation with high pillar unions 765 mm set for final installation for 45 984 001 ceramic headparts 1 2 90 GROHE StarLight chrome finish automatic diverter bath shower swivel tubular spout with mousseur and stop limiter projection 301 mm integrated non return valve in the shower outlet 1 2 hand shower Sena Stick 26 465 with shower holder Silverflex shower hose 1250 mm 28 362 protected against backflow with cross handles Two different sets of caps included One set with H and C marking one set without marking available April 2018 45 984 001 4005176992056 319 00 Rough in set 1 2 for floor mounted bath mixers spouts and shower mixers without finishing trim set installation plate with 360 horizontal and 3 vertical adjustment installation depth 53 157 mm for bath mixers spouts depth compensation 104 mm installation depth 65 157 mm for shower mixers depth compensation 92 mm two 1 2 female connections hot cold supplies flushing plug Can take a single mixed supply GROHE Fresh retrofit set enables access to concealed cistern to add a cleaning tablet chlorine free tablets only 19 088 003 4005176455162 Chrome 102 00 19 088 DC3 4005176455179 supersteel 132 00 19 088 AL3 4005176455186 brushed hard graphite 142 00 Atrio Concealed stop valve trim for concealed valve 35 028 000 or 29 032 000 GROHE StarLight chrome finish installation depth adjustable 20 80 mm escutcheon with screwable wall sealing with lever handle available April 2018 19 069 003 4005176455469 Chrome 79 00 19 069 DC3 4005176455476 supersteel 103 00 19 069 AL3 4005176455483 brushed hard graphite 111 00 Atrio Concealed stop valve trim for concealed valve 35 028 000 or 29 032 000 GROHE StarLight chrome finish installation depth adjustable 20 80 mm escutcheon with screwable wall sealing with cross handle available April 2018 35 028 000 4005176908316 119 00 GROHE Rapido C Concealed Valves Rough in for single volume control for grid installation of Grohtherm Custom Shower system built in box with removable protection cover waterproof membrane base for wall sealing for masonry and drywall installation fixing points for front and back wall body of DR brass pre assembled ceramic headpart 3 4 connection threads 1 2 installation depth 70 95 mm MPL UK en GB 06 PL Atrio New 4c indd 90 05 02 18 13 25
