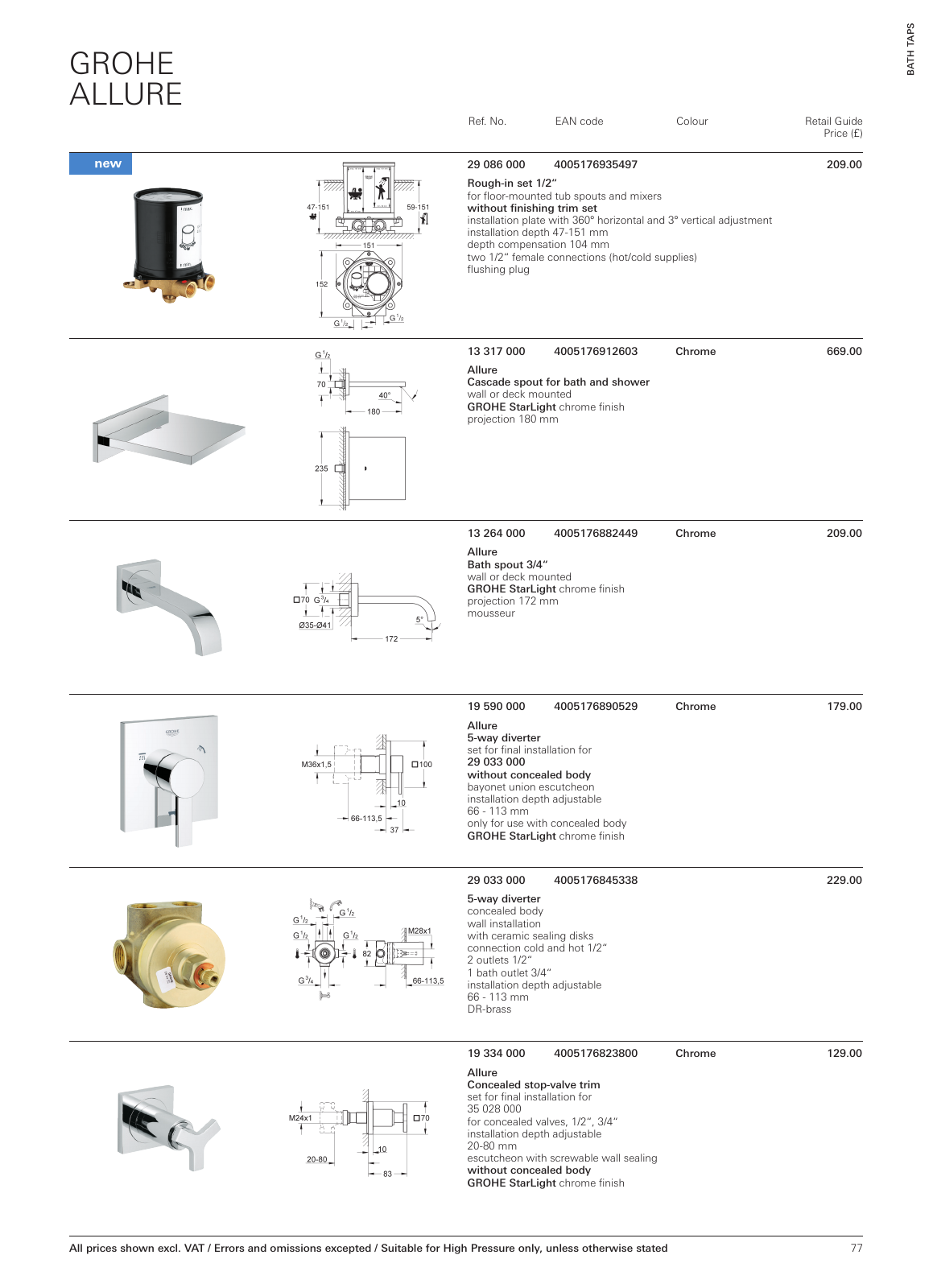

77 Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated GROHE ALLURE 29 086 000 4005176935497 209 00 Rough in set 1 2 for floor mounted tub spouts and mixers without finishing trim set installation plate with 360 horizontal and 3 vertical adjustment installation depth 47 151 mm depth compensation 104 mm two 1 2 female connections hot cold supplies flushing plug 13 317 000 4005176912603 Chrome 669 00 Allure Cascade spout for bath and shower wall or deck mounted GROHE StarLight chrome finish projection 180 mm 13 264 000 4005176882449 Chrome 209 00 Allure Bath spout 3 4 wall or deck mounted GROHE StarLight chrome finish projection 172 mm mousseur 19 590 000 4005176890529 Chrome 179 00 Allure 5 way diverter set for final installation for 29 033 000 without concealed body bayonet union escutcheon installation depth adjustable 66 113 mm only for use with concealed body GROHE StarLight chrome finish 29 033 000 4005176845338 229 00 5 way diverter concealed body wall installation with ceramic sealing disks connection cold and hot 1 2 2 outlets 1 2 1 bath outlet 3 4 installation depth adjustable 66 113 mm DR brass 19 334 000 4005176823800 Chrome 129 00 Allure Concealed stop valve trim set for final installation for 35 028 000 for concealed valves 1 2 3 4 installation depth adjustable 20 80 mm escutcheon with screwable wall sealing without concealed body GROHE StarLight chrome finish B A T H T A P S MPL UK en GB 05 PL Allure 4c indd 77 05 02 18 13 13
