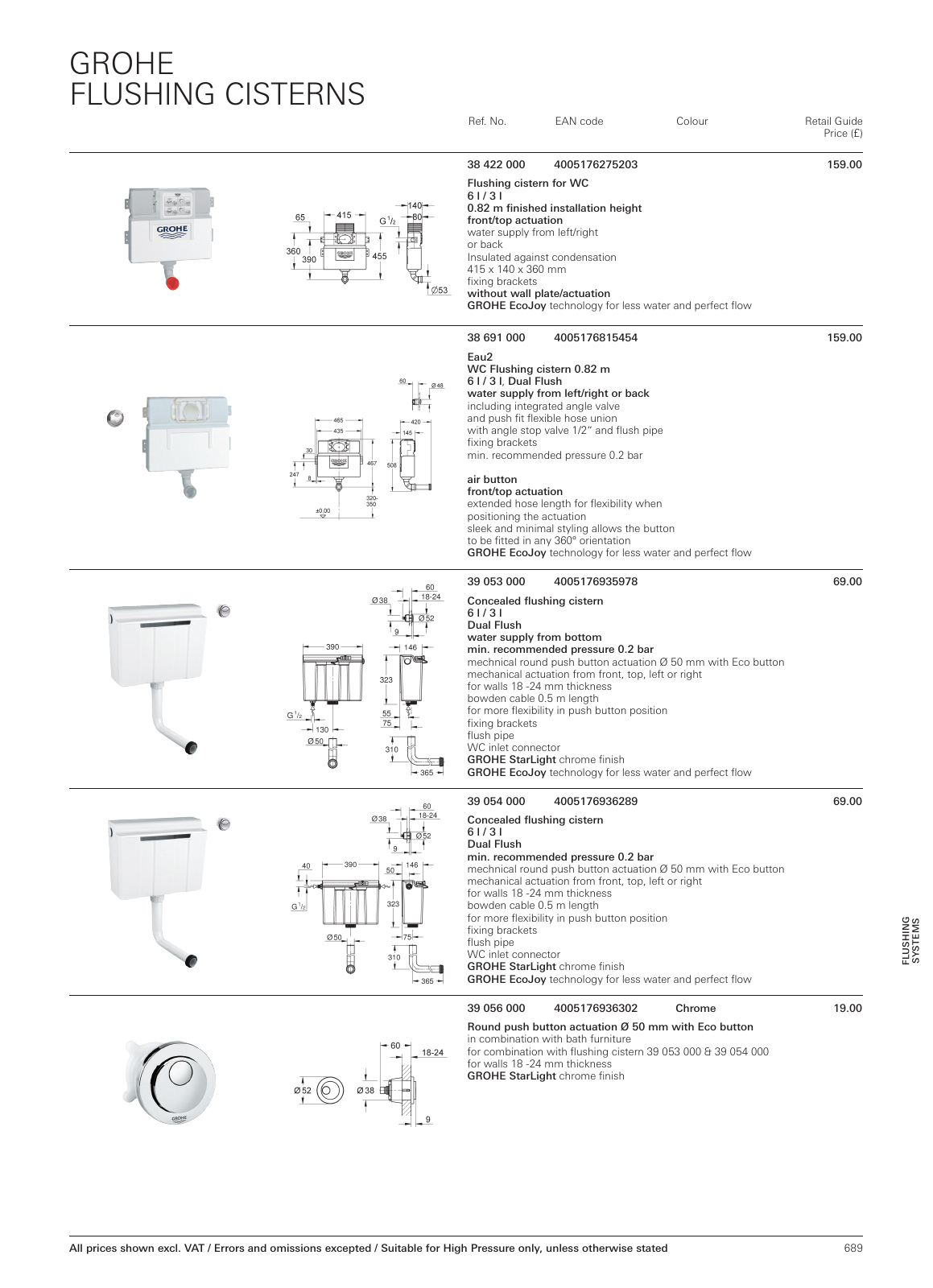

689 Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated GROHE FLUSHING CISTERNS 38 422 000 4005176275203 159 00 Flushing cistern for WC 6 l 3 l 0 82 m finished installation height front top actuation water supply from left right or back Insulated against condensation 415 x 140 x 360 mm fixing brackets without wall plate actuation GROHE EcoJoy technology for less water and perfect flow 38 691 000 4005176815454 159 00 Eau2 WC Flushing cistern 0 82 m 6 l 3 l Dual Flush water supply from left right or back including integrated angle valve and push fit flexible hose union with angle stop valve 1 2 and flush pipe fixing brackets min recommended pressure 0 2 bar air button front top actuation extended hose length for flexibility when positioning the actuation sleek and minimal styling allows the button to be fitted in any 360 orientation GROHE EcoJoy technology for less water and perfect flow 39 053 000 4005176935978 69 00 Concealed flushing cistern 6 l 3 l Dual Flush water supply from bottom min recommended pressure 0 2 bar mechnical round push button actuation Ø 50 mm with Eco button mechanical actuation from front top left or right for walls 18 24 mm thickness bowden cable 0 5 m length for more flexibility in push button position fixing brackets flush pipe WC inlet connector GROHE StarLight chrome finish GROHE EcoJoy technology for less water and perfect flow 39 054 000 4005176936289 69 00 Concealed flushing cistern 6 l 3 l Dual Flush min recommended pressure 0 2 bar mechnical round push button actuation Ø 50 mm with Eco button mechanical actuation from front top left or right for walls 18 24 mm thickness bowden cable 0 5 m length for more flexibility in push button position fixing brackets flush pipe WC inlet connector GROHE StarLight chrome finish GROHE EcoJoy technology for less water and perfect flow 39 056 000 4005176936302 Chrome 19 00 Round push button actuation Ø 50 mm with Eco button in combination with bath furniture for combination with flushing cistern 39 053 000 39 054 000 for walls 18 24 mm thickness GROHE StarLight chrome finish FL U S H IN G S Y S T E M S MPL UK en GB 114 PL Flushing Cisterns 4c indd 689 06 02 18 11 39
