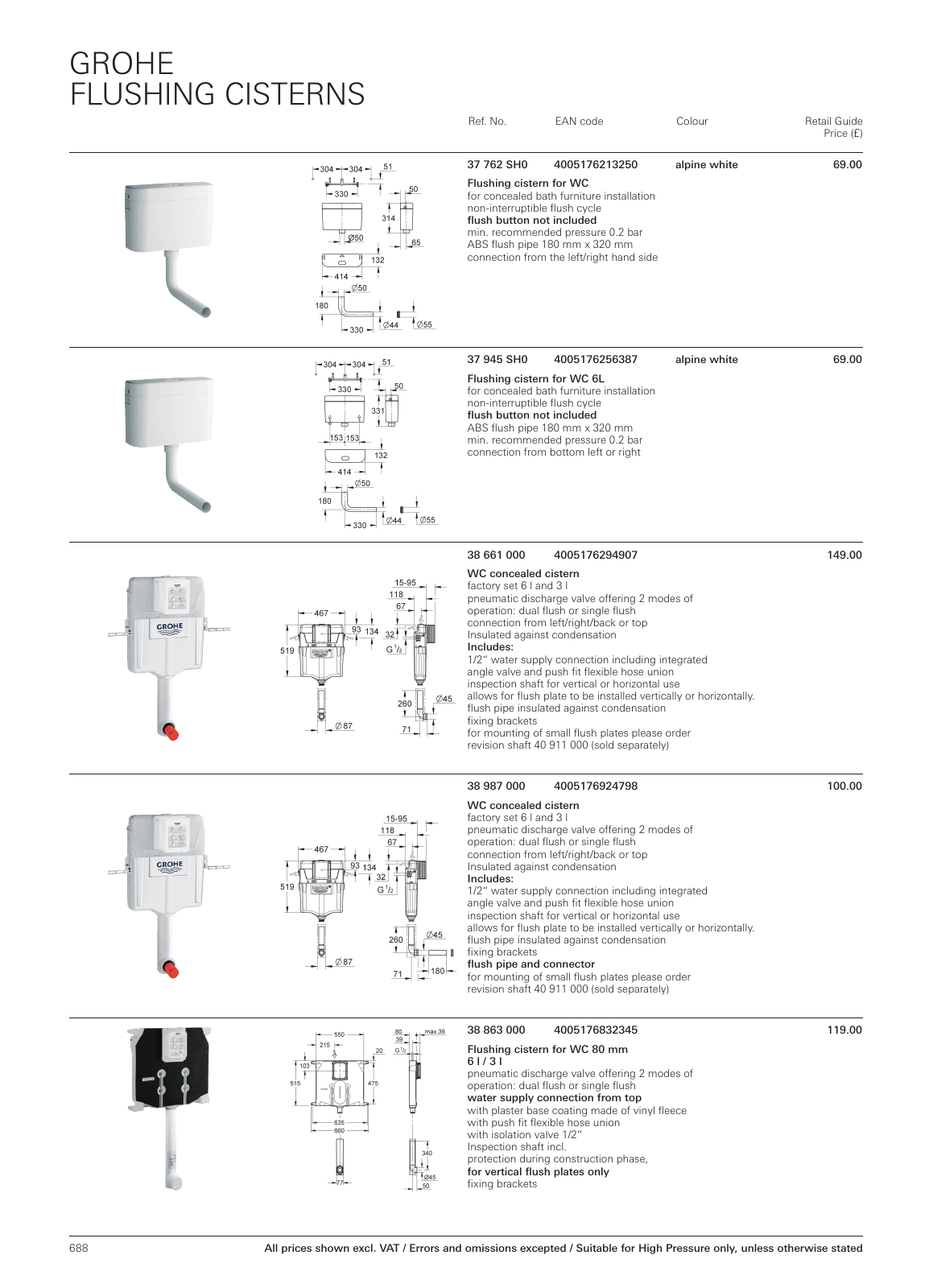

688 GROHE FLUSHING CISTERNS Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated 37 762 SH0 4005176213250 alpine white 69 00 Flushing cistern for WC for concealed bath furniture installation non interruptible flush cycle flush button not included min recommended pressure 0 2 bar ABS flush pipe 180 mm x 320 mm connection from the left right hand side 37 945 SH0 4005176256387 alpine white 69 00 Flushing cistern for WC 6L for concealed bath furniture installation non interruptible flush cycle flush button not included ABS flush pipe 180 mm x 320 mm min recommended pressure 0 2 bar connection from bottom left or right 38 661 000 4005176294907 149 00 WC concealed cistern factory set 6 l and 3 l pneumatic discharge valve offering 2 modes of operation dual flush or single flush connection from left right back or top Insulated against condensation Includes 1 2 water supply connection including integrated angle valve and push fit flexible hose union inspection shaft for vertical or horizontal use allows for flush plate to be installed vertically or horizontally flush pipe insulated against condensation fixing brackets for mounting of small flush plates please order revision shaft 40 911 000 sold separately 38 987 000 4005176924798 100 00 WC concealed cistern factory set 6 l and 3 l pneumatic discharge valve offering 2 modes of operation dual flush or single flush connection from left right back or top Insulated against condensation Includes 1 2 water supply connection including integrated angle valve and push fit flexible hose union inspection shaft for vertical or horizontal use allows for flush plate to be installed vertically or horizontally flush pipe insulated against condensation fixing brackets flush pipe and connector for mounting of small flush plates please order revision shaft 40 911 000 sold separately 38 863 000 4005176832345 119 00 Flushing cistern for WC 80 mm 6 l 3 l pneumatic discharge valve offering 2 modes of operation dual flush or single flush water supply connection from top with plaster base coating made of vinyl fleece with push fit flexible hose union with isolation valve 1 2 Inspection shaft incl protection during construction phase for vertical flush plates only fixing brackets MPL UK en GB 114 PL Flushing Cisterns 4c indd 688 06 02 18 11 39
