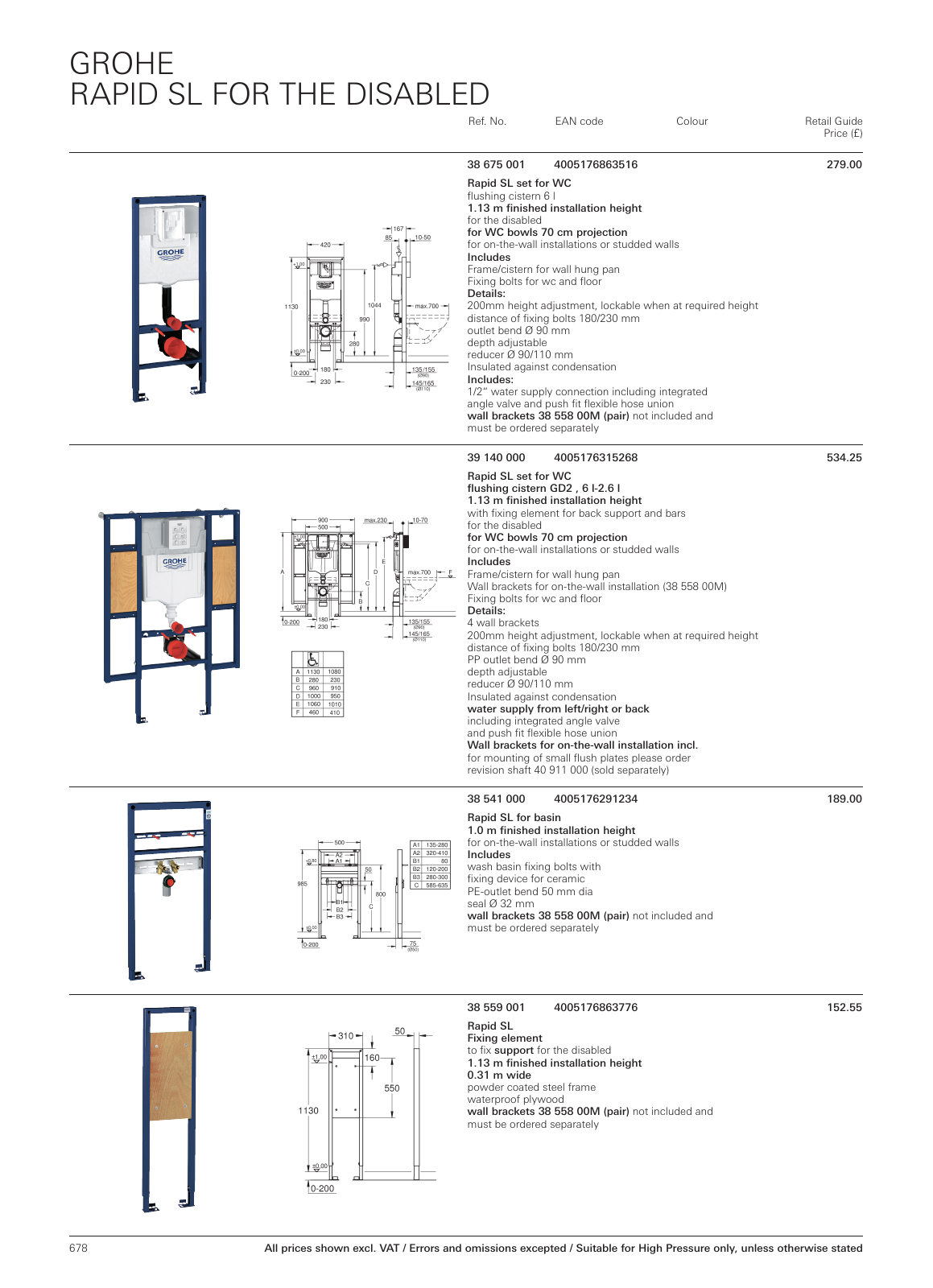

678 GROHE RAPID SL FOR THE DISABLED Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated 38 675 001 4005176863516 279 00 Rapid SL set for WC flushing cistern 6 l 1 13 m finished installation height for the disabled for WC bowls 70 cm projection for on the wall installations or studded walls Includes Frame cistern for wall hung pan Fixing bolts for wc and floor Details 200mm height adjustment lockable when at required height distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm Insulated against condensation Includes 1 2 water supply connection including integrated angle valve and push fit flexible hose union wall brackets 38 558 00M pair not included and must be ordered separately 39 140 000 4005176315268 534 25 Rapid SL set for WC flushing cistern GD2 6 l 2 6 l 1 13 m finished installation height with fixing element for back support and bars for the disabled for WC bowls 70 cm projection for on the wall installations or studded walls Includes Frame cistern for wall hung pan Wall brackets for on the wall installation 38 558 00M Fixing bolts for wc and floor Details 4 wall brackets 200mm height adjustment lockable when at required height distance of fixing bolts 180 230 mm PP outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm Insulated against condensation water supply from left right or back including integrated angle valve and push fit flexible hose union Wall brackets for on the wall installation incl for mounting of small flush plates please order revision shaft 40 911 000 sold separately 38 541 000 4005176291234 189 00 Rapid SL for basin 1 0 m finished installation height for on the wall installations or studded walls Includes wash basin fixing bolts with fixing device for ceramic PE outlet bend 50 mm dia seal Ø 32 mm wall brackets 38 558 00M pair not included and must be ordered separately 38 559 001 4005176863776 152 55 Rapid SL Fixing element to fix support for the disabled 1 13 m finished installation height 0 31 m wide powder coated steel frame waterproof plywood wall brackets 38 558 00M pair not included and must be ordered separately MPL UK en GB 111 PL Rapid SL Disabled 4c indd 678 06 02 18 11 28
