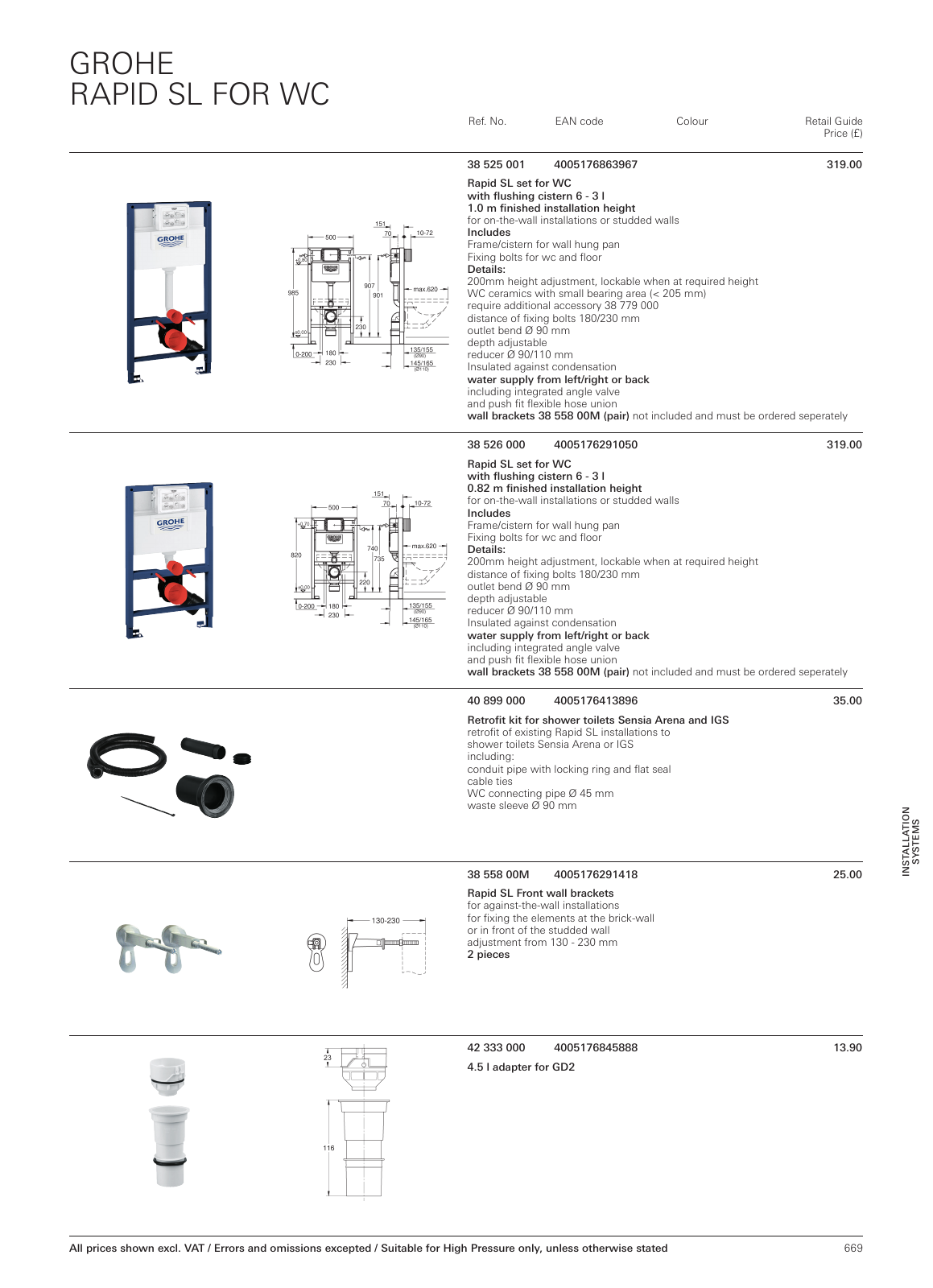

669 Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated GROHE RAPID SL FOR WC 38 525 001 4005176863967 319 00 Rapid SL set for WC with flushing cistern 6 3 l 1 0 m finished installation height for on the wall installations or studded walls Includes Frame cistern for wall hung pan Fixing bolts for wc and floor Details 200mm height adjustment lockable when at required height WC ceramics with small bearing area 205 mm require additional accessory 38 779 000 distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm Insulated against condensation water supply from left right or back including integrated angle valve and push fit flexible hose union wall brackets 38 558 00M pair not included and must be ordered seperately 38 526 000 4005176291050 319 00 Rapid SL set for WC with flushing cistern 6 3 l 0 82 m finished installation height for on the wall installations or studded walls Includes Frame cistern for wall hung pan Fixing bolts for wc and floor Details 200mm height adjustment lockable when at required height distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm Insulated against condensation water supply from left right or back including integrated angle valve and push fit flexible hose union wall brackets 38 558 00M pair not included and must be ordered seperately 40 899 000 4005176413896 35 00 Retrofit kit for shower toilets Sensia Arena and IGS retrofit of existing Rapid SL installations to shower toilets Sensia Arena or IGS including conduit pipe with locking ring and flat seal cable ties WC connecting pipe Ø 45 mm waste sleeve Ø 90 mm 38 558 00M 4005176291418 25 00 Rapid SL Front wall brackets for against the wall installations for fixing the elements at the brick wall or in front of the studded wall adjustment from 130 230 mm 2 pieces 42 333 000 4005176845888 13 90 4 5 l adapter for GD2 IN S TA LL A T IO N S Y S T E M S MPL UK en GB 108 PL Rapid SL WC 4c indd 669 06 02 18 11 18
