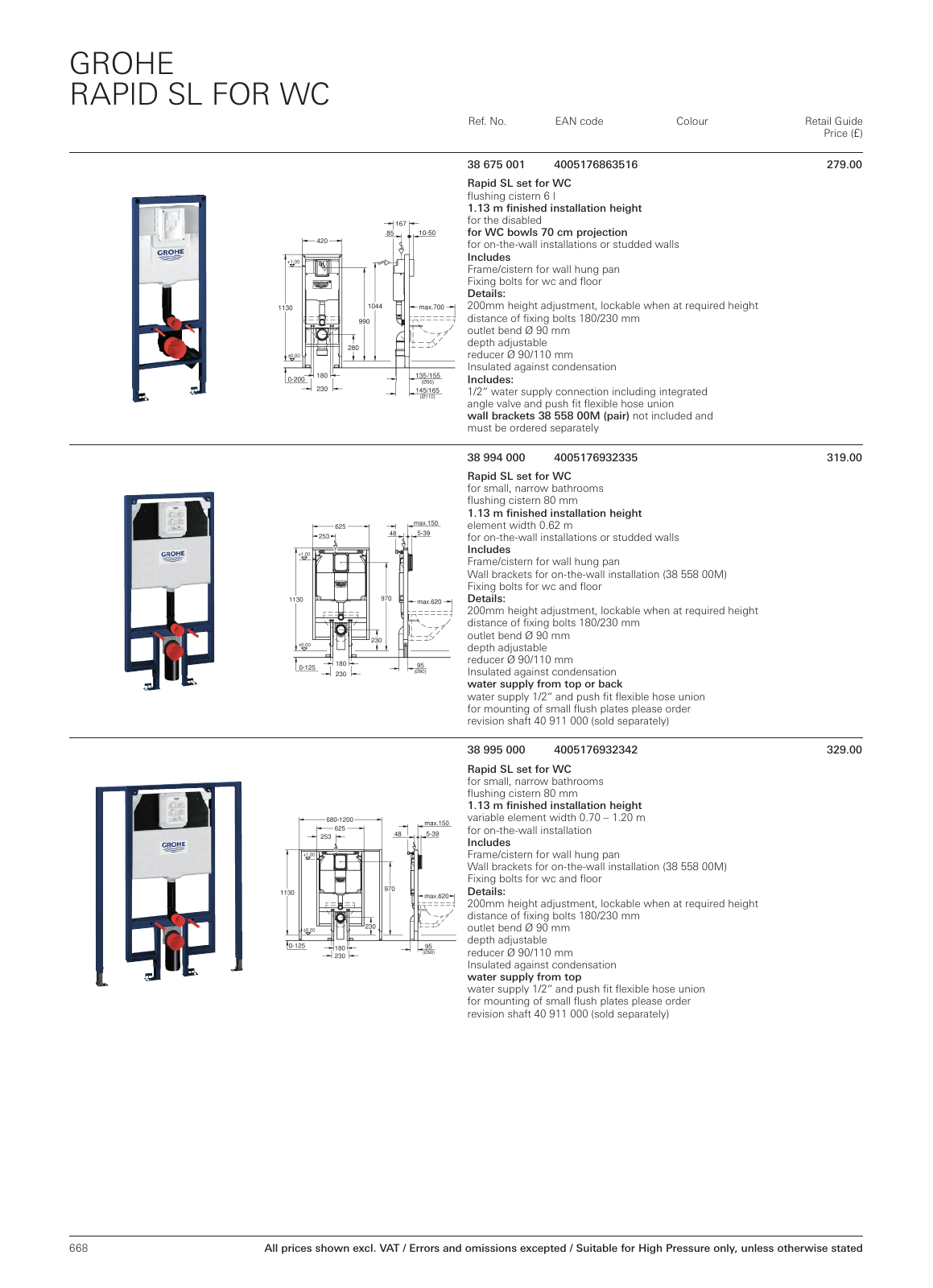

668 GROHE RAPID SL FOR WC Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated 38 675 001 4005176863516 279 00 Rapid SL set for WC flushing cistern 6 l 1 13 m finished installation height for the disabled for WC bowls 70 cm projection for on the wall installations or studded walls Includes Frame cistern for wall hung pan Fixing bolts for wc and floor Details 200mm height adjustment lockable when at required height distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm Insulated against condensation Includes 1 2 water supply connection including integrated angle valve and push fit flexible hose union wall brackets 38 558 00M pair not included and must be ordered separately 38 994 000 4005176932335 319 00 Rapid SL set for WC for small narrow bathrooms flushing cistern 80 mm 1 13 m finished installation height element width 0 62 m for on the wall installations or studded walls Includes Frame cistern for wall hung pan Wall brackets for on the wall installation 38 558 00M Fixing bolts for wc and floor Details 200mm height adjustment lockable when at required height distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm Insulated against condensation water supply from top or back water supply 1 2 and push fit flexible hose union for mounting of small flush plates please order revision shaft 40 911 000 sold separately 38 995 000 4005176932342 329 00 Rapid SL set for WC for small narrow bathrooms flushing cistern 80 mm 1 13 m finished installation height variable element width 0 70 1 20 m for on the wall installation Includes Frame cistern for wall hung pan Wall brackets for on the wall installation 38 558 00M Fixing bolts for wc and floor Details 200mm height adjustment lockable when at required height distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm Insulated against condensation water supply from top water supply 1 2 and push fit flexible hose union for mounting of small flush plates please order revision shaft 40 911 000 sold separately MPL UK en GB 108 PL Rapid SL WC 4c indd 668 06 02 18 11 18
