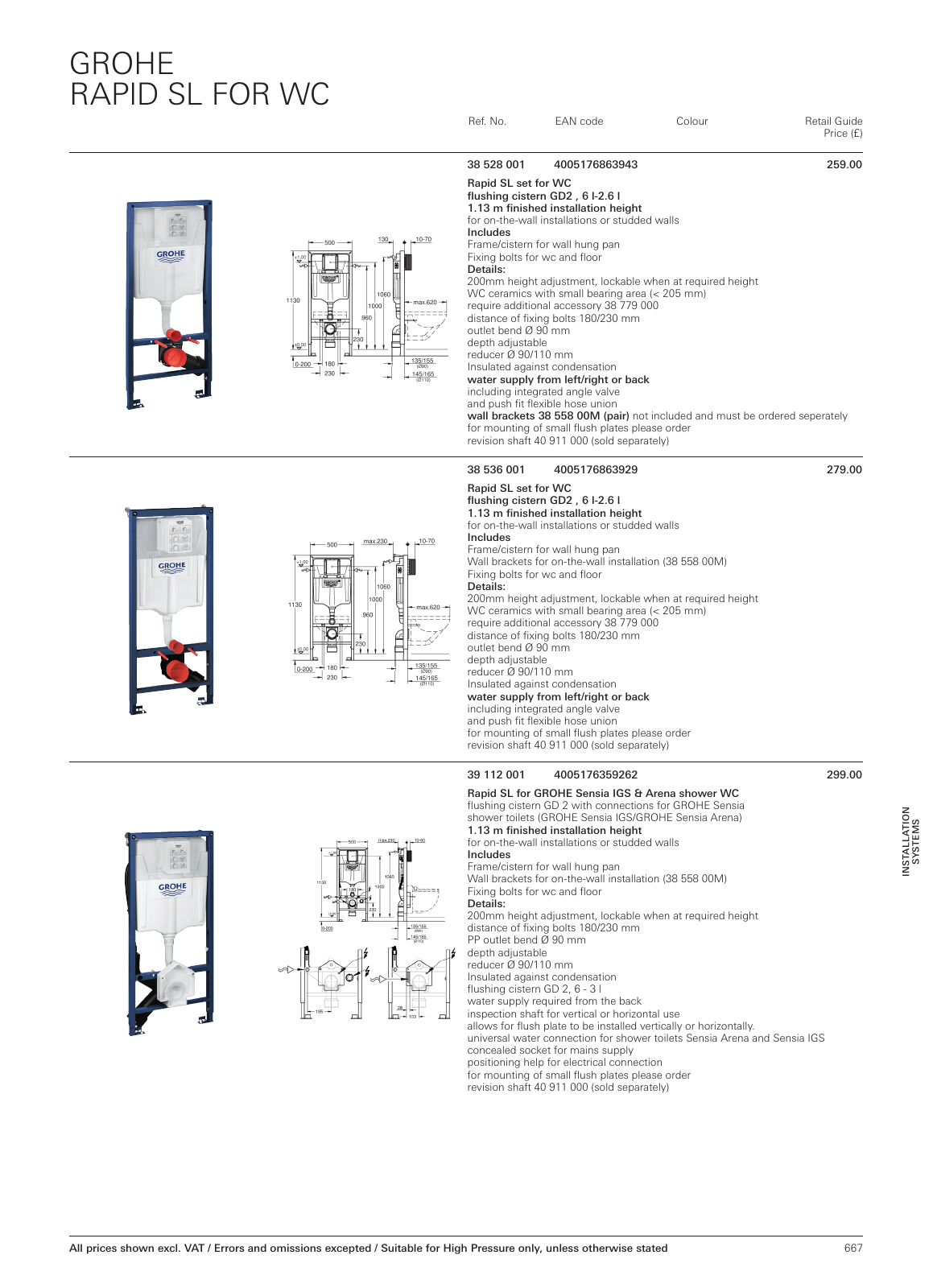

667 Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated GROHE RAPID SL FOR WC 38 528 001 4005176863943 259 00 Rapid SL set for WC flushing cistern GD2 6 l 2 6 l 1 13 m finished installation height for on the wall installations or studded walls Includes Frame cistern for wall hung pan Fixing bolts for wc and floor Details 200mm height adjustment lockable when at required height WC ceramics with small bearing area 205 mm require additional accessory 38 779 000 distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm Insulated against condensation water supply from left right or back including integrated angle valve and push fit flexible hose union wall brackets 38 558 00M pair not included and must be ordered seperately for mounting of small flush plates please order revision shaft 40 911 000 sold separately 38 536 001 4005176863929 279 00 Rapid SL set for WC flushing cistern GD2 6 l 2 6 l 1 13 m finished installation height for on the wall installations or studded walls Includes Frame cistern for wall hung pan Wall brackets for on the wall installation 38 558 00M Fixing bolts for wc and floor Details 200mm height adjustment lockable when at required height WC ceramics with small bearing area 205 mm require additional accessory 38 779 000 distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm Insulated against condensation water supply from left right or back including integrated angle valve and push fit flexible hose union for mounting of small flush plates please order revision shaft 40 911 000 sold separately 39 112 001 4005176359262 299 00 Rapid SL for GROHE Sensia IGS Arena shower WC flushing cistern GD 2 with connections for GROHE Sensia shower toilets GROHE Sensia IGS GROHE Sensia Arena 1 13 m finished installation height for on the wall installations or studded walls Includes Frame cistern for wall hung pan Wall brackets for on the wall installation 38 558 00M Fixing bolts for wc and floor Details 200mm height adjustment lockable when at required height distance of fixing bolts 180 230 mm PP outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm Insulated against condensation flushing cistern GD 2 6 3 l water supply required from the back inspection shaft for vertical or horizontal use allows for flush plate to be installed vertically or horizontally universal water connection for shower toilets Sensia Arena and Sensia IGS concealed socket for mains supply positioning help for electrical connection for mounting of small flush plates please order revision shaft 40 911 000 sold separately IN S TA LL A T IO N S Y S T E M S MPL UK en GB 108 PL Rapid SL WC 4c indd 667 06 02 18 11 18
