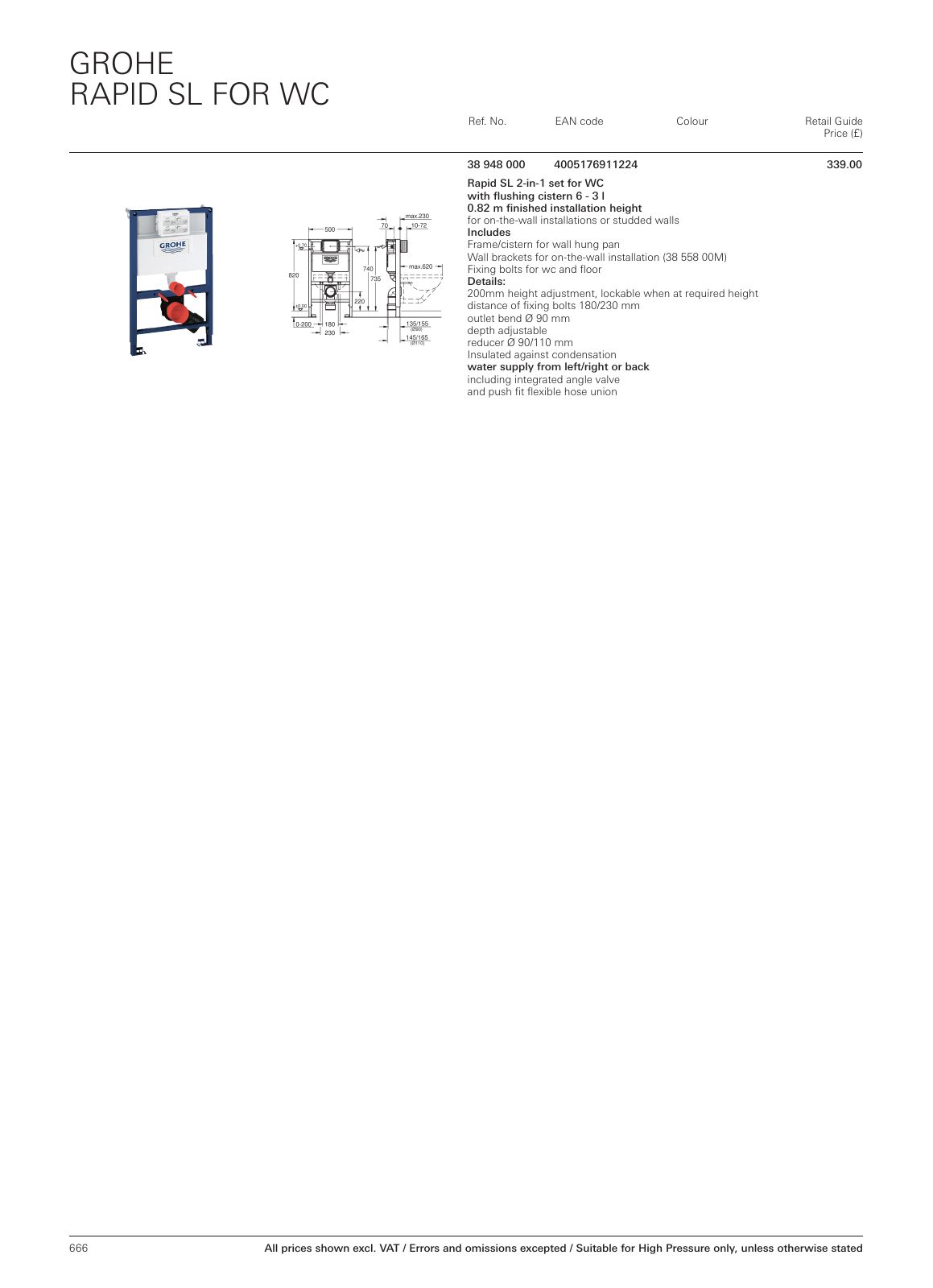

666 GROHE RAPID SL FOR WC Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated 38 948 000 4005176911224 339 00 Rapid SL 2 in 1 set for WC with flushing cistern 6 3 l 0 82 m finished installation height for on the wall installations or studded walls Includes Frame cistern for wall hung pan Wall brackets for on the wall installation 38 558 00M Fixing bolts for wc and floor Details 200mm height adjustment lockable when at required height distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm Insulated against condensation water supply from left right or back including integrated angle valve and push fit flexible hose union MPL UK en GB 108 PL Rapid SL WC 4c indd 666 06 02 18 11 18
