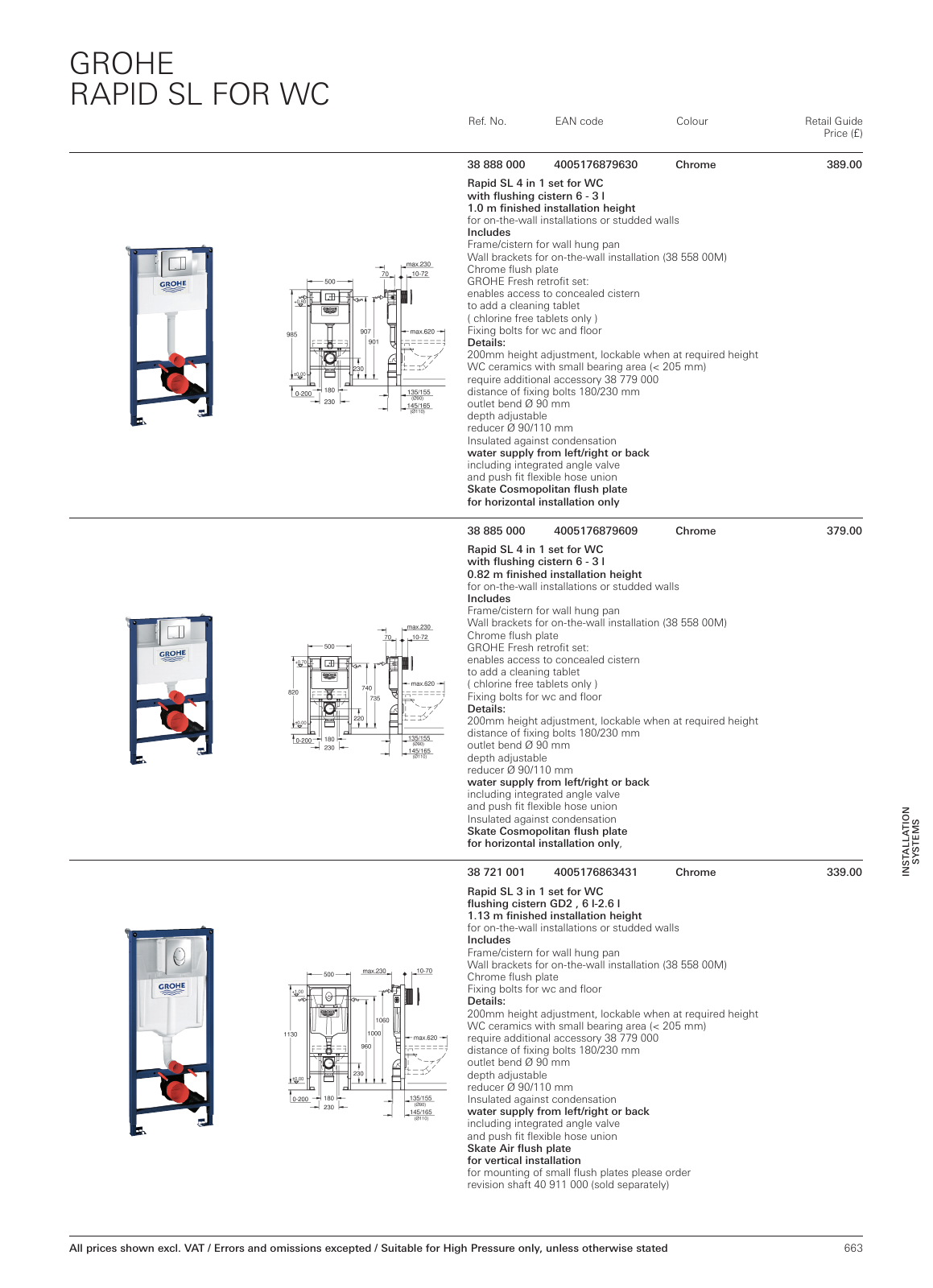

663 Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated GROHE RAPID SL FOR WC 38 888 000 4005176879630 Chrome 389 00 Rapid SL 4 in 1 set for WC with flushing cistern 6 3 l 1 0 m finished installation height for on the wall installations or studded walls Includes Frame cistern for wall hung pan Wall brackets for on the wall installation 38 558 00M Chrome flush plate GROHE Fresh retrofit set enables access to concealed cistern to add a cleaning tablet chlorine free tablets only Fixing bolts for wc and floor Details 200mm height adjustment lockable when at required height WC ceramics with small bearing area 205 mm require additional accessory 38 779 000 distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm Insulated against condensation water supply from left right or back including integrated angle valve and push fit flexible hose union Skate Cosmopolitan flush plate for horizontal installation only 38 885 000 4005176879609 Chrome 379 00 Rapid SL 4 in 1 set for WC with flushing cistern 6 3 l 0 82 m finished installation height for on the wall installations or studded walls Includes Frame cistern for wall hung pan Wall brackets for on the wall installation 38 558 00M Chrome flush plate GROHE Fresh retrofit set enables access to concealed cistern to add a cleaning tablet chlorine free tablets only Fixing bolts for wc and floor Details 200mm height adjustment lockable when at required height distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm water supply from left right or back including integrated angle valve and push fit flexible hose union Insulated against condensation Skate Cosmopolitan flush plate for horizontal installation only 38 721 001 4005176863431 Chrome 339 00 Rapid SL 3 in 1 set for WC flushing cistern GD2 6 l 2 6 l 1 13 m finished installation height for on the wall installations or studded walls Includes Frame cistern for wall hung pan Wall brackets for on the wall installation 38 558 00M Chrome flush plate Fixing bolts for wc and floor Details 200mm height adjustment lockable when at required height WC ceramics with small bearing area 205 mm require additional accessory 38 779 000 distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm Insulated against condensation water supply from left right or back including integrated angle valve and push fit flexible hose union Skate Air flush plate for vertical installation for mounting of small flush plates please order revision shaft 40 911 000 sold separately IN S TA LL A T IO N S Y S T E M S MPL UK en GB 108 PL Rapid SL WC 4c indd 663 06 02 18 11 17
