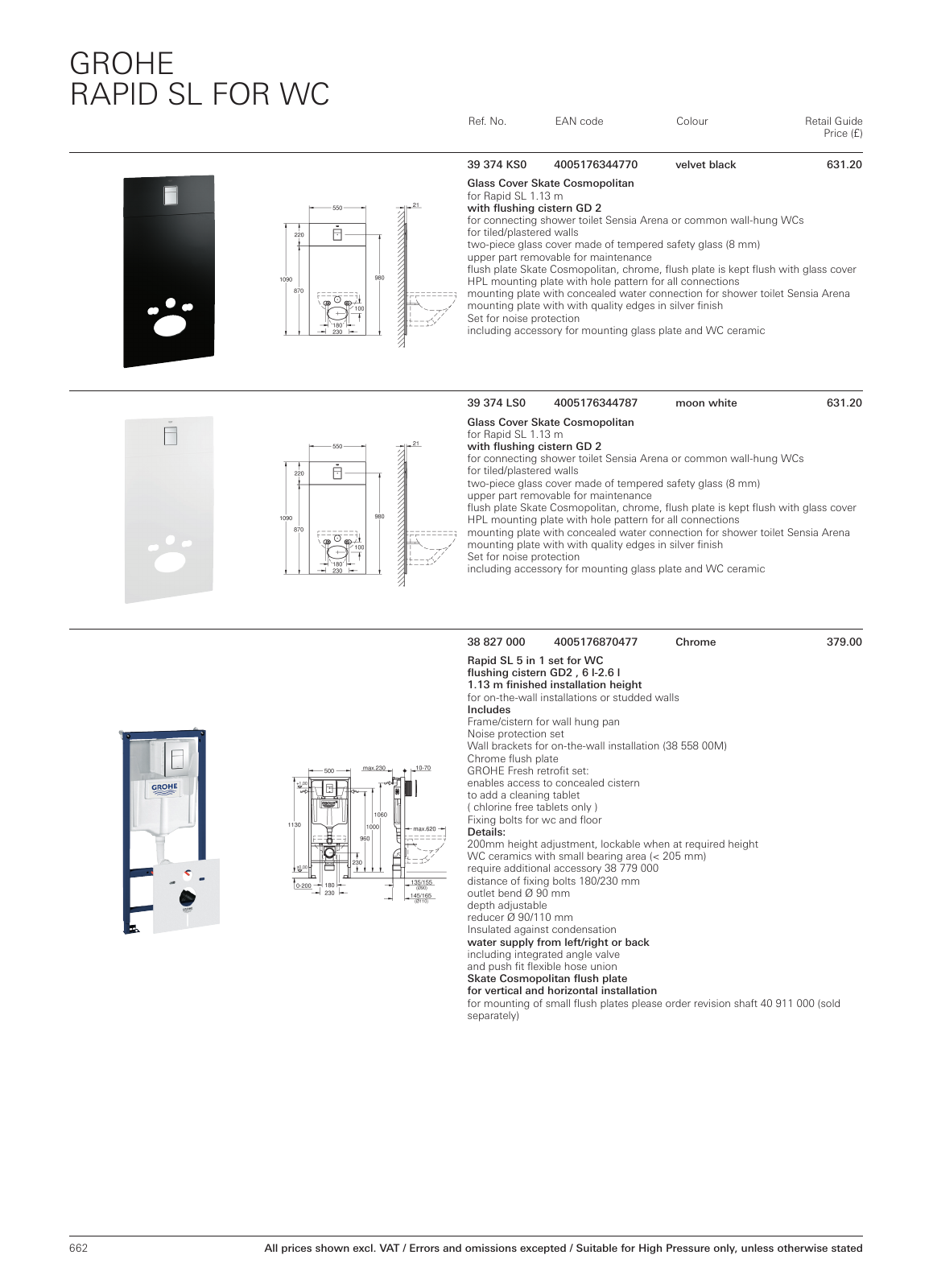

662 GROHE RAPID SL FOR WC Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated 39 374 KS0 4005176344770 velvet black 631 20 Glass Cover Skate Cosmopolitan for Rapid SL 1 13 m with flushing cistern GD 2 for connecting shower toilet Sensia Arena or common wall hung WCs for tiled plastered walls two piece glass cover made of tempered safety glass 8 mm upper part removable for maintenance flush plate Skate Cosmopolitan chrome flush plate is kept flush with glass cover HPL mounting plate with hole pattern for all connections mounting plate with concealed water connection for shower toilet Sensia Arena mounting plate with with quality edges in silver finish Set for noise protection including accessory for mounting glass plate and WC ceramic 39 374 LS0 4005176344787 moon white 631 20 Glass Cover Skate Cosmopolitan for Rapid SL 1 13 m with flushing cistern GD 2 for connecting shower toilet Sensia Arena or common wall hung WCs for tiled plastered walls two piece glass cover made of tempered safety glass 8 mm upper part removable for maintenance flush plate Skate Cosmopolitan chrome flush plate is kept flush with glass cover HPL mounting plate with hole pattern for all connections mounting plate with concealed water connection for shower toilet Sensia Arena mounting plate with with quality edges in silver finish Set for noise protection including accessory for mounting glass plate and WC ceramic 38 827 000 4005176870477 Chrome 379 00 Rapid SL 5 in 1 set for WC flushing cistern GD2 6 l 2 6 l 1 13 m finished installation height for on the wall installations or studded walls Includes Frame cistern for wall hung pan Noise protection set Wall brackets for on the wall installation 38 558 00M Chrome flush plate GROHE Fresh retrofit set enables access to concealed cistern to add a cleaning tablet chlorine free tablets only Fixing bolts for wc and floor Details 200mm height adjustment lockable when at required height WC ceramics with small bearing area 205 mm require additional accessory 38 779 000 distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm Insulated against condensation water supply from left right or back including integrated angle valve and push fit flexible hose union Skate Cosmopolitan flush plate for vertical and horizontal installation for mounting of small flush plates please order revision shaft 40 911 000 sold separately MPL UK en GB 108 PL Rapid SL WC 4c indd 662 06 02 18 11 17
