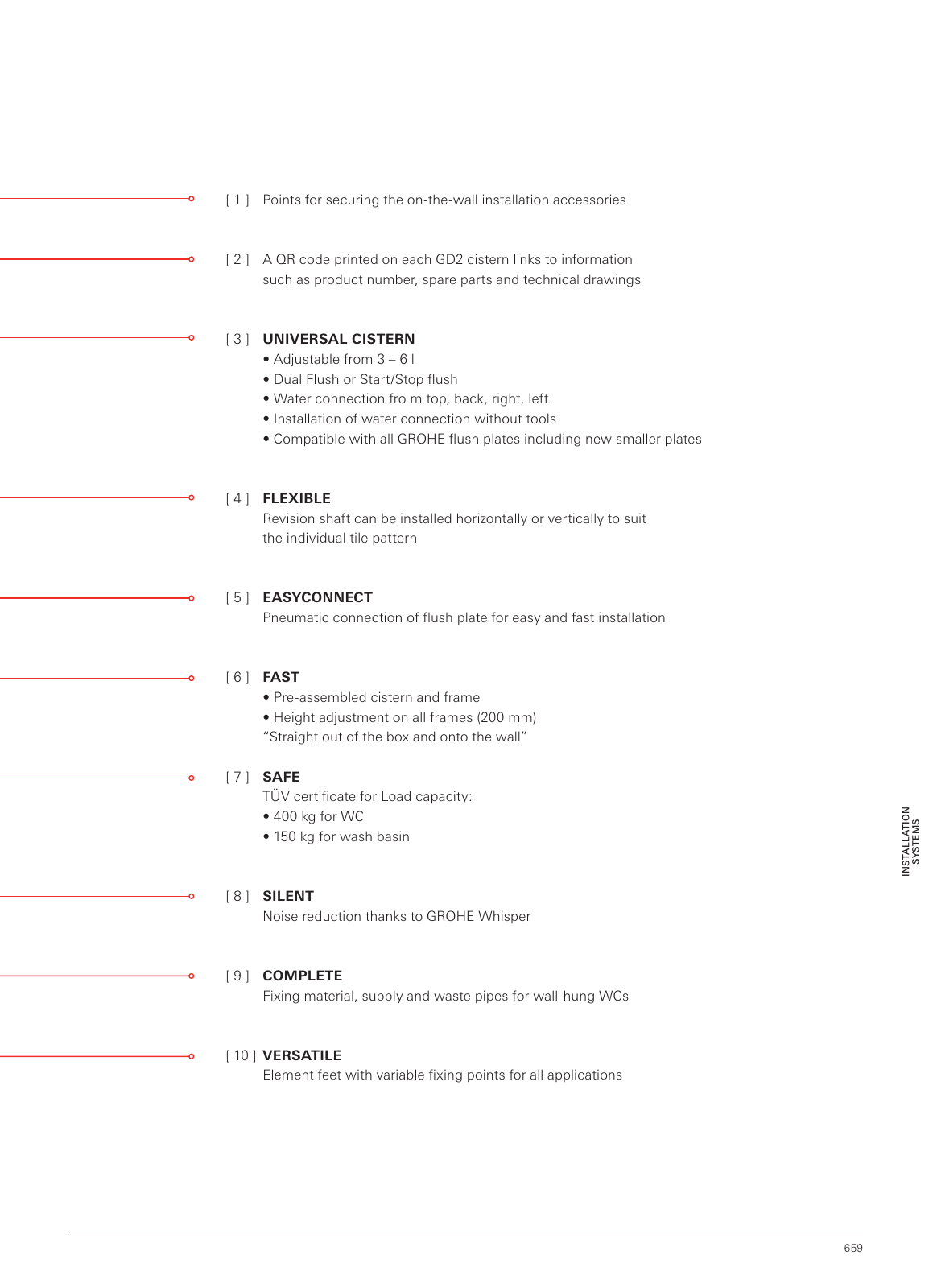

659 IN S TA LL A T IO N S Y S T E M S 1 Points for securing the on the wall installation accessories 2 A QR code printed on each GD2 cistern links to information such as product number spare parts and technical drawings 3 UNIVERSAL CISTERN Adjustable from 3 6 l Dual Flush or Start Stop flush Water connection fro m top back right left Installation of water connection without tools Compatible with all GROHE flush plates including new smaller plates 4 FLEXIBLE Revision shaft can be installed horizontally or vertically to suit the individual tile pattern 5 EASYCONNECT Pneumatic connection of flush plate for easy and fast installation 6 FAST Pre assembled cistern and frame Height adjustment on all frames 200 mm Straight out of the box and onto the wall 7 SAFE TÜV certificate for Load capacity 400 kg for WC 150 kg for wash basin 8 SILENT Noise reduction thanks to GROHE Whisper 9 COMPLETE Fixing material supply and waste pipes for wall hung WCs 10 VERSATILE Element feet with variable fixing points for all applications MPL UK en GB 108 1 Intro IS indd 659 06 02 18 11 33
