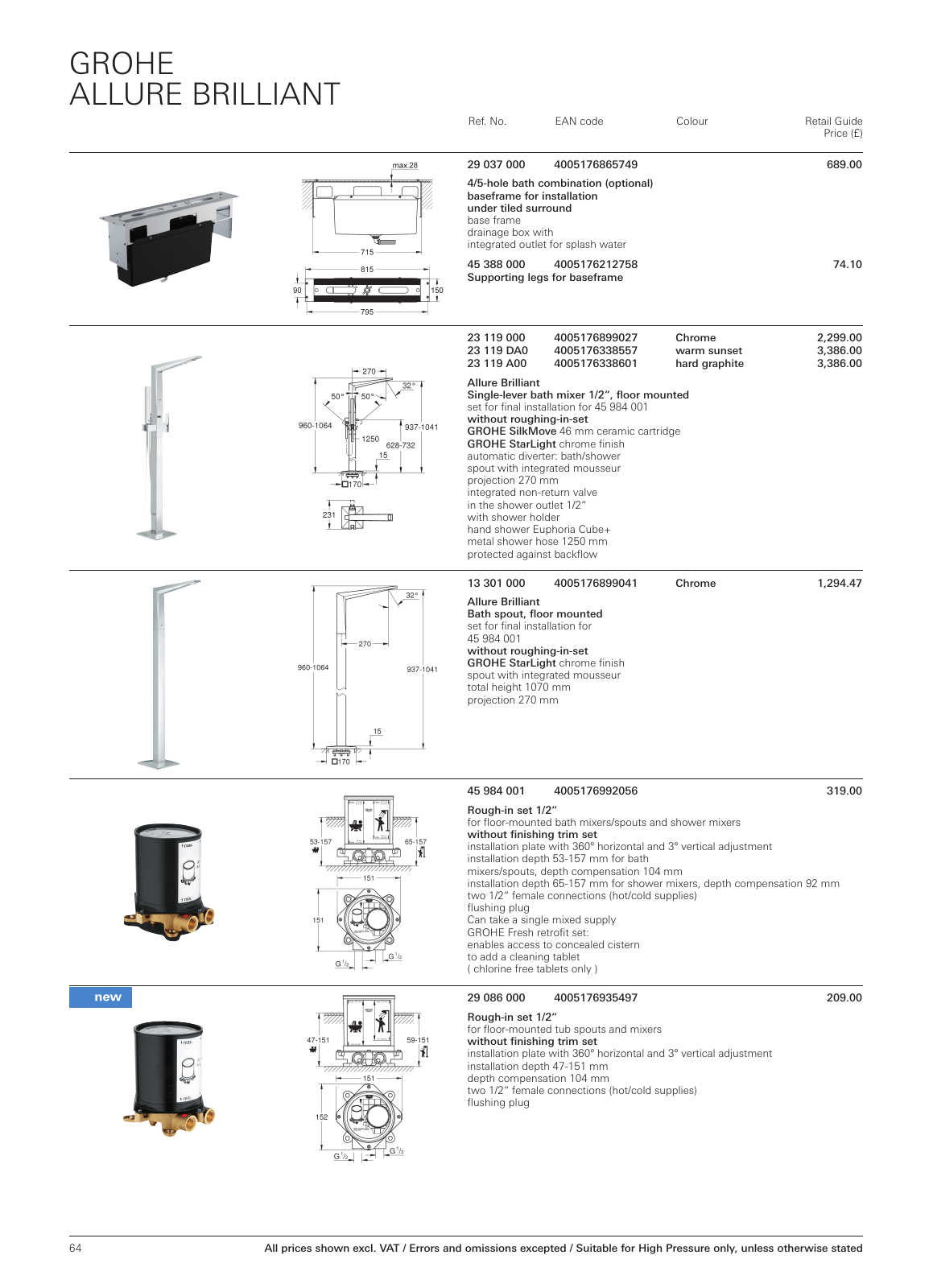

64 GROHE ALLURE BRILLIANT Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated 29 037 000 4005176865749 689 00 4 5 hole bath combination optional baseframe for installation under tiled surround base frame drainage box with integrated outlet for splash water 45 388 000 4005176212758 74 10 Supporting legs for baseframe 23 119 000 4005176899027 Chrome 2 299 00 23 119 DA0 4005176338557 warm sunset 3 386 00 23 119 A00 4005176338601 hard graphite 3 386 00 Allure Brilliant Single lever bath mixer 1 2 floor mounted set for final installation for 45 984 001 without roughing in set GROHE SilkMove 46 mm ceramic cartridge GROHE StarLight chrome finish automatic diverter bath shower spout with integrated mousseur projection 270 mm integrated non return valve in the shower outlet 1 2 with shower holder hand shower Euphoria Cube metal shower hose 1250 mm protected against backflow 13 301 000 4005176899041 Chrome 1 294 47 Allure Brilliant Bath spout floor mounted set for final installation for 45 984 001 without roughing in set GROHE StarLight chrome finish spout with integrated mousseur total height 1070 mm projection 270 mm 45 984 001 4005176992056 319 00 Rough in set 1 2 for floor mounted bath mixers spouts and shower mixers without finishing trim set installation plate with 360 horizontal and 3 vertical adjustment installation depth 53 157 mm for bath mixers spouts depth compensation 104 mm installation depth 65 157 mm for shower mixers depth compensation 92 mm two 1 2 female connections hot cold supplies flushing plug Can take a single mixed supply GROHE Fresh retrofit set enables access to concealed cistern to add a cleaning tablet chlorine free tablets only 29 086 000 4005176935497 209 00 Rough in set 1 2 for floor mounted tub spouts and mixers without finishing trim set installation plate with 360 horizontal and 3 vertical adjustment installation depth 47 151 mm depth compensation 104 mm two 1 2 female connections hot cold supplies flushing plug MPL UK en GB 04 PL Allure Brilliant 4c indd 64 05 02 18 13 07
