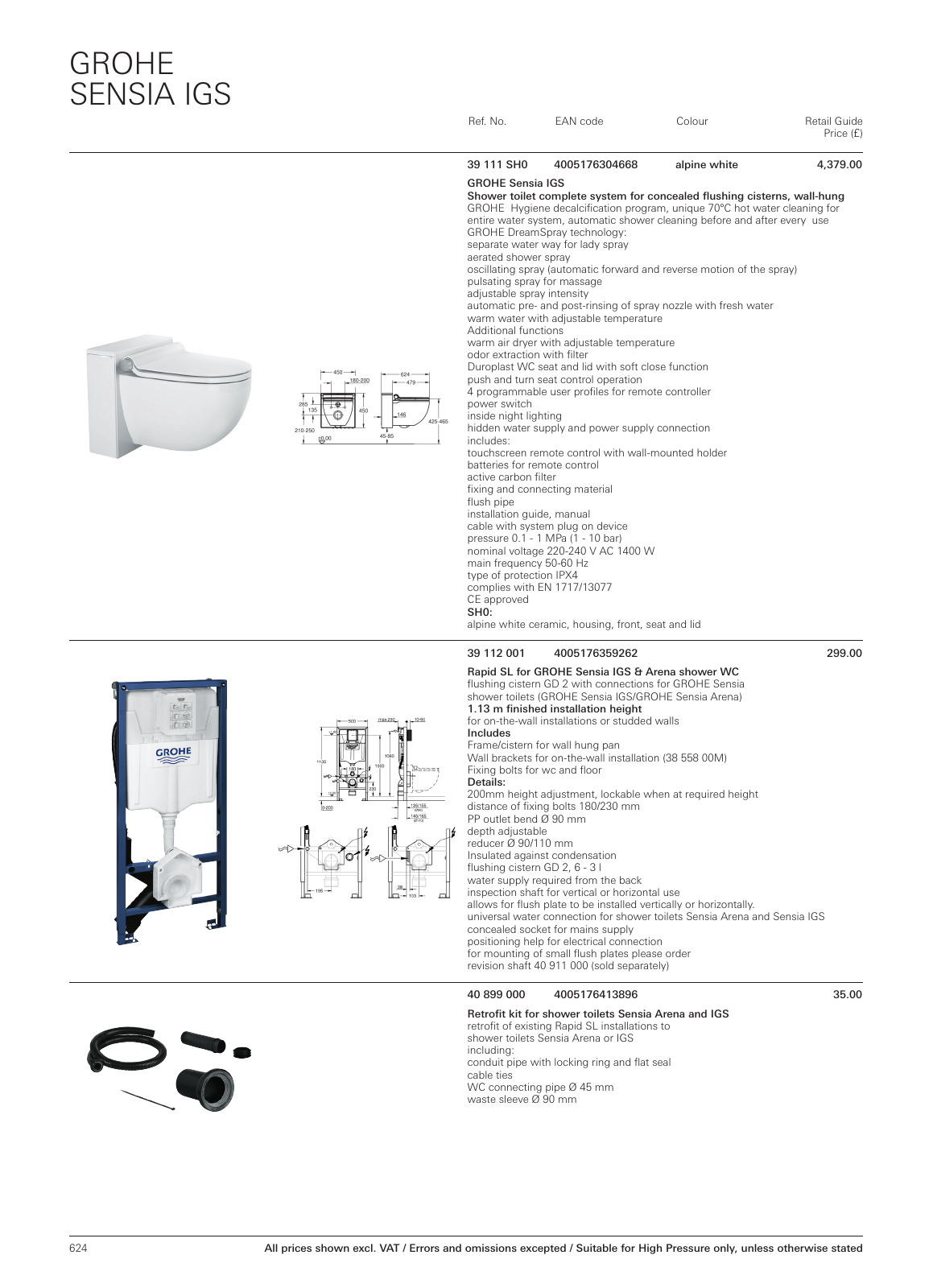

624 GROHE SENSIA IGS Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated 39 111 SH0 4005176304668 alpine white 4 379 00 GROHE Sensia IGS Shower toilet complete system for concealed flushing cisterns wall hung GROHE Hygiene decalcification program unique 70 C hot water cleaning for entire water system automatic shower cleaning before and after every use GROHE DreamSpray technology separate water way for lady spray aerated shower spray oscillating spray automatic forward and reverse motion of the spray pulsating spray for massage adjustable spray intensity automatic pre and post rinsing of spray nozzle with fresh water warm water with adjustable temperature Additional functions warm air dryer with adjustable temperature odor extraction with filter Duroplast WC seat and lid with soft close function push and turn seat control operation 4 programmable user profiles for remote controller power switch inside night lighting hidden water supply and power supply connection includes touchscreen remote control with wall mounted holder batteries for remote control active carbon filter fixing and connecting material flush pipe installation guide manual cable with system plug on device pressure 0 1 1 MPa 1 10 bar nominal voltage 220 240 V AC 1400 W main frequency 50 60 Hz type of protection IPX4 complies with EN 1717 13077 CE approved SH0 alpine white ceramic housing front seat and lid 39 112 001 4005176359262 299 00 Rapid SL for GROHE Sensia IGS Arena shower WC flushing cistern GD 2 with connections for GROHE Sensia shower toilets GROHE Sensia IGS GROHE Sensia Arena 1 13 m finished installation height for on the wall installations or studded walls Includes Frame cistern for wall hung pan Wall brackets for on the wall installation 38 558 00M Fixing bolts for wc and floor Details 200mm height adjustment lockable when at required height distance of fixing bolts 180 230 mm PP outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm Insulated against condensation flushing cistern GD 2 6 3 l water supply required from the back inspection shaft for vertical or horizontal use allows for flush plate to be installed vertically or horizontally universal water connection for shower toilets Sensia Arena and Sensia IGS concealed socket for mains supply positioning help for electrical connection for mounting of small flush plates please order revision shaft 40 911 000 sold separately 40 899 000 4005176413896 35 00 Retrofit kit for shower toilets Sensia Arena and IGS retrofit of existing Rapid SL installations to shower toilets Sensia Arena or IGS including conduit pipe with locking ring and flat seal cable ties WC connecting pipe Ø 45 mm waste sleeve Ø 90 mm MPL UK en GB 103 PL Sensia IS 4c indd 624 06 02 18 10 50
