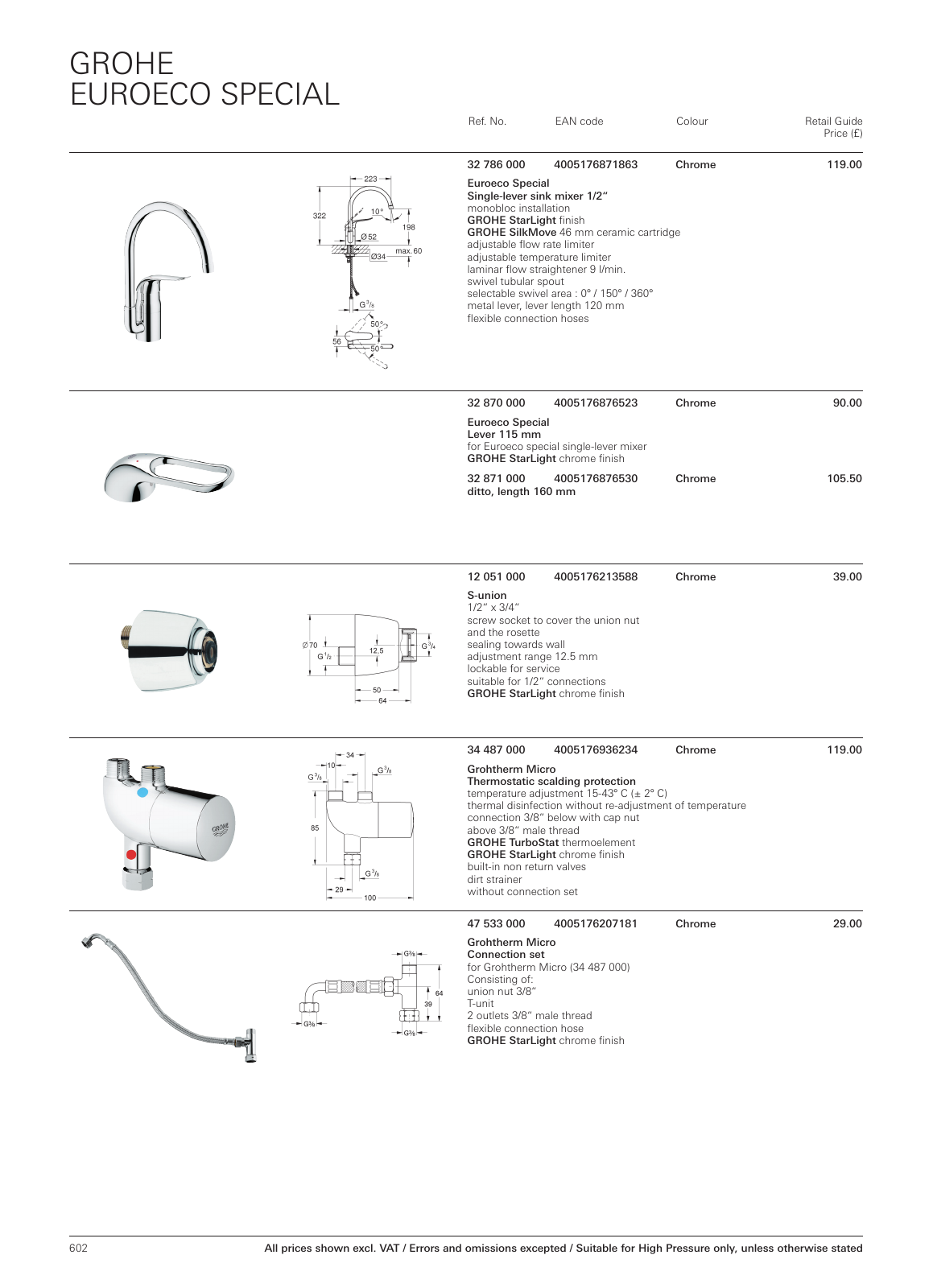

602 GROHE EUROECO SPECIAL Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated 32 786 000 4005176871863 Chrome 119 00 Euroeco Special Single lever sink mixer 1 2 monobloc installation GROHE StarLight finish GROHE SilkMove 46 mm ceramic cartridge adjustable flow rate limiter adjustable temperature limiter laminar flow straightener 9 l min swivel tubular spout selectable swivel area 0 150 360 metal lever lever length 120 mm flexible connection hoses 32 870 000 4005176876523 Chrome 90 00 Euroeco Special Lever 115 mm for Euroeco special single lever mixer GROHE StarLight chrome finish 32 871 000 4005176876530 Chrome 105 50 ditto length 160 mm 12 051 000 4005176213588 Chrome 39 00 S union 1 2 x 3 4 screw socket to cover the union nut and the rosette sealing towards wall adjustment range 12 5 mm lockable for service suitable for 1 2 connections GROHE StarLight chrome finish 34 487 000 4005176936234 Chrome 119 00 Grohtherm Micro Thermostatic scalding protection temperature adjustment 15 43 C 2 C thermal disinfection without re adjustment of temperature connection 3 8 below with cap nut above 3 8 male thread GROHE TurboStat thermoelement GROHE StarLight chrome finish built in non return valves dirt strainer without connection set 47 533 000 4005176207181 Chrome 29 00 Grohtherm Micro Connection set for Grohtherm Micro 34 487 000 Consisting of union nut 3 8 T unit 2 outlets 3 8 male thread flexible connection hose GROHE StarLight chrome finish MPL UK en GB 97 PL Euroeco Special 4c indd 602 06 02 18 10 34
