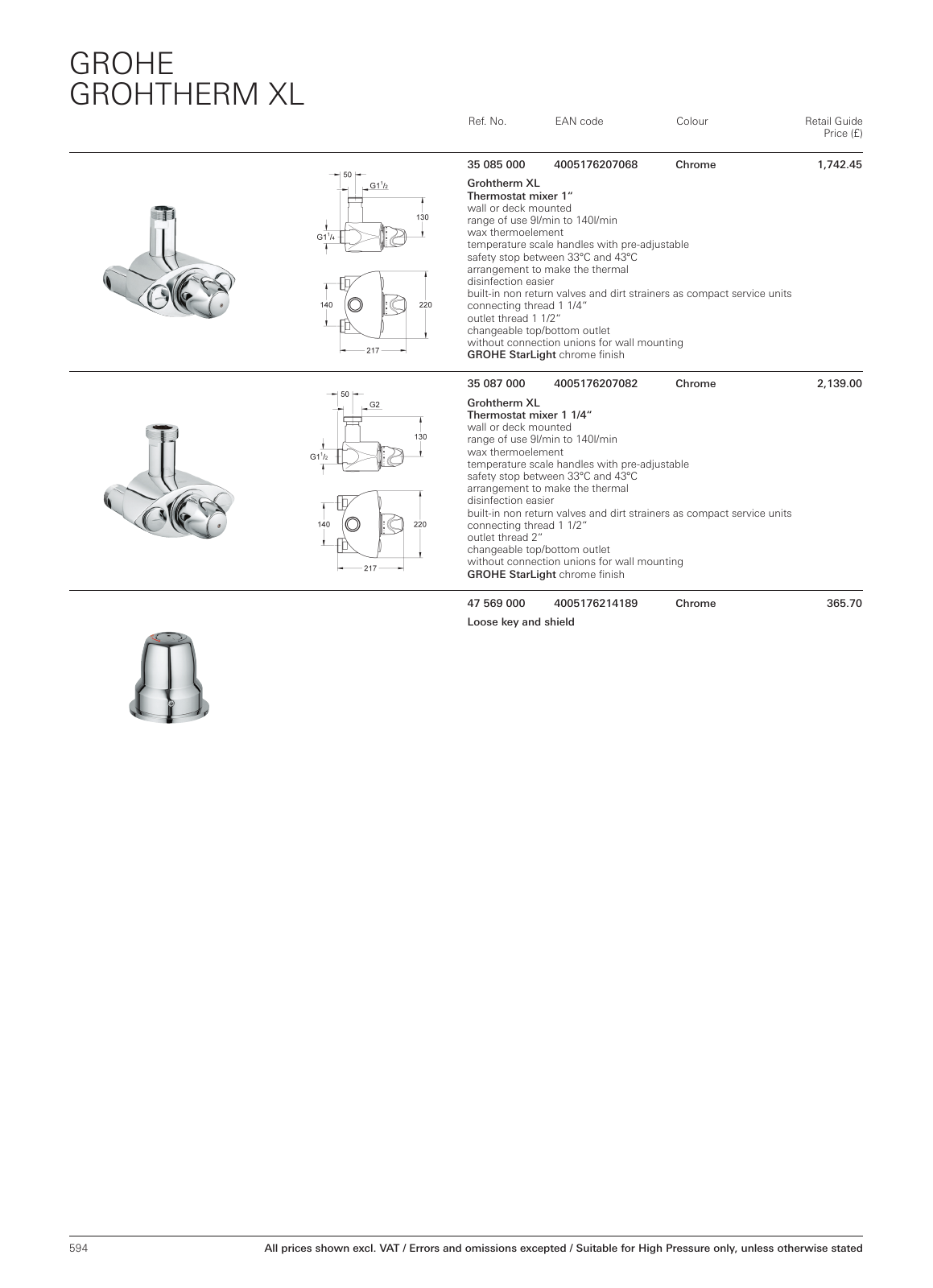

594 GROHE GROHTHERM XL Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated 35 085 000 4005176207068 Chrome 1 742 45 Grohtherm XL Thermostat mixer 1 wall or deck mounted range of use 9l min to 140l min wax thermoelement temperature scale handles with pre adjustable safety stop between 33 C and 43 C arrangement to make the thermal disinfection easier built in non return valves and dirt strainers as compact service units connecting thread 1 1 4 outlet thread 1 1 2 changeable top bottom outlet without connection unions for wall mounting GROHE StarLight chrome finish 35 087 000 4005176207082 Chrome 2 139 00 Grohtherm XL Thermostat mixer 1 1 4 wall or deck mounted range of use 9l min to 140l min wax thermoelement temperature scale handles with pre adjustable safety stop between 33 C and 43 C arrangement to make the thermal disinfection easier built in non return valves and dirt strainers as compact service units connecting thread 1 1 2 outlet thread 2 changeable top bottom outlet without connection unions for wall mounting GROHE StarLight chrome finish 47 569 000 4005176214189 Chrome 365 70 Loose key and shield MPL UK en GB 95 PL Grohtherm XL 4c indd 594 06 02 18 10 27
