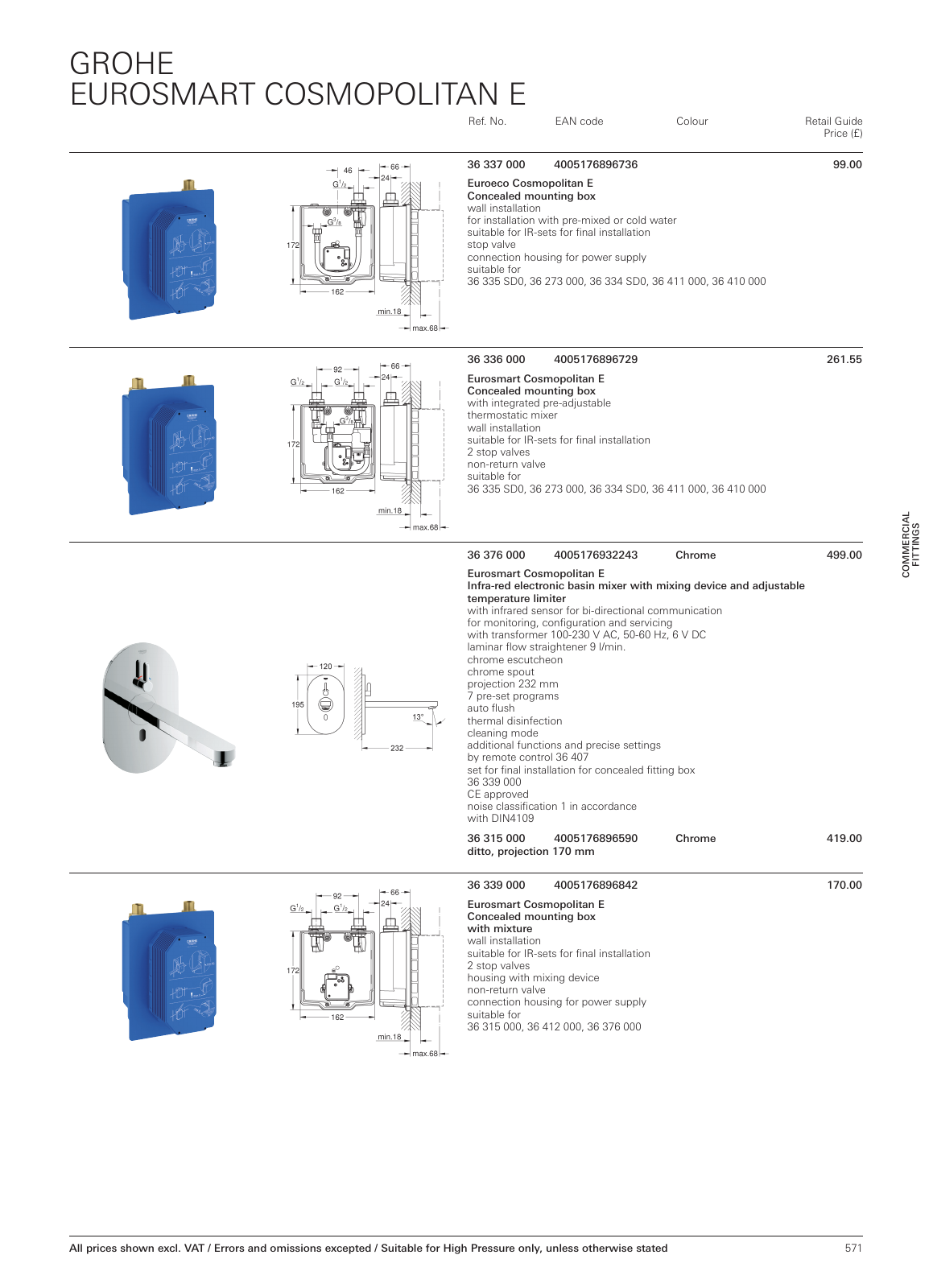

571 Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated GROHE EUROSMART COSMOPOLITAN E 36 337 000 4005176896736 99 00 Euroeco Cosmopolitan E Concealed mounting box wall installation for installation with pre mixed or cold water suitable for IR sets for final installation stop valve connection housing for power supply suitable for 36 335 SD0 36 273 000 36 334 SD0 36 411 000 36 410 000 36 336 000 4005176896729 261 55 Eurosmart Cosmopolitan E Concealed mounting box with integrated pre adjustable thermostatic mixer wall installation suitable for IR sets for final installation 2 stop valves non return valve suitable for 36 335 SD0 36 273 000 36 334 SD0 36 411 000 36 410 000 36 376 000 4005176932243 Chrome 499 00 Eurosmart Cosmopolitan E Infra red electronic basin mixer with mixing device and adjustable temperature limiter with infrared sensor for bi directional communication for monitoring configuration and servicing with transformer 100 230 V AC 50 60 Hz 6 V DC laminar flow straightener 9 l min chrome escutcheon chrome spout projection 232 mm 7 pre set programs auto flush thermal disinfection cleaning mode additional functions and precise settings by remote control 36 407 set for final installation for concealed fitting box 36 339 000 CE approved noise classification 1 in accordance with DIN4109 36 315 000 4005176896590 Chrome 419 00 ditto projection 170 mm 36 339 000 4005176896842 170 00 Eurosmart Cosmopolitan E Concealed mounting box with mixture wall installation suitable for IR sets for final installation 2 stop valves housing with mixing device non return valve connection housing for power supply suitable for 36 315 000 36 412 000 36 376 000 C O M M E R C IA L FI T T IN G S MPL UK en GB 88 PL Eurosmart Cosmopolitan E 4c indd 571 06 02 18 10 15
