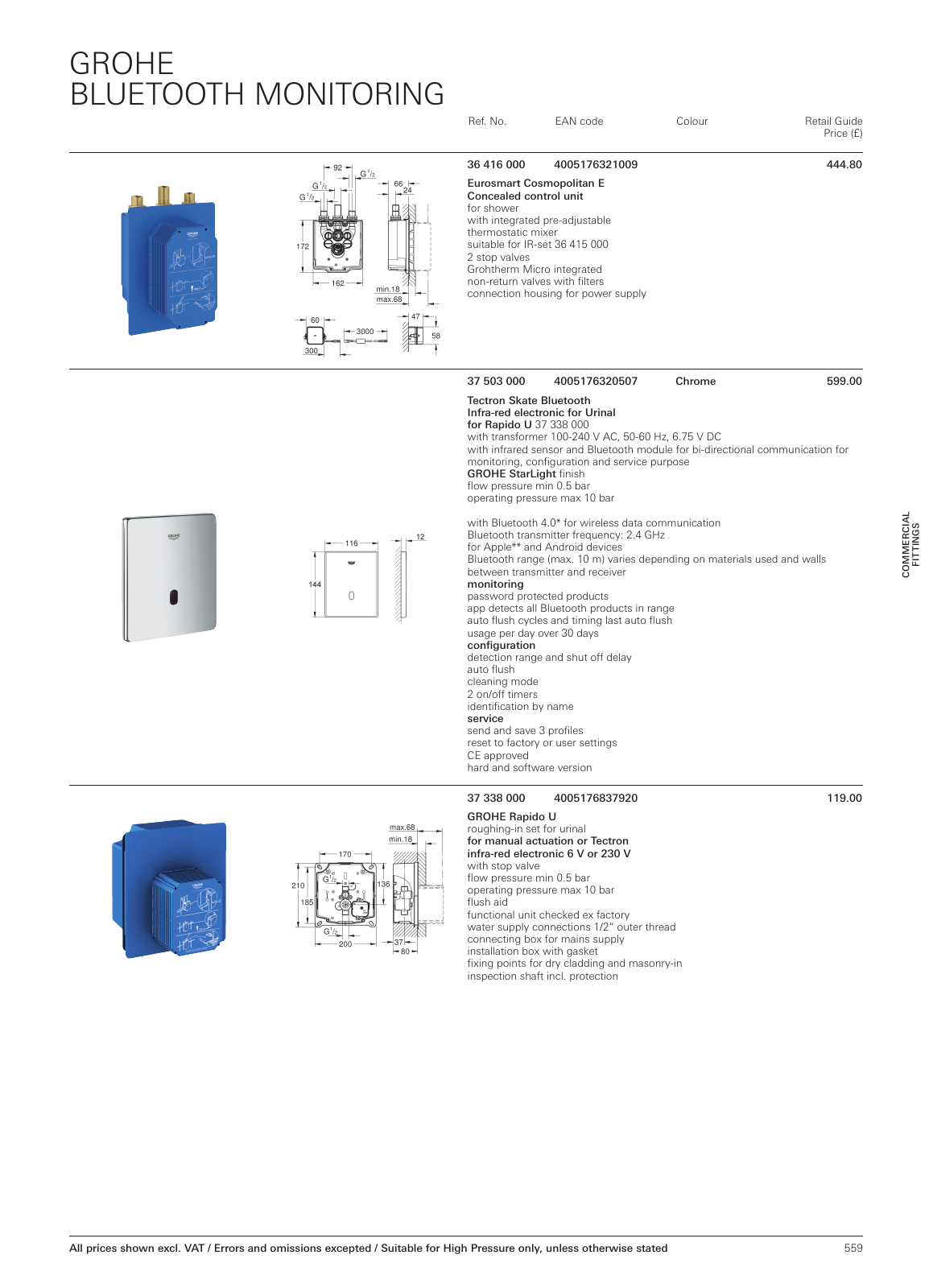

559 C O M M E R C IA L FI T T IN G S Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated GROHE BLUETOOTH MONITORING 36 416 000 4005176321009 444 80 Eurosmart Cosmopolitan E Concealed control unit for shower with integrated pre adjustable thermostatic mixer suitable for IR set 36 415 000 2 stop valves Grohtherm Micro integrated non return valves with filters connection housing for power supply 37 503 000 4005176320507 Chrome 599 00 Tectron Skate Bluetooth Infra red electronic for Urinal for Rapido U 37 338 000 with transformer 100 240 V AC 50 60 Hz 6 75 V DC with infrared sensor and Bluetooth module for bi directional communication for monitoring configuration and service purpose GROHE StarLight finish flow pressure min 0 5 bar operating pressure max 10 bar with Bluetooth 4 0 for wireless data communication Bluetooth transmitter frequency 2 4 GHz for Apple and Android devices Bluetooth range max 10 m varies depending on materials used and walls between transmitter and receiver monitoring password protected products app detects all Bluetooth products in range auto flush cycles and timing last auto flush usage per day over 30 days configuration detection range and shut off delay auto flush cleaning mode 2 on off timers identification by name service send and save 3 profiles reset to factory or user settings CE approved hard and software version 37 338 000 4005176837920 119 00 GROHE Rapido U roughing in set for urinal for manual actuation or Tectron infra red electronic 6 V or 230 V with stop valve flow pressure min 0 5 bar operating pressure max 10 bar flush aid functional unit checked ex factory water supply connections 1 2 outer thread connecting box for mains supply installation box with gasket fixing points for dry cladding and masonry in inspection shaft incl protection MPL UK en GB 86 PL Bluetooth 4c indd 559 06 02 18 10 11
