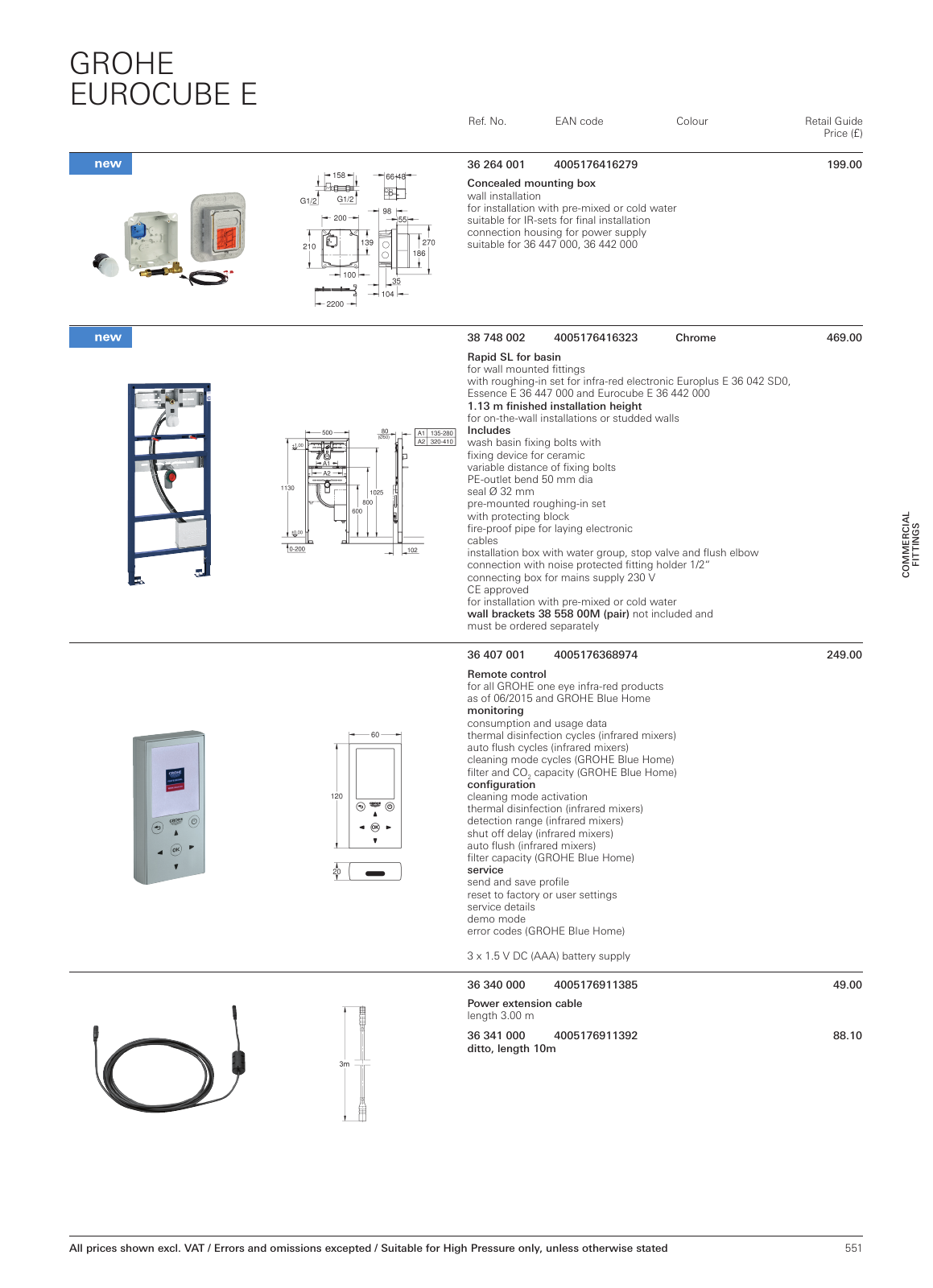

551 Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated GROHE EUROCUBE E 36 264 001 4005176416279 199 00 Concealed mounting box wall installation for installation with pre mixed or cold water suitable for IR sets for final installation connection housing for power supply suitable for 36 447 000 36 442 000 38 748 002 4005176416323 Chrome 469 00 Rapid SL for basin for wall mounted fittings with roughing in set for infra red electronic Europlus E 36 042 SD0 Essence E 36 447 000 and Eurocube E 36 442 000 1 13 m finished installation height for on the wall installations or studded walls Includes wash basin fixing bolts with fixing device for ceramic variable distance of fixing bolts PE outlet bend 50 mm dia seal Ø 32 mm pre mounted roughing in set with protecting block fire proof pipe for laying electronic cables installation box with water group stop valve and flush elbow connection with noise protected fitting holder 1 2 connecting box for mains supply 230 V CE approved for installation with pre mixed or cold water wall brackets 38 558 00M pair not included and must be ordered separately 36 407 001 4005176368974 249 00 Remote control for all GROHE one eye infra red products as of 06 2015 and GROHE Blue Home monitoring consumption and usage data thermal disinfection cycles infrared mixers auto flush cycles infrared mixers cleaning mode cycles GROHE Blue Home filter and CO2 capacity GROHE Blue Home configuration cleaning mode activation thermal disinfection infrared mixers detection range infrared mixers shut off delay infrared mixers auto flush infrared mixers filter capacity GROHE Blue Home service send and save profile reset to factory or user settings service details demo mode error codes GROHE Blue Home 3 x 1 5 V DC AAA battery supply 36 340 000 4005176911385 49 00 Power extension cable length 3 00 m 36 341 000 4005176911392 88 10 ditto length 10m C O M M E R C IA L FI T T IN G S MPL UK en GB 85 PL Eurocube E 4c indd 551 06 02 18 09 50
