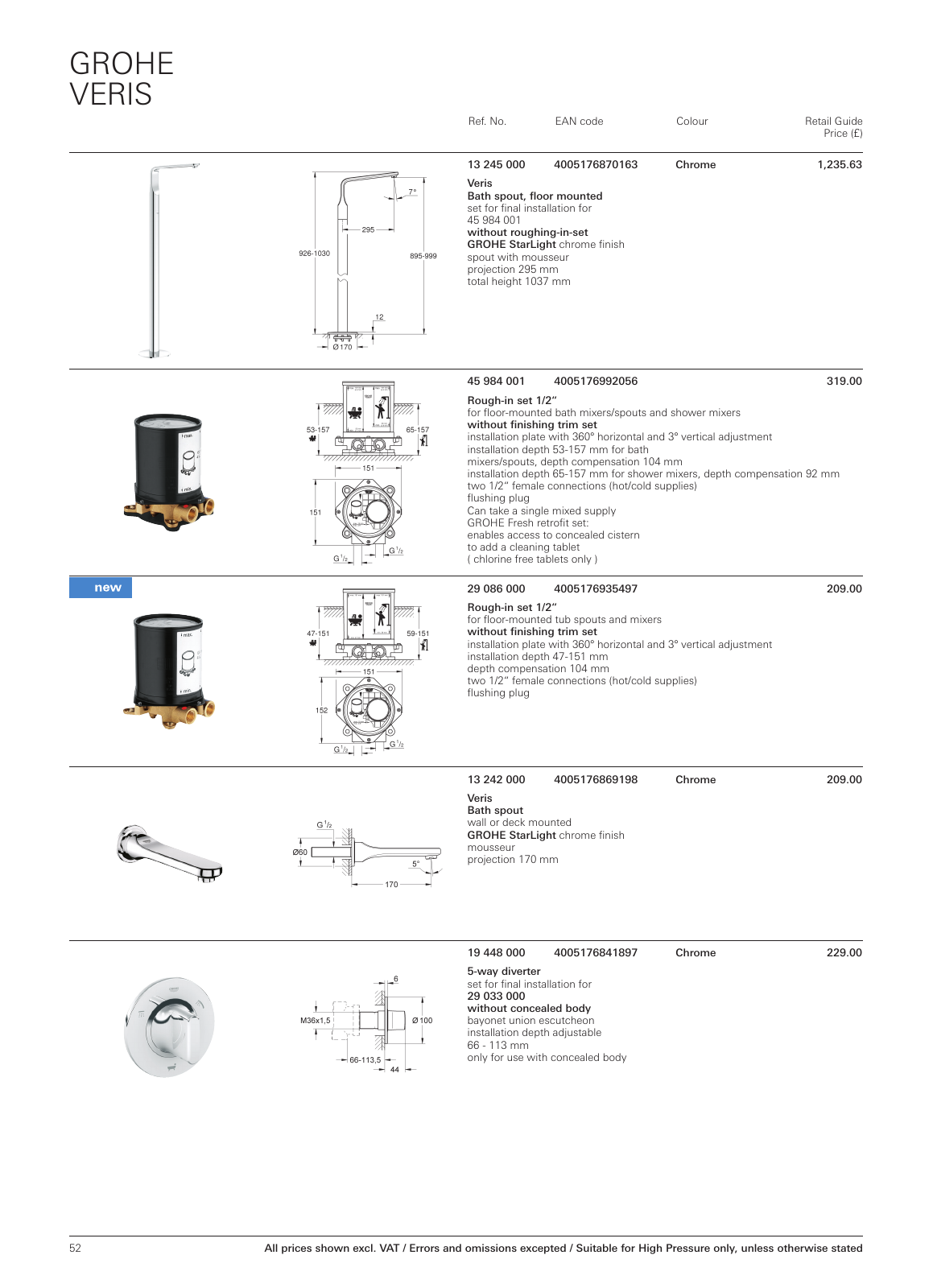

52 GROHE VERIS Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated 13 245 000 4005176870163 Chrome 1 235 63 Veris Bath spout floor mounted set for final installation for 45 984 001 without roughing in set GROHE StarLight chrome finish spout with mousseur projection 295 mm total height 1037 mm 45 984 001 4005176992056 319 00 Rough in set 1 2 for floor mounted bath mixers spouts and shower mixers without finishing trim set installation plate with 360 horizontal and 3 vertical adjustment installation depth 53 157 mm for bath mixers spouts depth compensation 104 mm installation depth 65 157 mm for shower mixers depth compensation 92 mm two 1 2 female connections hot cold supplies flushing plug Can take a single mixed supply GROHE Fresh retrofit set enables access to concealed cistern to add a cleaning tablet chlorine free tablets only 29 086 000 4005176935497 209 00 Rough in set 1 2 for floor mounted tub spouts and mixers without finishing trim set installation plate with 360 horizontal and 3 vertical adjustment installation depth 47 151 mm depth compensation 104 mm two 1 2 female connections hot cold supplies flushing plug 13 242 000 4005176869198 Chrome 209 00 Veris Bath spout wall or deck mounted GROHE StarLight chrome finish mousseur projection 170 mm 19 448 000 4005176841897 Chrome 229 00 5 way diverter set for final installation for 29 033 000 without concealed body bayonet union escutcheon installation depth adjustable 66 113 mm only for use with concealed body MPL UK en GB 03 PL Veris 4c indd 52 05 02 18 13 03
