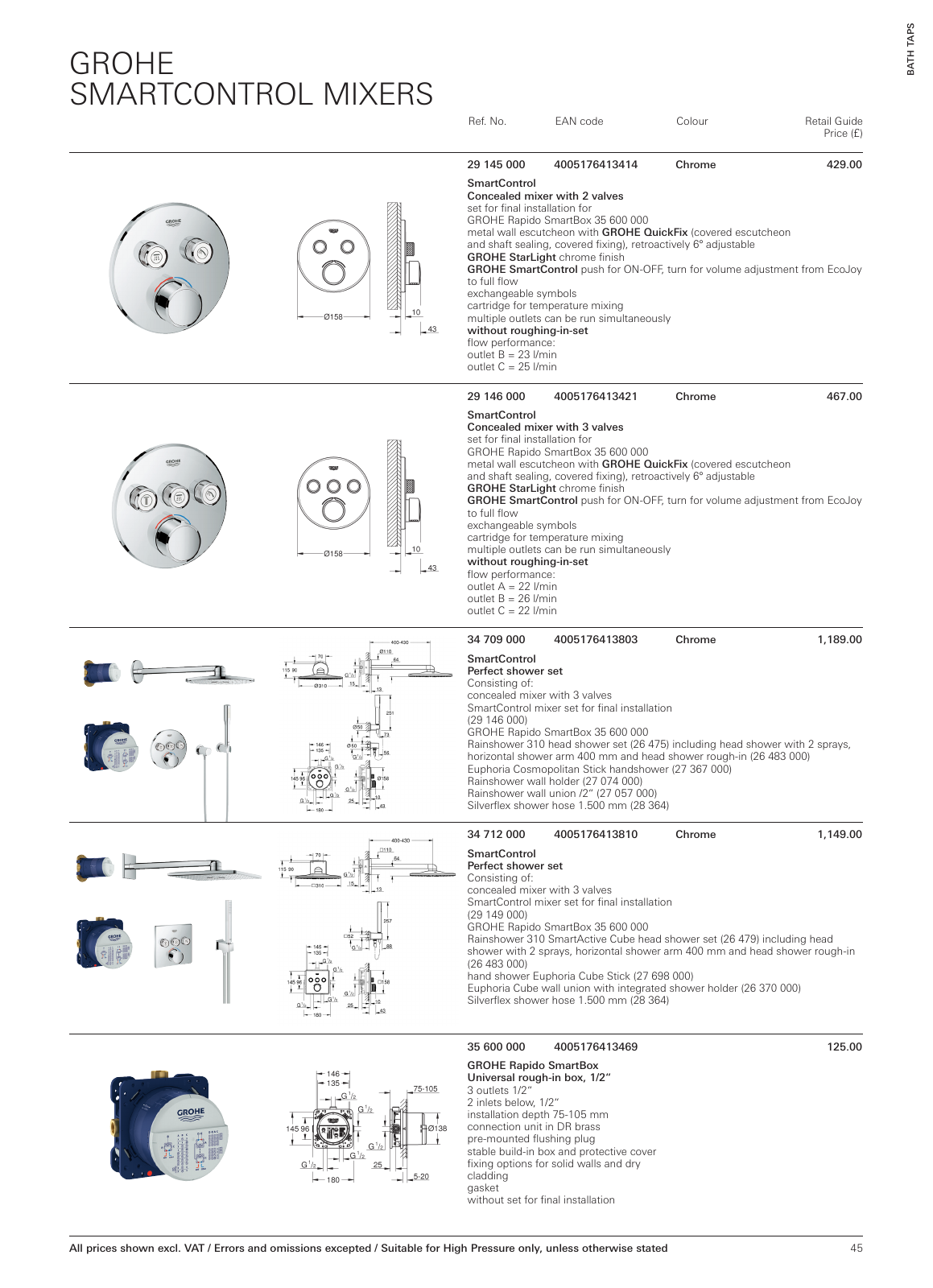

45 B A T H T A P S Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated GROHE SMARTCONTROL MIXERS 29 145 000 4005176413414 Chrome 429 00 SmartControl Concealed mixer with 2 valves set for final installation for GROHE Rapido SmartBox 35 600 000 metal wall escutcheon with GROHE QuickFix covered escutcheon and shaft sealing covered fixing retroactively 6 adjustable GROHE StarLight chrome finish GROHE SmartControl push for ON OFF turn for volume adjustment from EcoJoy to full flow exchangeable symbols cartridge for temperature mixing multiple outlets can be run simultaneously without roughing in set flow performance outlet B 23 l min outlet C 25 l min 29 146 000 4005176413421 Chrome 467 00 SmartControl Concealed mixer with 3 valves set for final installation for GROHE Rapido SmartBox 35 600 000 metal wall escutcheon with GROHE QuickFix covered escutcheon and shaft sealing covered fixing retroactively 6 adjustable GROHE StarLight chrome finish GROHE SmartControl push for ON OFF turn for volume adjustment from EcoJoy to full flow exchangeable symbols cartridge for temperature mixing multiple outlets can be run simultaneously without roughing in set flow performance outlet A 22 l min outlet B 26 l min outlet C 22 l min 34 709 000 4005176413803 Chrome 1 189 00 SmartControl Perfect shower set Consisting of concealed mixer with 3 valves SmartControl mixer set for final installation 29 146 000 GROHE Rapido SmartBox 35 600 000 Rainshower 310 head shower set 26 475 including head shower with 2 sprays horizontal shower arm 400 mm and head shower rough in 26 483 000 Euphoria Cosmopolitan Stick handshower 27 367 000 Rainshower wall holder 27 074 000 Rainshower wall union 2 27 057 000 Silverflex shower hose 1 500 mm 28 364 34 712 000 4005176413810 Chrome 1 149 00 SmartControl Perfect shower set Consisting of concealed mixer with 3 valves SmartControl mixer set for final installation 29 149 000 GROHE Rapido SmartBox 35 600 000 Rainshower 310 SmartActive Cube head shower set 26 479 including head shower with 2 sprays horizontal shower arm 400 mm and head shower rough in 26 483 000 hand shower Euphoria Cube Stick 27 698 000 Euphoria Cube wall union with integrated shower holder 26 370 000 Silverflex shower hose 1 500 mm 28 364 35 600 000 4005176413469 125 00 GROHE Rapido SmartBox Universal rough in box 1 2 3 outlets 1 2 2 inlets below 1 2 installation depth 75 105 mm connection unit in DR brass pre mounted flushing plug stable build in box and protective cover fixing options for solid walls and dry cladding gasket without set for final installation MPL UK en GB 02 PL SmartControl Mixers 4c indd 45 05 02 18 12 57
