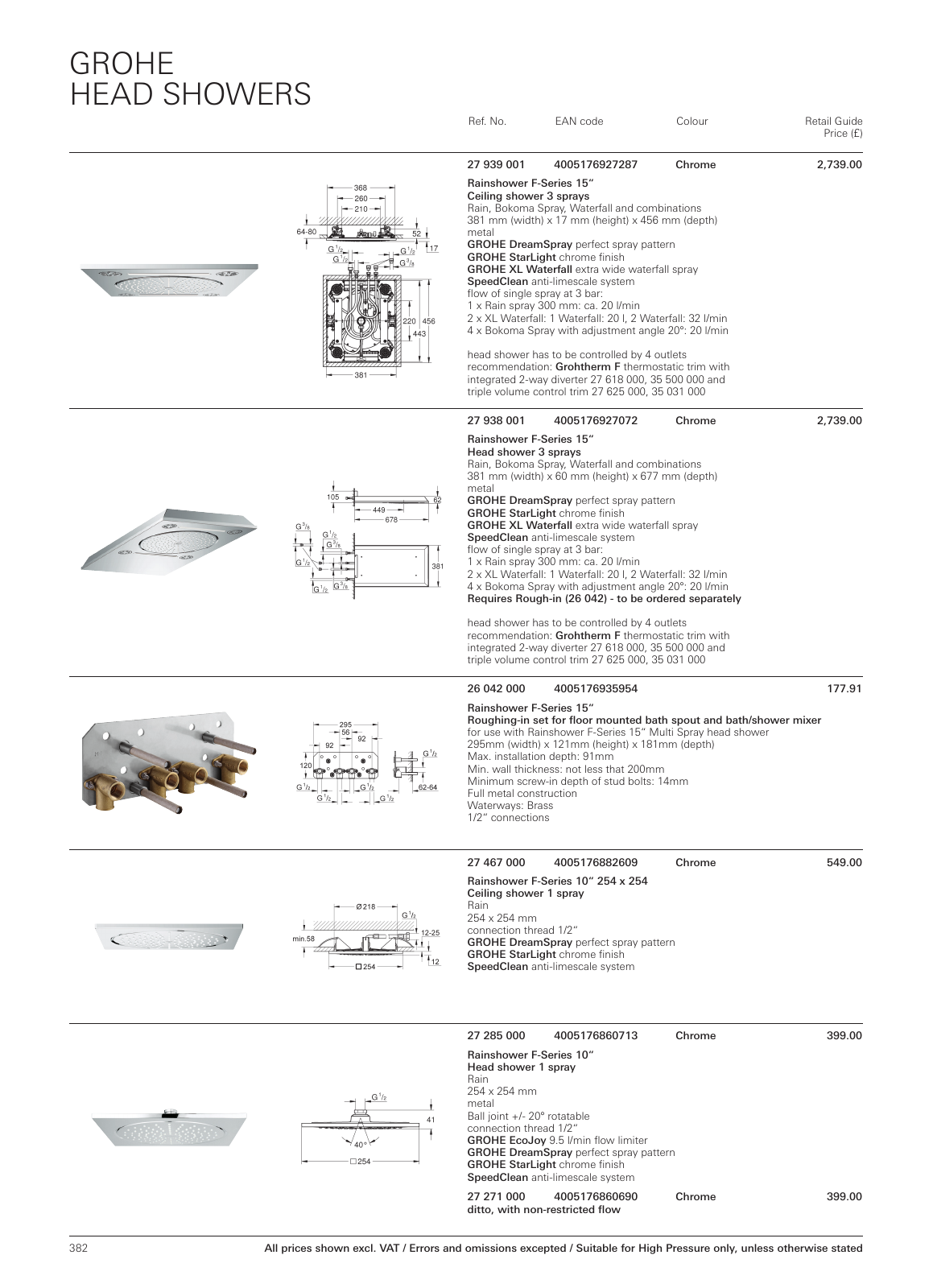

382 GROHE HEAD SHOWERS Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated 27 939 001 4005176927287 Chrome 2 739 00 Rainshower F Series 15 Ceiling shower 3 sprays Rain Bokoma Spray Waterfall and combinations 381 mm width x 17 mm height x 456 mm depth metal GROHE DreamSpray perfect spray pattern GROHE StarLight chrome finish GROHE XL Waterfall extra wide waterfall spray SpeedClean anti limescale system flow of single spray at 3 bar 1 x Rain spray 300 mm ca 20 l min 2 x XL Waterfall 1 Waterfall 20 l 2 Waterfall 32 l min 4 x Bokoma Spray with adjustment angle 20 20 l min head shower has to be controlled by 4 outlets recommendation Grohtherm F thermostatic trim with integrated 2 way diverter 27 618 000 35 500 000 and triple volume control trim 27 625 000 35 031 000 27 938 001 4005176927072 Chrome 2 739 00 Rainshower F Series 15 Head shower 3 sprays Rain Bokoma Spray Waterfall and combinations 381 mm width x 60 mm height x 677 mm depth metal GROHE DreamSpray perfect spray pattern GROHE StarLight chrome finish GROHE XL Waterfall extra wide waterfall spray SpeedClean anti limescale system flow of single spray at 3 bar 1 x Rain spray 300 mm ca 20 l min 2 x XL Waterfall 1 Waterfall 20 l 2 Waterfall 32 l min 4 x Bokoma Spray with adjustment angle 20 20 l min Requires Rough in 26 042 to be ordered separately head shower has to be controlled by 4 outlets recommendation Grohtherm F thermostatic trim with integrated 2 way diverter 27 618 000 35 500 000 and triple volume control trim 27 625 000 35 031 000 26 042 000 4005176935954 177 91 Rainshower F Series 15 Roughing in set for floor mounted bath spout and bath shower mixer for use with Rainshower F Series 15 Multi Spray head shower 295mm width x 121mm height x 181mm depth Max installation depth 91mm Min wall thickness not less that 200mm Minimum screw in depth of stud bolts 14mm Full metal construction Waterways Brass 1 2 connections 27 467 000 4005176882609 Chrome 549 00 Rainshower F Series 10 254 x 254 Ceiling shower 1 spray Rain 254 x 254 mm connection thread 1 2 GROHE DreamSpray perfect spray pattern GROHE StarLight chrome finish SpeedClean anti limescale system 27 285 000 4005176860713 Chrome 399 00 Rainshower F Series 10 Head shower 1 spray Rain 254 x 254 mm metal Ball joint 20 rotatable connection thread 1 2 GROHE EcoJoy 9 5 l min flow limiter GROHE DreamSpray perfect spray pattern GROHE StarLight chrome finish SpeedClean anti limescale system 27 271 000 4005176860690 Chrome 399 00 ditto with non restricted flow MPL UK en GB 50 PL Headshowers 4c indd 382 07 02 18 11 11
