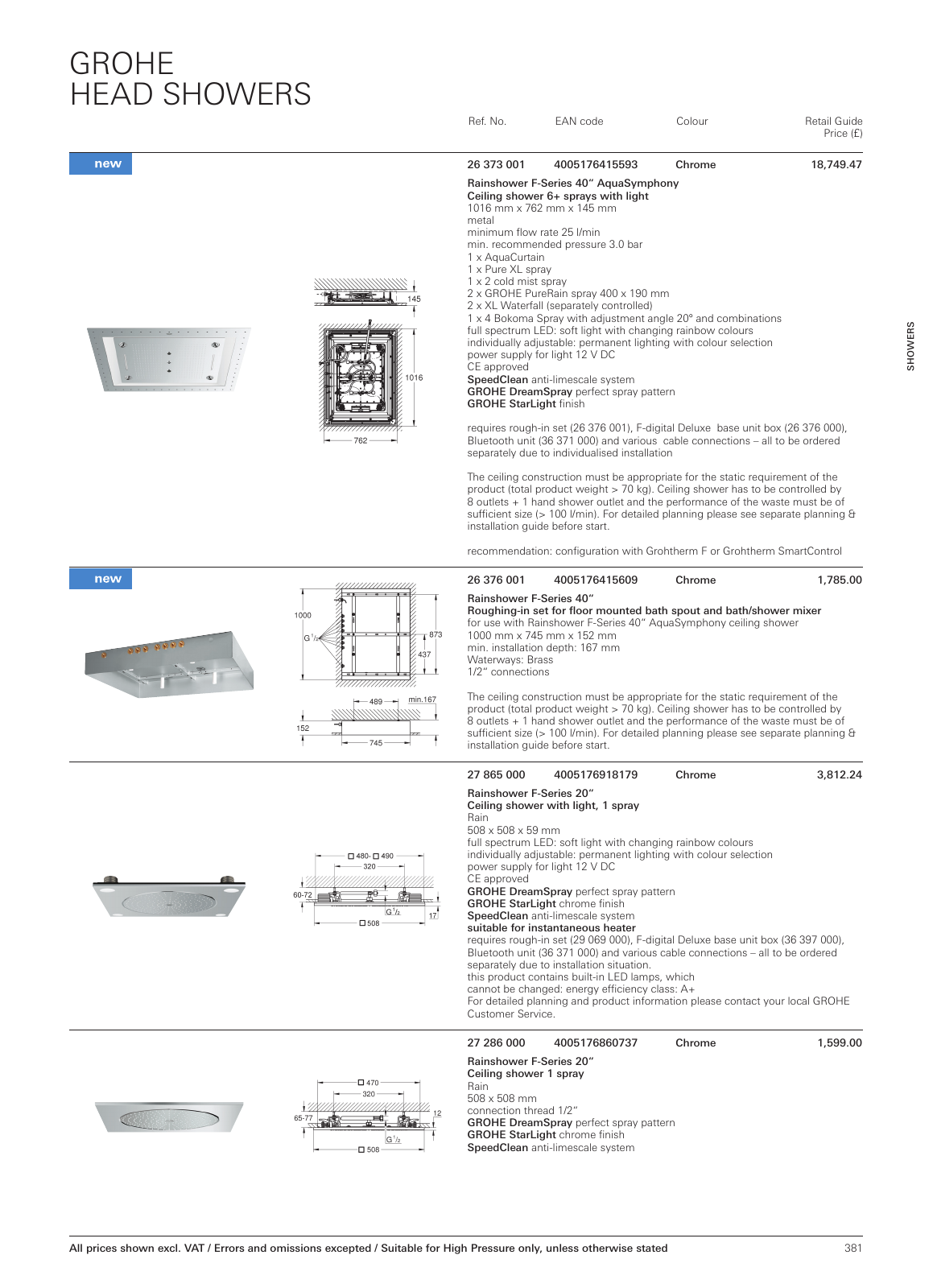

381 S H O W E R S Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated GROHE HEAD SHOWERS 26 373 001 4005176415593 Chrome 18 749 47 Rainshower F Series 40 AquaSymphony Ceiling shower 6 sprays with light 1016 mm x 762 mm x 145 mm metal minimum flow rate 25 l min min recommended pressure 3 0 bar 1 x AquaCurtain 1 x Pure XL spray 1 x 2 cold mist spray 2 x GROHE PureRain spray 400 x 190 mm 2 x XL Waterfall separately controlled 1 x 4 Bokoma Spray with adjustment angle 20 and combinations full spectrum LED soft light with changing rainbow colours individually adjustable permanent lighting with colour selection power supply for light 12 V DC CE approved SpeedClean anti limescale system GROHE DreamSpray perfect spray pattern GROHE StarLight finish requires rough in set 26 376 001 F digital Deluxe base unit box 26 376 000 Bluetooth unit 36 371 000 and various cable connections all to be ordered separately due to individualised installation The ceiling construction must be appropriate for the static requirement of the product total product weight 70 kg Ceiling shower has to be controlled by 8 outlets 1 hand shower outlet and the performance of the waste must be of sufficient size 100 l min For detailed planning please see separate planning installation guide before start recommendation configuration with Grohtherm F or Grohtherm SmartControl 26 376 001 4005176415609 Chrome 1 785 00 Rainshower F Series 40 Roughing in set for floor mounted bath spout and bath shower mixer for use with Rainshower F Series 40 AquaSymphony ceiling shower 1000 mm x 745 mm x 152 mm min installation depth 167 mm Waterways Brass 1 2 connections The ceiling construction must be appropriate for the static requirement of the product total product weight 70 kg Ceiling shower has to be controlled by 8 outlets 1 hand shower outlet and the performance of the waste must be of sufficient size 100 l min For detailed planning please see separate planning installation guide before start 27 865 000 4005176918179 Chrome 3 812 24 Rainshower F Series 20 Ceiling shower with light 1 spray Rain 508 x 508 x 59 mm full spectrum LED soft light with changing rainbow colours individually adjustable permanent lighting with colour selection power supply for light 12 V DC CE approved GROHE DreamSpray perfect spray pattern GROHE StarLight chrome finish SpeedClean anti limescale system suitable for instantaneous heater requires rough in set 29 069 000 F digital Deluxe base unit box 36 397 000 Bluetooth unit 36 371 000 and various cable connections all to be ordered separately due to installation situation this product contains built in LED lamps which cannot be changed energy efficiency class A For detailed planning and product information please contact your local GROHE Customer Service 27 286 000 4005176860737 Chrome 1 599 00 Rainshower F Series 20 Ceiling shower 1 spray Rain 508 x 508 mm connection thread 1 2 GROHE DreamSpray perfect spray pattern GROHE StarLight chrome finish SpeedClean anti limescale system MPL UK en GB 50 PL Headshowers 4c indd 381 07 02 18 11 11
