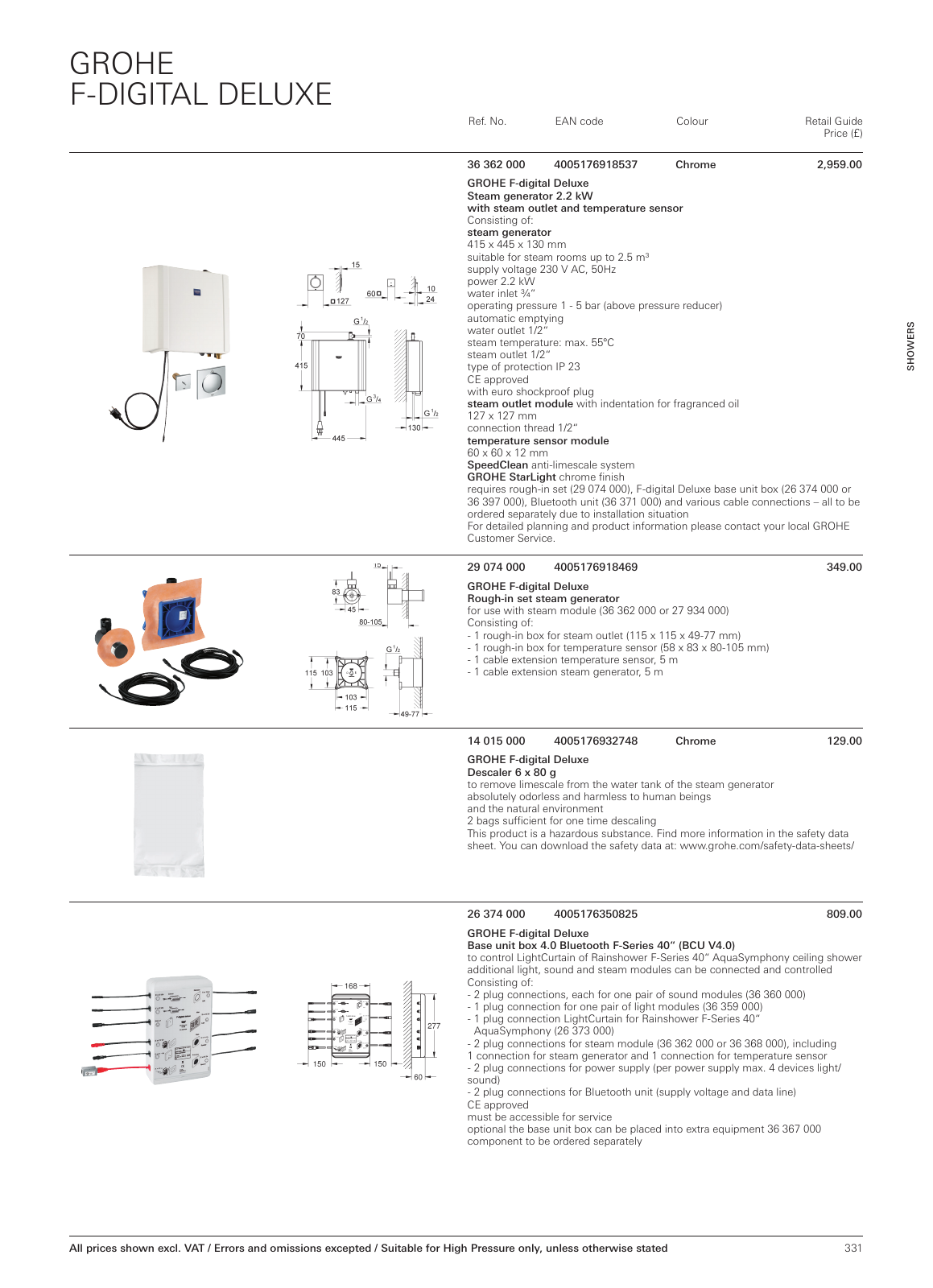

331 Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated GROHE F DIGITAL DELUXE 36 362 000 4005176918537 Chrome 2 959 00 GROHE F digital Deluxe Steam generator 2 2 kW with steam outlet and temperature sensor Consisting of steam generator 415 x 445 x 130 mm suitable for steam rooms up to 2 5 m supply voltage 230 V AC 50Hz power 2 2 kW water inlet operating pressure 1 5 bar above pressure reducer automatic emptying water outlet 1 2 steam temperature max 55 C steam outlet 1 2 type of protection IP 23 CE approved with euro shockproof plug steam outlet module with indentation for fragranced oil 127 x 127 mm connection thread 1 2 temperature sensor module 60 x 60 x 12 mm SpeedClean anti limescale system GROHE StarLight chrome finish requires rough in set 29 074 000 F digital Deluxe base unit box 26 374 000 or 36 397 000 Bluetooth unit 36 371 000 and various cable connections all to be ordered separately due to installation situation For detailed planning and product information please contact your local GROHE Customer Service 29 074 000 4005176918469 349 00 GROHE F digital Deluxe Rough in set steam generator for use with steam module 36 362 000 or 27 934 000 Consisting of 1 rough in box for steam outlet 115 x 115 x 49 77 mm 1 rough in box for temperature sensor 58 x 83 x 80 105 mm 1 cable extension temperature sensor 5 m 1 cable extension steam generator 5 m 14 015 000 4005176932748 Chrome 129 00 GROHE F digital Deluxe Descaler 6 x 80 g to remove limescale from the water tank of the steam generator absolutely odorless and harmless to human beings and the natural environment 2 bags sufficient for one time descaling This product is a hazardous substance Find more information in the safety data sheet You can download the safety data at www grohe com safety data sheets 26 374 000 4005176350825 809 00 GROHE F digital Deluxe Base unit box 4 0 Bluetooth F Series 40 BCU V4 0 to control LightCurtain of Rainshower F Series 40 AquaSymphony ceiling shower additional light sound and steam modules can be connected and controlled Consisting of 2 plug connections each for one pair of sound modules 36 360 000 1 plug connection for one pair of light modules 36 359 000 1 plug connection LightCurtain for Rainshower F Series 40 AquaSymphony 26 373 000 2 plug connections for steam module 36 362 000 or 36 368 000 including 1 connection for steam generator and 1 connection for temperature sensor 2 plug connections for power supply per power supply max 4 devices light sound 2 plug connections for Bluetooth unit supply voltage and data line CE approved must be accessible for service optional the base unit box can be placed into extra equipment 36 367 000 component to be ordered separately S H O W E R S MPL UK en GB 41 PL F digital deluxe 4c indd 331 05 02 18 15 52
