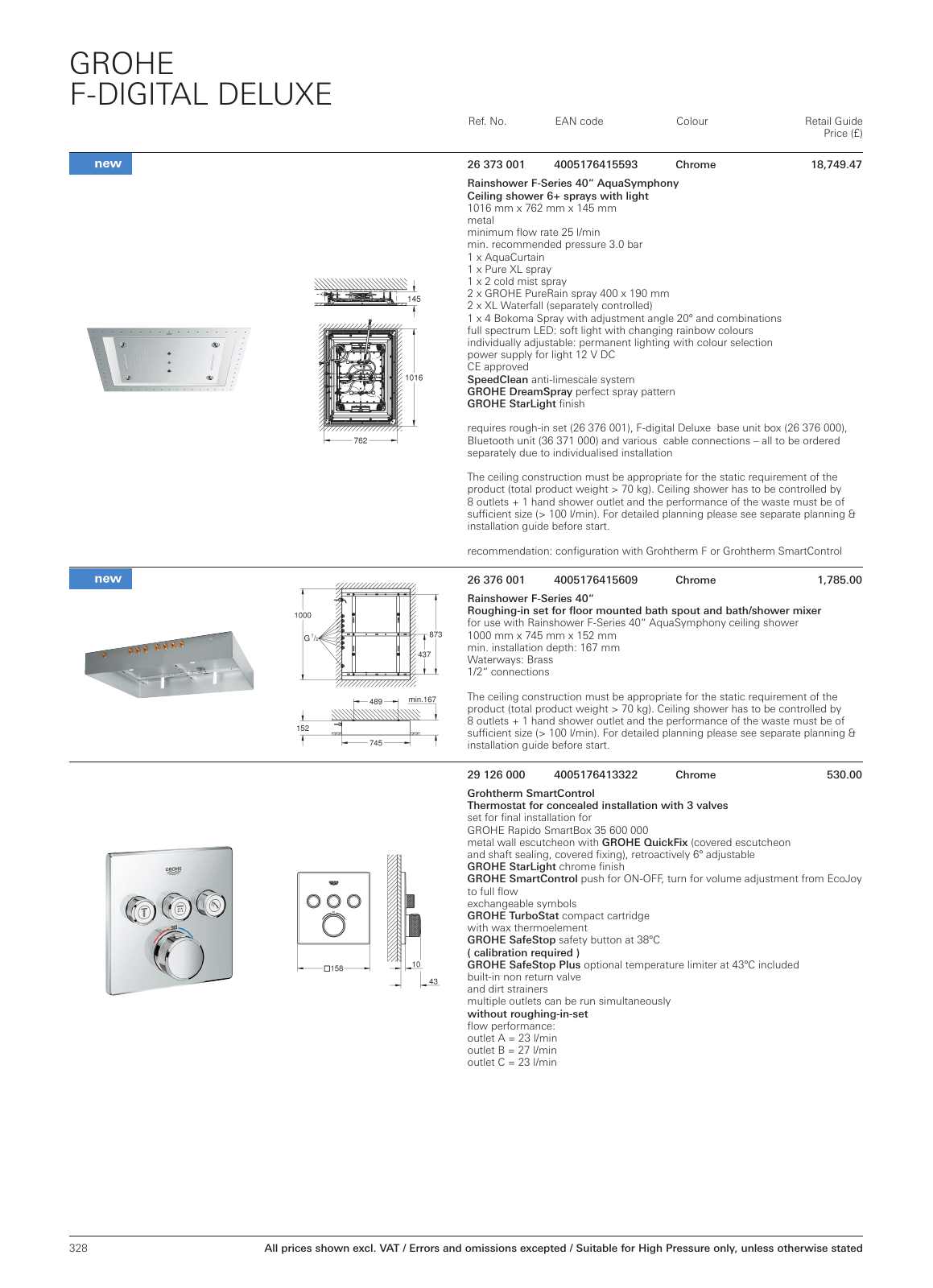

328 GROHE F DIGITAL DELUXE Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated 26 373 001 4005176415593 Chrome 18 749 47 Rainshower F Series 40 AquaSymphony Ceiling shower 6 sprays with light 1016 mm x 762 mm x 145 mm metal minimum flow rate 25 l min min recommended pressure 3 0 bar 1 x AquaCurtain 1 x Pure XL spray 1 x 2 cold mist spray 2 x GROHE PureRain spray 400 x 190 mm 2 x XL Waterfall separately controlled 1 x 4 Bokoma Spray with adjustment angle 20 and combinations full spectrum LED soft light with changing rainbow colours individually adjustable permanent lighting with colour selection power supply for light 12 V DC CE approved SpeedClean anti limescale system GROHE DreamSpray perfect spray pattern GROHE StarLight finish requires rough in set 26 376 001 F digital Deluxe base unit box 26 376 000 Bluetooth unit 36 371 000 and various cable connections all to be ordered separately due to individualised installation The ceiling construction must be appropriate for the static requirement of the product total product weight 70 kg Ceiling shower has to be controlled by 8 outlets 1 hand shower outlet and the performance of the waste must be of sufficient size 100 l min For detailed planning please see separate planning installation guide before start recommendation configuration with Grohtherm F or Grohtherm SmartControl 26 376 001 4005176415609 Chrome 1 785 00 Rainshower F Series 40 Roughing in set for floor mounted bath spout and bath shower mixer for use with Rainshower F Series 40 AquaSymphony ceiling shower 1000 mm x 745 mm x 152 mm min installation depth 167 mm Waterways Brass 1 2 connections The ceiling construction must be appropriate for the static requirement of the product total product weight 70 kg Ceiling shower has to be controlled by 8 outlets 1 hand shower outlet and the performance of the waste must be of sufficient size 100 l min For detailed planning please see separate planning installation guide before start 29 126 000 4005176413322 Chrome 530 00 Grohtherm SmartControl Thermostat for concealed installation with 3 valves set for final installation for GROHE Rapido SmartBox 35 600 000 metal wall escutcheon with GROHE QuickFix covered escutcheon and shaft sealing covered fixing retroactively 6 adjustable GROHE StarLight chrome finish GROHE SmartControl push for ON OFF turn for volume adjustment from EcoJoy to full flow exchangeable symbols GROHE TurboStat compact cartridge with wax thermoelement GROHE SafeStop safety button at 38 C calibration required GROHE SafeStop Plus optional temperature limiter at 43 C included built in non return valve and dirt strainers multiple outlets can be run simultaneously without roughing in set flow performance outlet A 23 l min outlet B 27 l min outlet C 23 l min MPL UK en GB 41 PL F digital deluxe 4c indd 328 05 02 18 15 52
