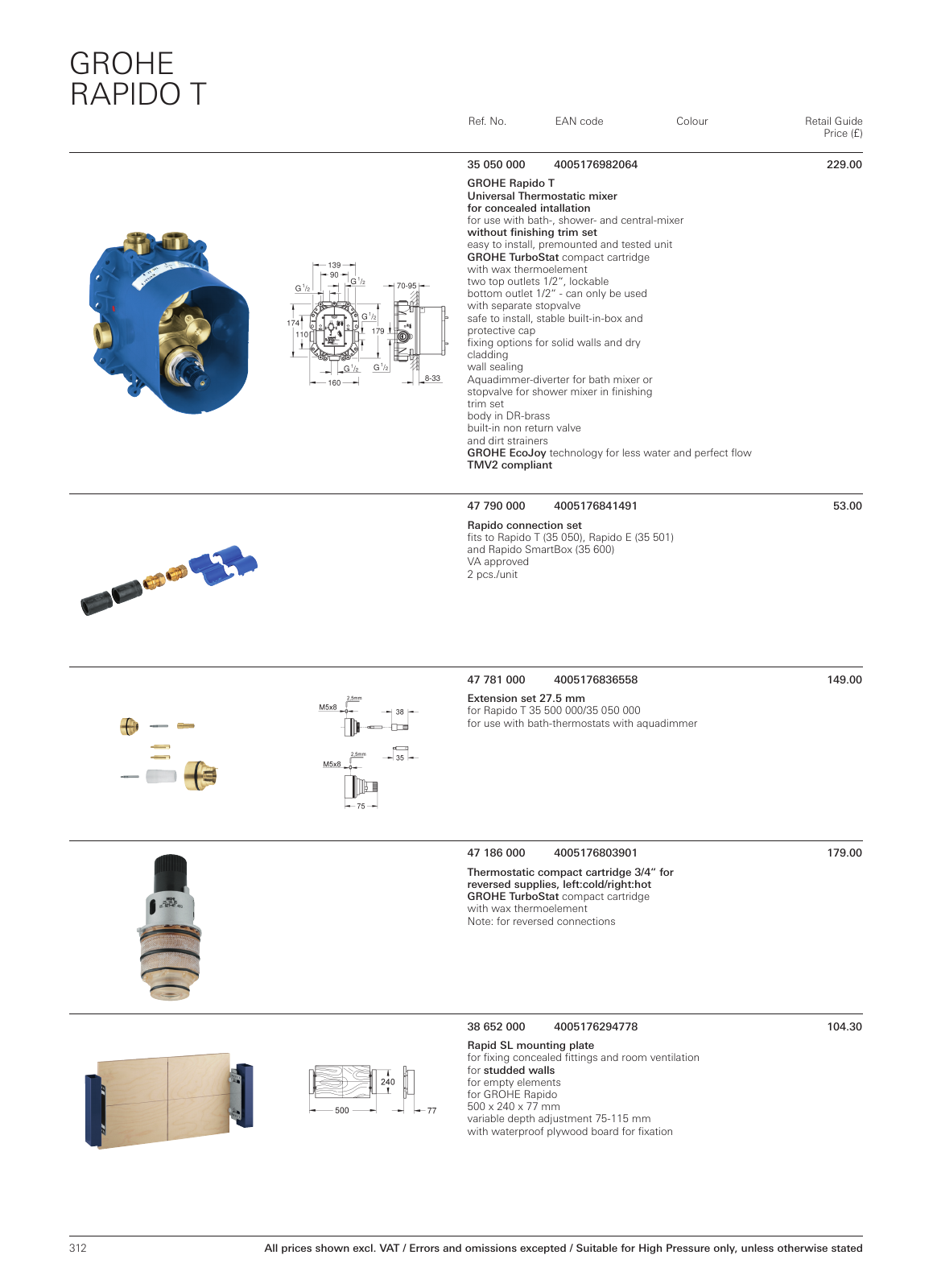

312 GROHE RAPIDO T Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated 35 050 000 4005176982064 229 00 GROHE Rapido T Universal Thermostatic mixer for concealed intallation for use with bath shower and central mixer without finishing trim set easy to install premounted and tested unit GROHE TurboStat compact cartridge with wax thermoelement two top outlets 1 2 lockable bottom outlet 1 2 can only be used with separate stopvalve safe to install stable built in box and protective cap fixing options for solid walls and dry cladding wall sealing Aquadimmer diverter for bath mixer or stopvalve for shower mixer in finishing trim set body in DR brass built in non return valve and dirt strainers GROHE EcoJoy technology for less water and perfect flow TMV2 compliant 47 790 000 4005176841491 53 00 Rapido connection set fits to Rapido T 35 050 Rapido E 35 501 and Rapido SmartBox 35 600 VA approved 2 pcs unit 47 781 000 4005176836558 149 00 Extension set 27 5 mm for Rapido T 35 500 000 35 050 000 for use with bath thermostats with aquadimmer 47 186 000 4005176803901 179 00 Thermostatic compact cartridge 3 4 for reversed supplies left cold right hot GROHE TurboStat compact cartridge with wax thermoelement Note for reversed connections 38 652 000 4005176294778 104 30 Rapid SL mounting plate for fixing concealed fittings and room ventilation for studded walls for empty elements for GROHE Rapido 500 x 240 x 77 mm variable depth adjustment 75 115 mm with waterproof plywood board for fixation MPL UK en GB 38 PL Rapido T 4c indd 312 05 02 18 15 42
