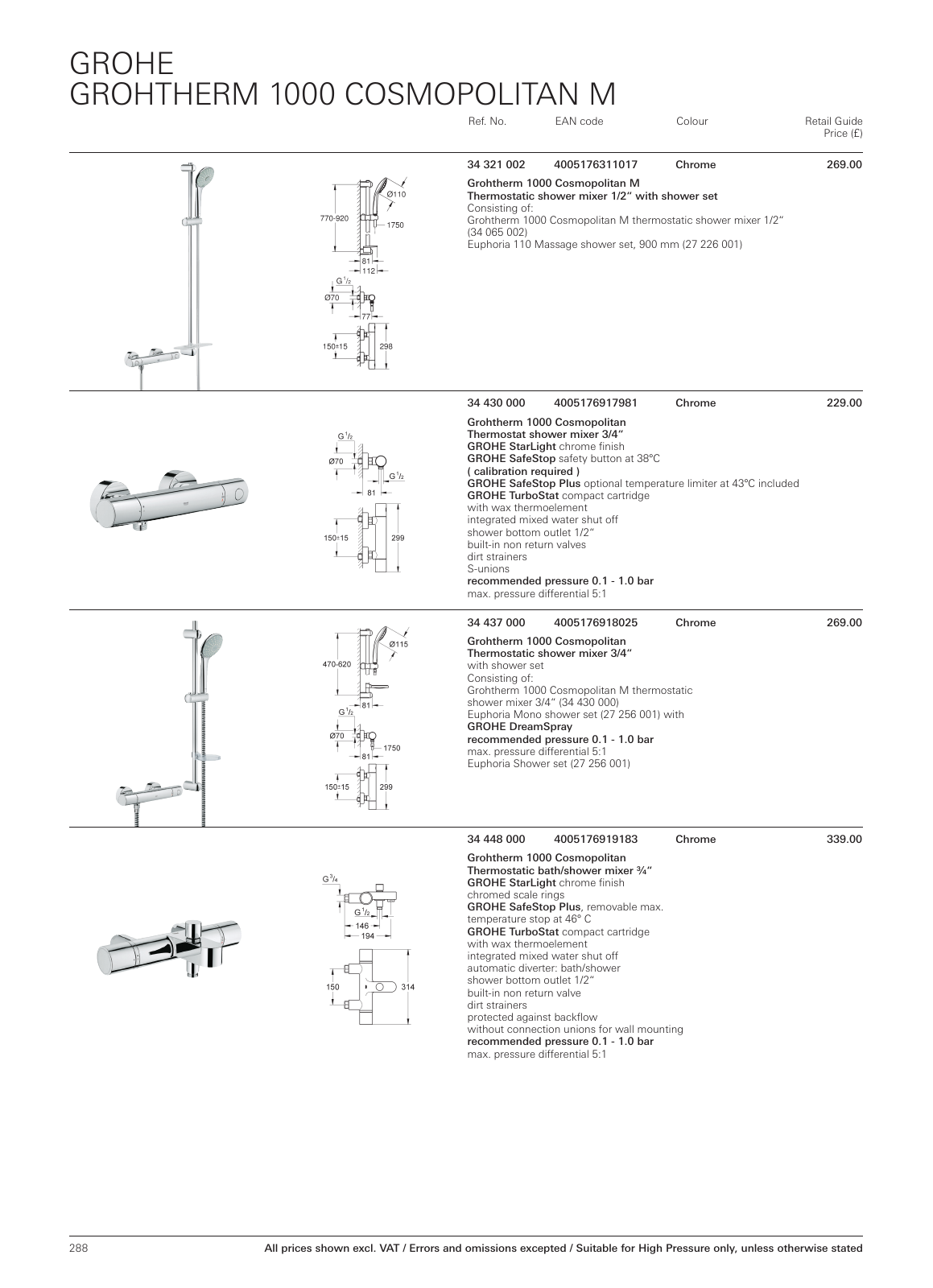

288 GROHE GROHTHERM 1000 COSMOPOLITAN M Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated 34 321 002 4005176311017 Chrome 269 00 Grohtherm 1000 Cosmopolitan M Thermostatic shower mixer 1 2 with shower set Consisting of Grohtherm 1000 Cosmopolitan M thermostatic shower mixer 1 2 34 065 002 Euphoria 110 Massage shower set 900 mm 27 226 001 34 430 000 4005176917981 Chrome 229 00 Grohtherm 1000 Cosmopolitan Thermostat shower mixer 3 4 GROHE StarLight chrome finish GROHE SafeStop safety button at 38 C calibration required GROHE SafeStop Plus optional temperature limiter at 43 C included GROHE TurboStat compact cartridge with wax thermoelement integrated mixed water shut off shower bottom outlet 1 2 built in non return valves dirt strainers S unions recommended pressure 0 1 1 0 bar max pressure differential 5 1 34 437 000 4005176918025 Chrome 269 00 Grohtherm 1000 Cosmopolitan Thermostatic shower mixer 3 4 with shower set Consisting of Grohtherm 1000 Cosmopolitan M thermostatic shower mixer 3 4 34 430 000 Euphoria Mono shower set 27 256 001 with GROHE DreamSpray recommended pressure 0 1 1 0 bar max pressure differential 5 1 Euphoria Shower set 27 256 001 34 448 000 4005176919183 Chrome 339 00 Grohtherm 1000 Cosmopolitan Thermostatic bath shower mixer GROHE StarLight chrome finish chromed scale rings GROHE SafeStop Plus removable max temperature stop at 46 C GROHE TurboStat compact cartridge with wax thermoelement integrated mixed water shut off automatic diverter bath shower shower bottom outlet 1 2 built in non return valve dirt strainers protected against backflow without connection unions for wall mounting recommended pressure 0 1 1 0 bar max pressure differential 5 1 MPL UK en GB 34 PL Grohtherm 1000 Cosmopolitan M 4c indd 288 05 02 18 15 27
