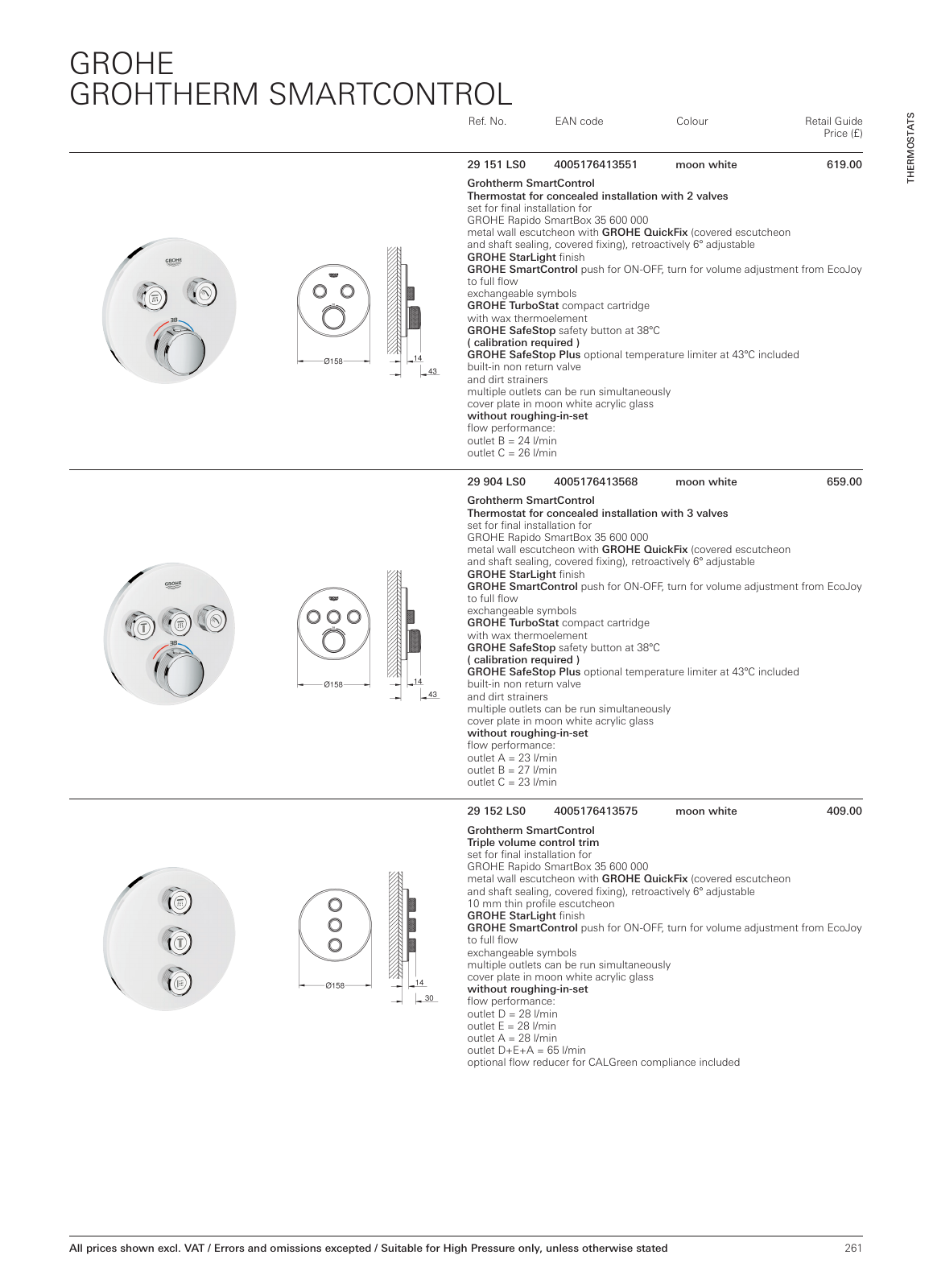

261 T H E R M O S TA T SRef No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated GROHE GROHTHERM SMARTCONTROL 29 151 LS0 4005176413551 moon white 619 00 Grohtherm SmartControl Thermostat for concealed installation with 2 valves set for final installation for GROHE Rapido SmartBox 35 600 000 metal wall escutcheon with GROHE QuickFix covered escutcheon and shaft sealing covered fixing retroactively 6 adjustable GROHE StarLight finish GROHE SmartControl push for ON OFF turn for volume adjustment from EcoJoy to full flow exchangeable symbols GROHE TurboStat compact cartridge with wax thermoelement GROHE SafeStop safety button at 38 C calibration required GROHE SafeStop Plus optional temperature limiter at 43 C included built in non return valve and dirt strainers multiple outlets can be run simultaneously cover plate in moon white acrylic glass without roughing in set flow performance outlet B 24 l min outlet C 26 l min 29 904 LS0 4005176413568 moon white 659 00 Grohtherm SmartControl Thermostat for concealed installation with 3 valves set for final installation for GROHE Rapido SmartBox 35 600 000 metal wall escutcheon with GROHE QuickFix covered escutcheon and shaft sealing covered fixing retroactively 6 adjustable GROHE StarLight finish GROHE SmartControl push for ON OFF turn for volume adjustment from EcoJoy to full flow exchangeable symbols GROHE TurboStat compact cartridge with wax thermoelement GROHE SafeStop safety button at 38 C calibration required GROHE SafeStop Plus optional temperature limiter at 43 C included built in non return valve and dirt strainers multiple outlets can be run simultaneously cover plate in moon white acrylic glass without roughing in set flow performance outlet A 23 l min outlet B 27 l min outlet C 23 l min 29 152 LS0 4005176413575 moon white 409 00 Grohtherm SmartControl Triple volume control trim set for final installation for GROHE Rapido SmartBox 35 600 000 metal wall escutcheon with GROHE QuickFix covered escutcheon and shaft sealing covered fixing retroactively 6 adjustable 10 mm thin profile escutcheon GROHE StarLight finish GROHE SmartControl push for ON OFF turn for volume adjustment from EcoJoy to full flow exchangeable symbols multiple outlets can be run simultaneously cover plate in moon white acrylic glass without roughing in set flow performance outlet D 28 l min outlet E 28 l min outlet A 28 l min outlet D E A 65 l min optional flow reducer for CALGreen compliance included MPL UK en GB 29 PL Grohtherm SmartControl 4c indd 261 05 02 18 15 09
