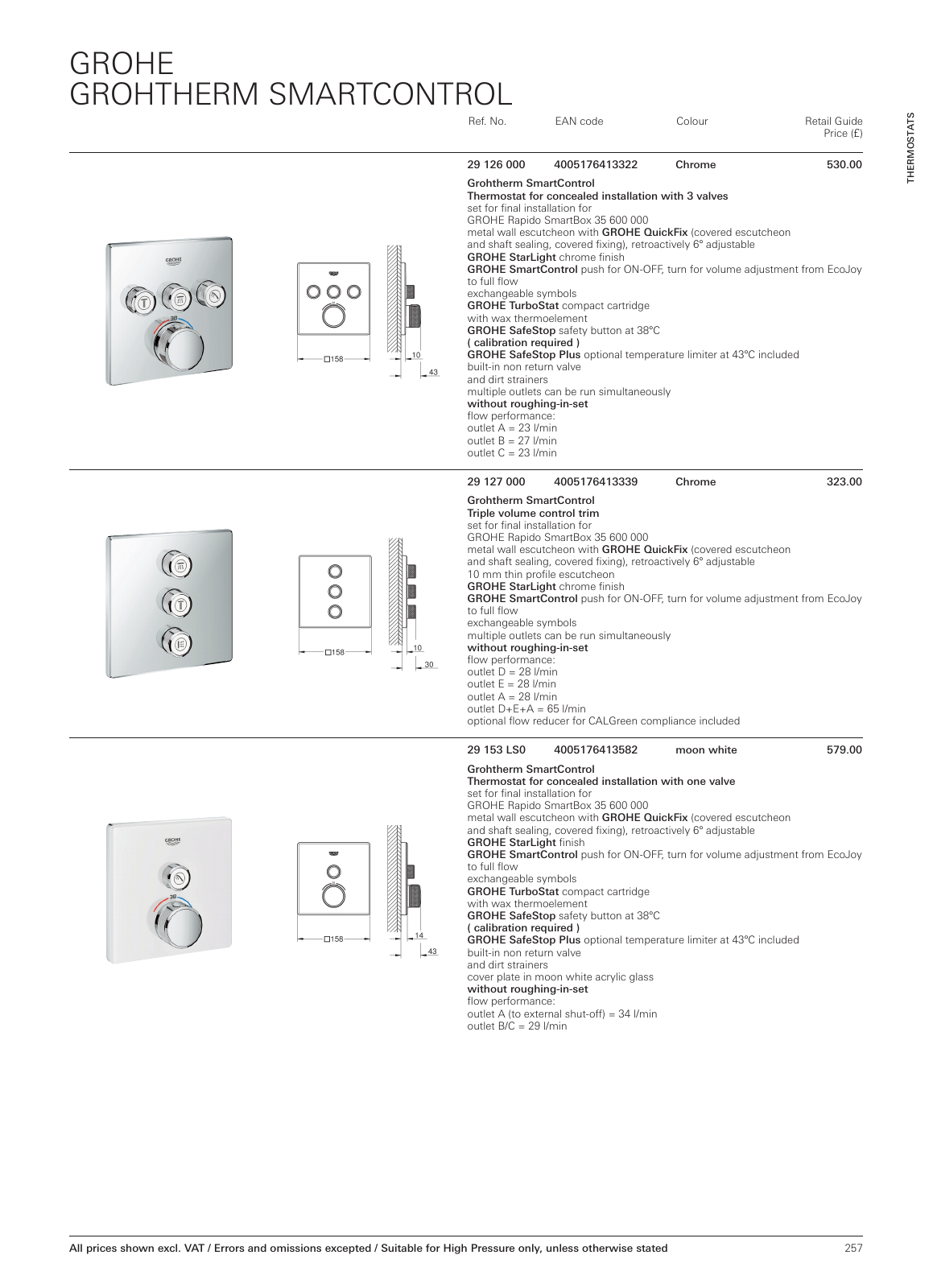

257 T H E R M O S TA T SRef No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated GROHE GROHTHERM SMARTCONTROL 29 126 000 4005176413322 Chrome 530 00 Grohtherm SmartControl Thermostat for concealed installation with 3 valves set for final installation for GROHE Rapido SmartBox 35 600 000 metal wall escutcheon with GROHE QuickFix covered escutcheon and shaft sealing covered fixing retroactively 6 adjustable GROHE StarLight chrome finish GROHE SmartControl push for ON OFF turn for volume adjustment from EcoJoy to full flow exchangeable symbols GROHE TurboStat compact cartridge with wax thermoelement GROHE SafeStop safety button at 38 C calibration required GROHE SafeStop Plus optional temperature limiter at 43 C included built in non return valve and dirt strainers multiple outlets can be run simultaneously without roughing in set flow performance outlet A 23 l min outlet B 27 l min outlet C 23 l min 29 127 000 4005176413339 Chrome 323 00 Grohtherm SmartControl Triple volume control trim set for final installation for GROHE Rapido SmartBox 35 600 000 metal wall escutcheon with GROHE QuickFix covered escutcheon and shaft sealing covered fixing retroactively 6 adjustable 10 mm thin profile escutcheon GROHE StarLight chrome finish GROHE SmartControl push for ON OFF turn for volume adjustment from EcoJoy to full flow exchangeable symbols multiple outlets can be run simultaneously without roughing in set flow performance outlet D 28 l min outlet E 28 l min outlet A 28 l min outlet D E A 65 l min optional flow reducer for CALGreen compliance included 29 153 LS0 4005176413582 moon white 579 00 Grohtherm SmartControl Thermostat for concealed installation with one valve set for final installation for GROHE Rapido SmartBox 35 600 000 metal wall escutcheon with GROHE QuickFix covered escutcheon and shaft sealing covered fixing retroactively 6 adjustable GROHE StarLight finish GROHE SmartControl push for ON OFF turn for volume adjustment from EcoJoy to full flow exchangeable symbols GROHE TurboStat compact cartridge with wax thermoelement GROHE SafeStop safety button at 38 C calibration required GROHE SafeStop Plus optional temperature limiter at 43 C included built in non return valve and dirt strainers cover plate in moon white acrylic glass without roughing in set flow performance outlet A to external shut off 34 l min outlet B C 29 l min MPL UK en GB 29 PL Grohtherm SmartControl 4c indd 257 05 02 18 15 09
