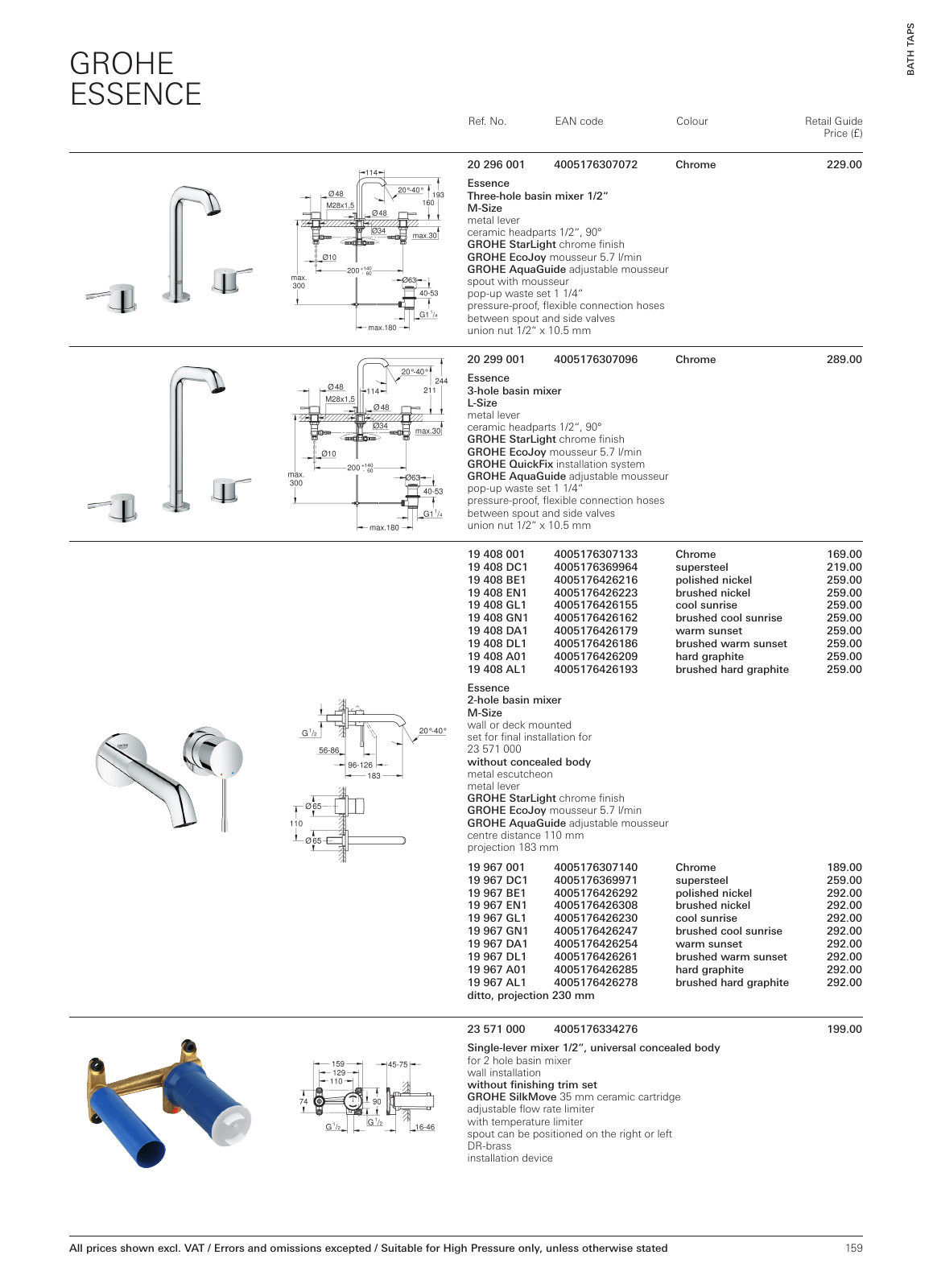

159 B A T H T A P S Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated GROHE ESSENCE 20 296 001 4005176307072 Chrome 229 00 Essence Three hole basin mixer 1 2 M Size metal lever ceramic headparts 1 2 90 GROHE StarLight chrome finish GROHE EcoJoy mousseur 5 7 l min GROHE AquaGuide adjustable mousseur spout with mousseur pop up waste set 1 1 4 pressure proof flexible connection hoses between spout and side valves union nut 1 2 x 10 5 mm 20 299 001 4005176307096 Chrome 289 00 Essence 3 hole basin mixer L Size metal lever ceramic headparts 1 2 90 GROHE StarLight chrome finish GROHE EcoJoy mousseur 5 7 l min GROHE QuickFix installation system GROHE AquaGuide adjustable mousseur pop up waste set 1 1 4 pressure proof flexible connection hoses between spout and side valves union nut 1 2 x 10 5 mm 19 408 001 4005176307133 Chrome 169 00 19 408 DC1 4005176369964 supersteel 219 00 19 408 BE1 4005176426216 polished nickel 259 00 19 408 EN1 4005176426223 brushed nickel 259 00 19 408 GL1 4005176426155 cool sunrise 259 00 19 408 GN1 4005176426162 brushed cool sunrise 259 00 19 408 DA1 4005176426179 warm sunset 259 00 19 408 DL1 4005176426186 brushed warm sunset 259 00 19 408 A01 4005176426209 hard graphite 259 00 19 408 AL1 4005176426193 brushed hard graphite 259 00 Essence 2 hole basin mixer M Size wall or deck mounted set for final installation for 23 571 000 without concealed body metal escutcheon metal lever GROHE StarLight chrome finish GROHE EcoJoy mousseur 5 7 l min GROHE AquaGuide adjustable mousseur centre distance 110 mm projection 183 mm 19 967 001 4005176307140 Chrome 189 00 19 967 DC1 4005176369971 supersteel 259 00 19 967 BE1 4005176426292 polished nickel 292 00 19 967 EN1 4005176426308 brushed nickel 292 00 19 967 GL1 4005176426230 cool sunrise 292 00 19 967 GN1 4005176426247 brushed cool sunrise 292 00 19 967 DA1 4005176426254 warm sunset 292 00 19 967 DL1 4005176426261 brushed warm sunset 292 00 19 967 A01 4005176426285 hard graphite 292 00 19 967 AL1 4005176426278 brushed hard graphite 292 00 ditto projection 230 mm 23 571 000 4005176334276 199 00 Single lever mixer 1 2 universal concealed body for 2 hole basin mixer wall installation without finishing trim set GROHE SilkMove 35 mm ceramic cartridge adjustable flow rate limiter with temperature limiter spout can be positioned on the right or left DR brass installation device MPL UK en GB 13 PL Essence 4c indd 159 05 02 18 14 01
