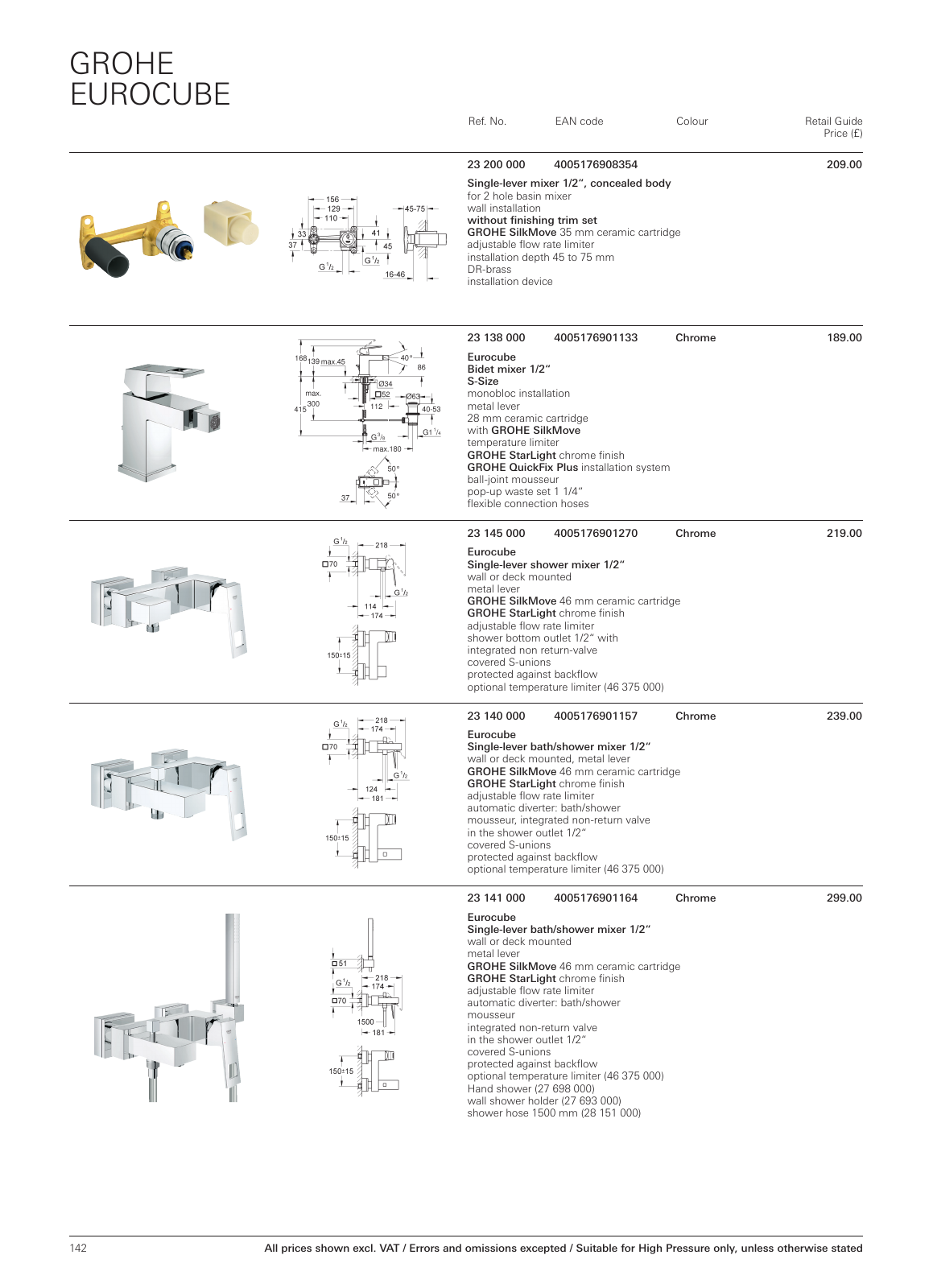

142 GROHE EUROCUBE Ref No EAN code Colour Retail Guide Price All prices shown excl VAT Errors and omissions excepted Suitable for High Pressure only unless otherwise stated 23 200 000 4005176908354 209 00 Single lever mixer 1 2 concealed body for 2 hole basin mixer wall installation without finishing trim set GROHE SilkMove 35 mm ceramic cartridge adjustable flow rate limiter installation depth 45 to 75 mm DR brass installation device 23 138 000 4005176901133 Chrome 189 00 Eurocube Bidet mixer 1 2 S Size monobloc installation metal lever 28 mm ceramic cartridge with GROHE SilkMove temperature limiter GROHE StarLight chrome finish GROHE QuickFix Plus installation system ball joint mousseur pop up waste set 1 1 4 flexible connection hoses 23 145 000 4005176901270 Chrome 219 00 Eurocube Single lever shower mixer 1 2 wall or deck mounted metal lever GROHE SilkMove 46 mm ceramic cartridge GROHE StarLight chrome finish adjustable flow rate limiter shower bottom outlet 1 2 with integrated non return valve covered S unions protected against backflow optional temperature limiter 46 375 000 23 140 000 4005176901157 Chrome 239 00 Eurocube Single lever bath shower mixer 1 2 wall or deck mounted metal lever GROHE SilkMove 46 mm ceramic cartridge GROHE StarLight chrome finish adjustable flow rate limiter automatic diverter bath shower mousseur integrated non return valve in the shower outlet 1 2 covered S unions protected against backflow optional temperature limiter 46 375 000 23 141 000 4005176901164 Chrome 299 00 Eurocube Single lever bath shower mixer 1 2 wall or deck mounted metal lever GROHE SilkMove 46 mm ceramic cartridge GROHE StarLight chrome finish adjustable flow rate limiter automatic diverter bath shower mousseur integrated non return valve in the shower outlet 1 2 covered S unions protected against backflow optional temperature limiter 46 375 000 Hand shower 27 698 000 wall shower holder 27 693 000 shower hose 1500 mm 28 151 000 MPL UK en GB 11 PL Eurocube 4c indd 142 05 02 18 13 50
