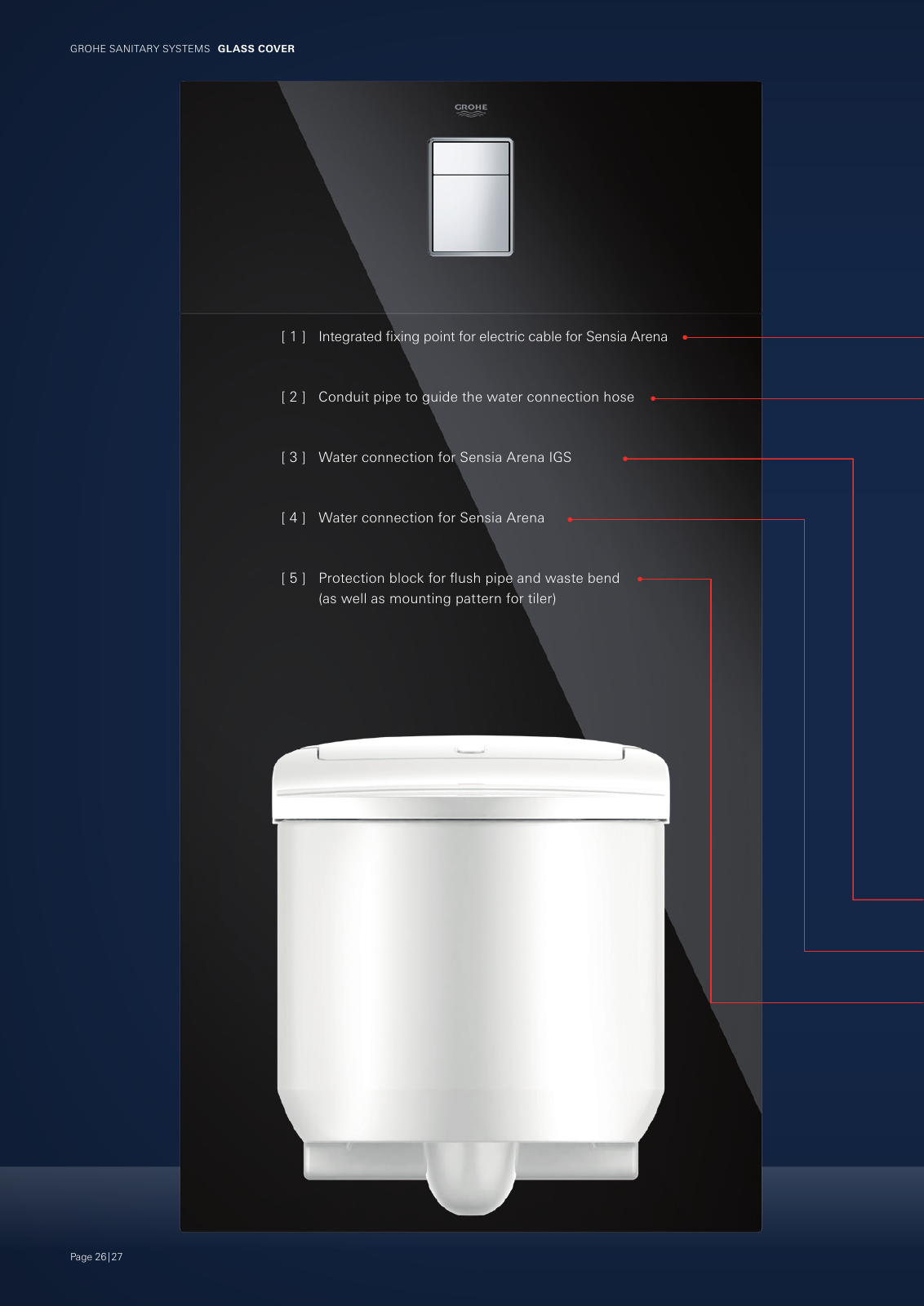

GLASS COVER 1 Integrated fixing point for electric cable for Sensia Arena 2 Conduit pipe to guide the water connection hose 3 Water connection for Sensia Arena IGS 4 Water connection for Sensia Arena 5 Protection block for flush pipe and waste bend as well as mounting pattern for tiler GROHE SANITARY SYSTEMS Page 26 27
