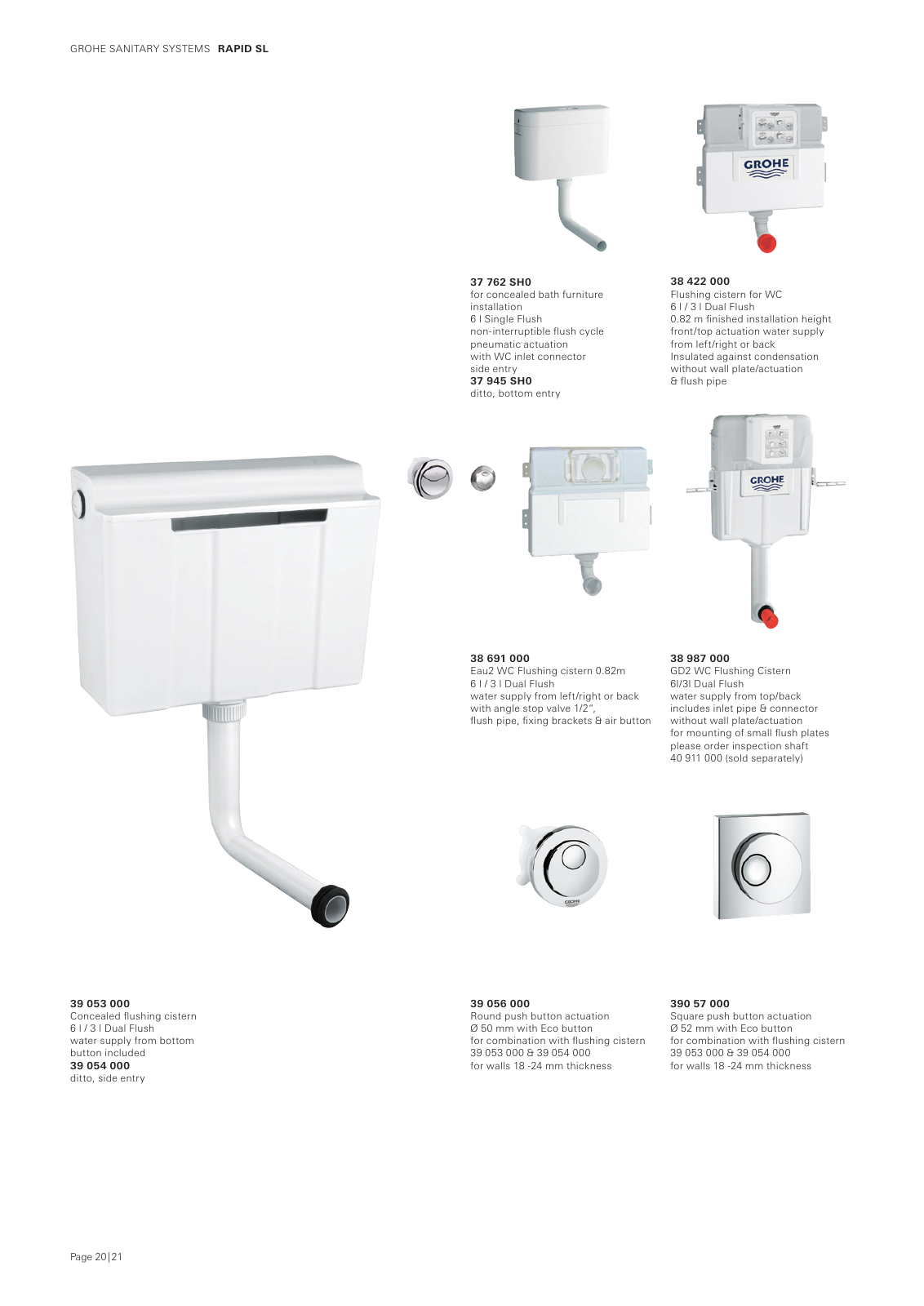

RAPID SL 390 57 000 Square push button actuation Ø 52 mm with Eco button for combination with flushing cistern 39 053 000 39 054 000 for walls 18 24 mm thickness 39 056 000 Round push button actuation Ø 50 mm with Eco button for combination with flushing cistern 39 053 000 39 054 000 for walls 18 24 mm thickness 39 053 000 Concealed flushing cistern 6 l 3 l Dual Flush water supply from bottom button included 39 054 000 ditto side entry 38 691 000 Eau2 WC Flushing cistern 0 82m 6 l 3 l Dual Flush water supply from left right or back with angle stop valve 1 2 flush pipe fixing brackets air button 38 422 000 Flushing cistern for WC 6 l 3 l Dual Flush 0 82 m finished installation height front top actuation water supply from left right or back Insulated against condensation without wall plate actuation flush pipe 37 762 SH0 for concealed bath furniture installation 6 l Single Flush non interruptible flush cycle pneumatic actuation with WC inlet connector side entry 37 945 SH0 ditto bottom entry 38 987 000 GD2 WC Flushing Cistern 6l 3l Dual Flush water supply from top back includes inlet pipe connector without wall plate actuation for mounting of small flush plates please order inspection shaft 40 911 000 sold separately Page 20 21 G R O H E SANITARY S Y STEMS
