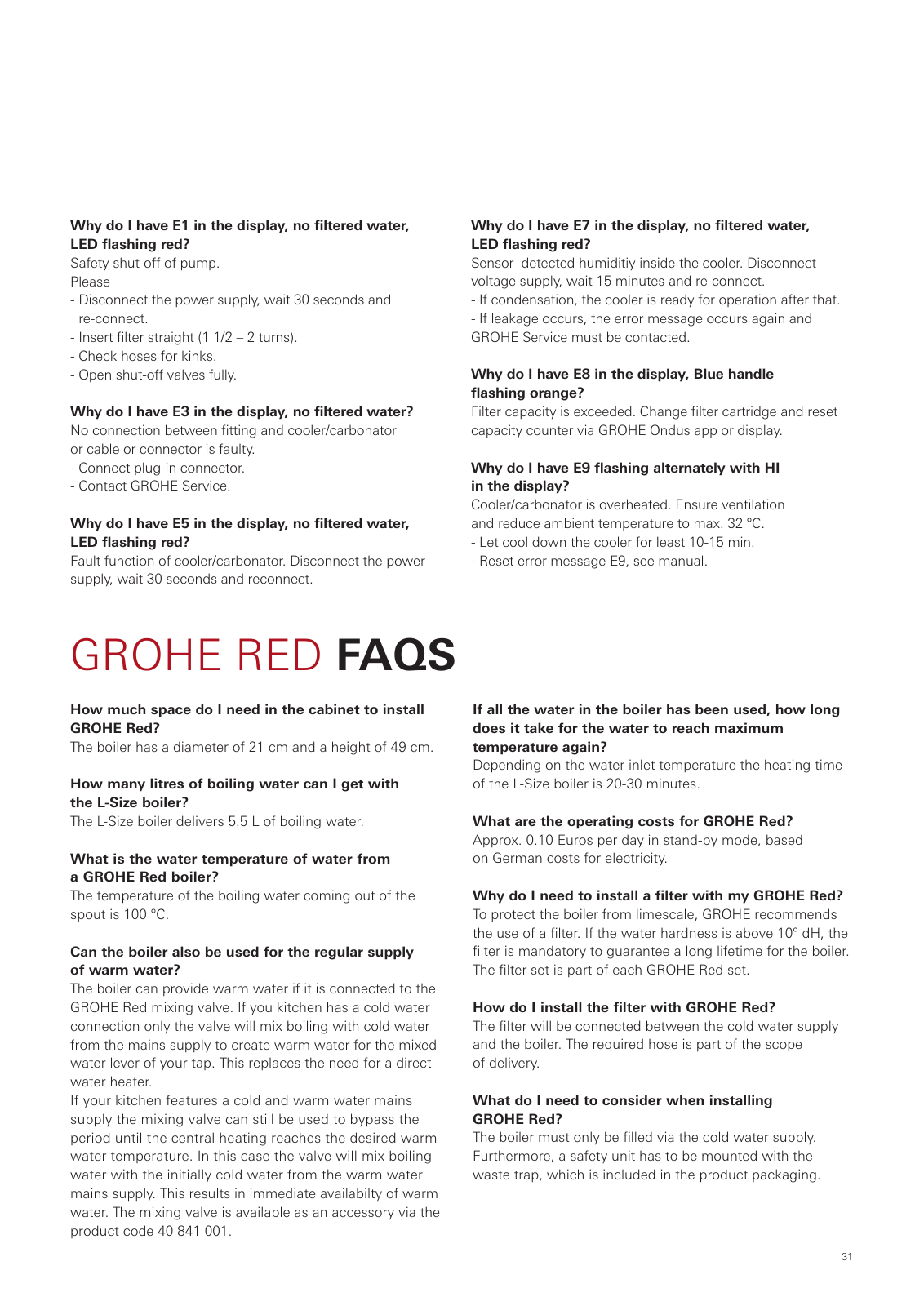

31 How much space do I need in the cabinet to install GROHE Red The boiler has a diameter of 21 cm and a height of 49 cm How many litres of boiling water can I get with the L Size boiler The L Size boiler delivers 5 5 L of boiling water What is the water temperature of water from a GROHE Red boiler The temperature of the boiling water coming out of the spout is 100 C Can the boiler also be used for the regular supply of warm water The boiler can provide warm water if it is connected to the GROHE Red mixing valve If you kitchen has a cold water connection only the valve will mix boiling with cold water from the mains supply to create warm water for the mixed water lever of your tap This replaces the need for a direct water heater If your kitchen features a cold and warm water mains supply the mixing valve can still be used to bypass the period until the central heating reaches the desired warm water temperature In this case the valve will mix boiling water with the initially cold water from the warm water mains supply This results in immediate availabilty of warm water The mixing valve is available as an accessory via the product code 40 841 001 If all the water in the boiler has been used how long does it take for the water to reach maximum temperature again Depending on the water inlet temperature the heating time of the L Size boiler is 20 30 minutes What are the operating costs for GROHE Red Approx 0 10 Euros per day in stand by mode based on German costs for electricity Why do I need to install a filter with my GROHE Red To protect the boiler from limescale GROHE recommends the use of a filter If the water hardness is above 10 dH the filter is mandatory to guarantee a long lifetime for the boiler The filter set is part of each GROHE Red set How do I install the filter with GROHE Red The filter will be connected between the cold water supply and the boiler The required hose is part of the scope of delivery What do I need to consider when installing GROHE Red The boiler must only be filled via the cold water supply Furthermore a safety unit has to be mounted with the waste trap which is included in the product packaging GROHE RED FAQS Why do I have E1 in the display no filtered water LED flashing red Safety shut off of pump Please Disconnect the power supply wait 30 seconds and re connect Insert filter straight 1 1 2 2 turns Check hoses for kinks Open shut off valves fully Why do I have E3 in the display no filtered water No connection between fitting and cooler carbonator or cable or connector is faulty Connect plug in connector Contact GROHE Service Why do I have E5 in the display no filtered water LED flashing red Fault function of cooler carbonator Disconnect the power supply wait 30 seconds and reconnect Why do I have E7 in the display no filtered water LED flashing red Sensor detected humiditiy inside the cooler Disconnect voltage supply wait 15 minutes and re connect If condensation the cooler is ready for operation after that If leakage occurs the error message occurs again and GROHE Service must be contacted Why do I have E8 in the display Blue handle flashing orange Filter capacity is exceeded Change filter cartridge and reset capacity counter via GROHE Ondus app or display Why do I have E9 flashing alternately with HI in the display Cooler carbonator is overheated Ensure ventilation and reduce ambient temperature to max 32 C Let cool down the cooler for least 10 15 min Reset error message E9 see manual
