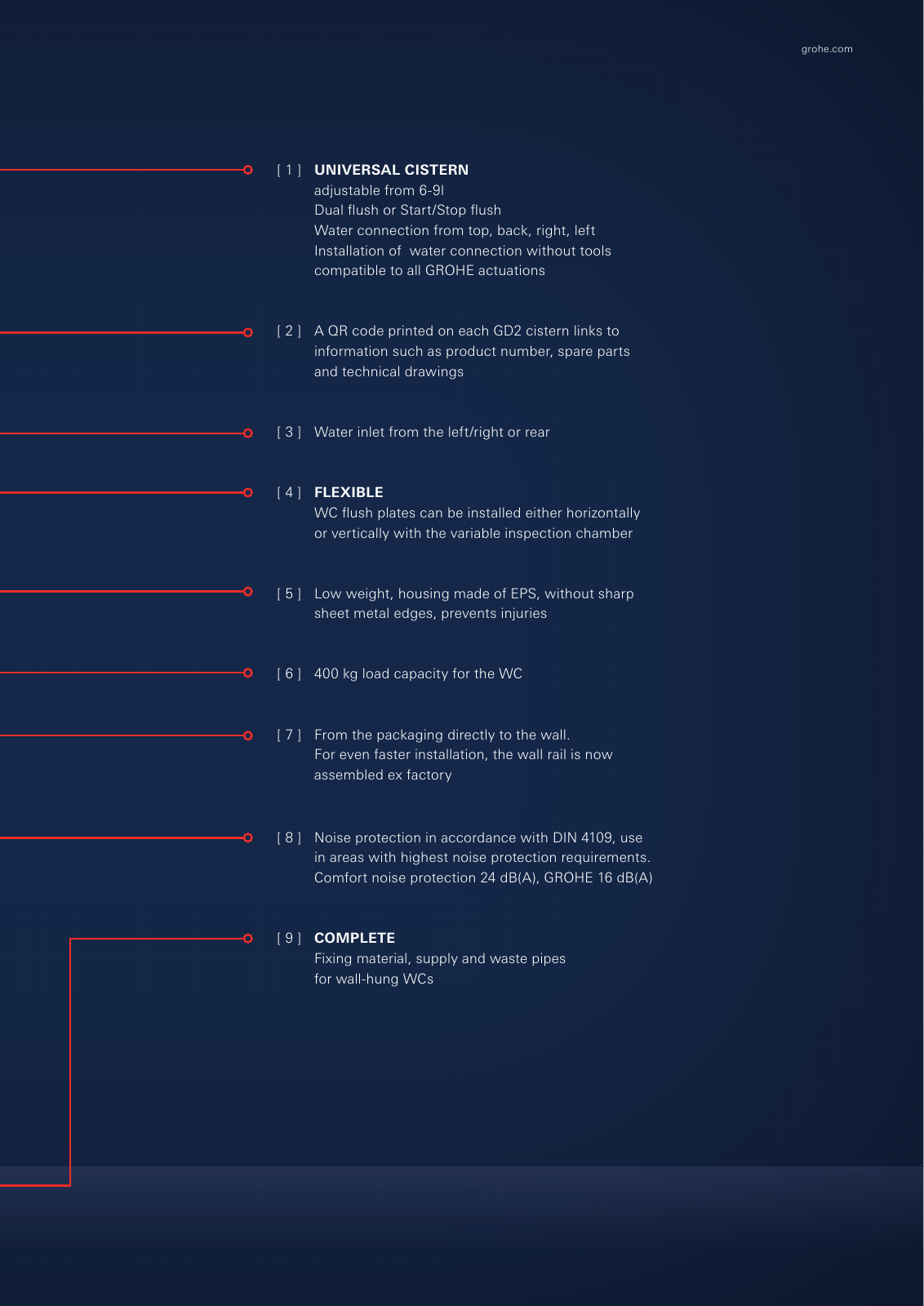

grohe com 1 UNIVERSAL CISTERN adjustable from 6 9l Dual fl ush or Start Stop fl ush Water connection from top back right left Installation of water connection without tools compatible to all GROHE actuations 2 A QR code printed on each GD2 cistern links to information such as product number spare parts and technical drawings 3 Water inlet from the left right or rear 4 FLEXIBLE WC fl ush plates can be installed either horizontally or vertically with the variable inspection chamber 5 Low weight housing made of EPS without sharp sheet metal edges prevents injuries 6 400 kg load capacity for the WC 7 From the packaging directly to the wall For even faster installation the wall rail is now assembled ex factory 8 Noise protection in accordance with DIN 4109 use in areas with highest noise protection requirements Comfort noise protection 24 dB A GROHE 16 dB A 9 COMPLETE Fixing material supply and waste pipes for wall hung WCs
