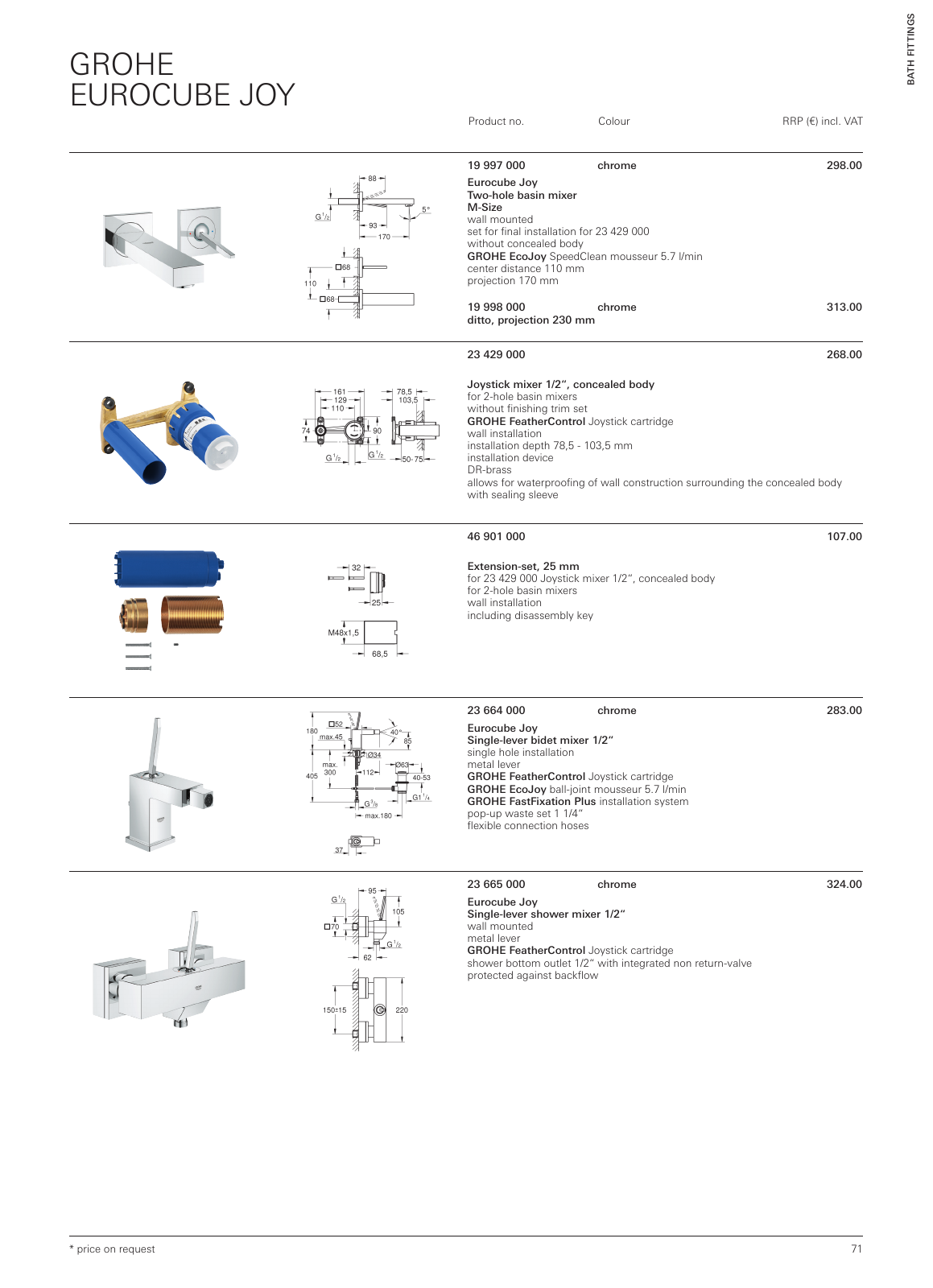

19 997 000 chrome 298 00 Eurocube Joy Two hole basin mixer M Size wall mounted set for final installation for 23 429 000 without concealed body GROHE EcoJoy SpeedClean mousseur 5 7 l min center distance 110 mm projection 170 mm 19 998 000 chrome 313 00 ditto projection 230 mm 23 429 000 268 00 Joystick mixer 1 2 concealed body for 2 hole basin mixers without finishing trim set GROHE FeatherControl Joystick cartridge wall installation installation depth 78 5 103 5 mm installation device DR brass allows for waterproofing of wall construction surrounding the concealed body with sealing sleeve 46 901 000 107 00 Extension set 25 mm for 23 429 000 Joystick mixer 1 2 concealed body for 2 hole basin mixers wall installation including disassembly key 23 664 000 chrome 283 00 Eurocube Joy Single lever bidet mixer 1 2 single hole installation metal lever GROHE FeatherControl Joystick cartridge GROHE EcoJoy ball joint mousseur 5 7 l min GROHE FastFixation Plus installation system pop up waste set 1 1 4 flexible connection hoses 23 665 000 chrome 324 00 Eurocube Joy Single lever shower mixer 1 2 wall mounted metal lever GROHE FeatherControl Joystick cartridge shower bottom outlet 1 2 with integrated non return valve protected against backflow 71 B A T H F IT T IN G S Product no Colour RRP incl VAT price on request GROHE EUROCUBE JOY MPL 2022 en BAL 009 PL Eurocube Joy 71 14 02 22 06 54
