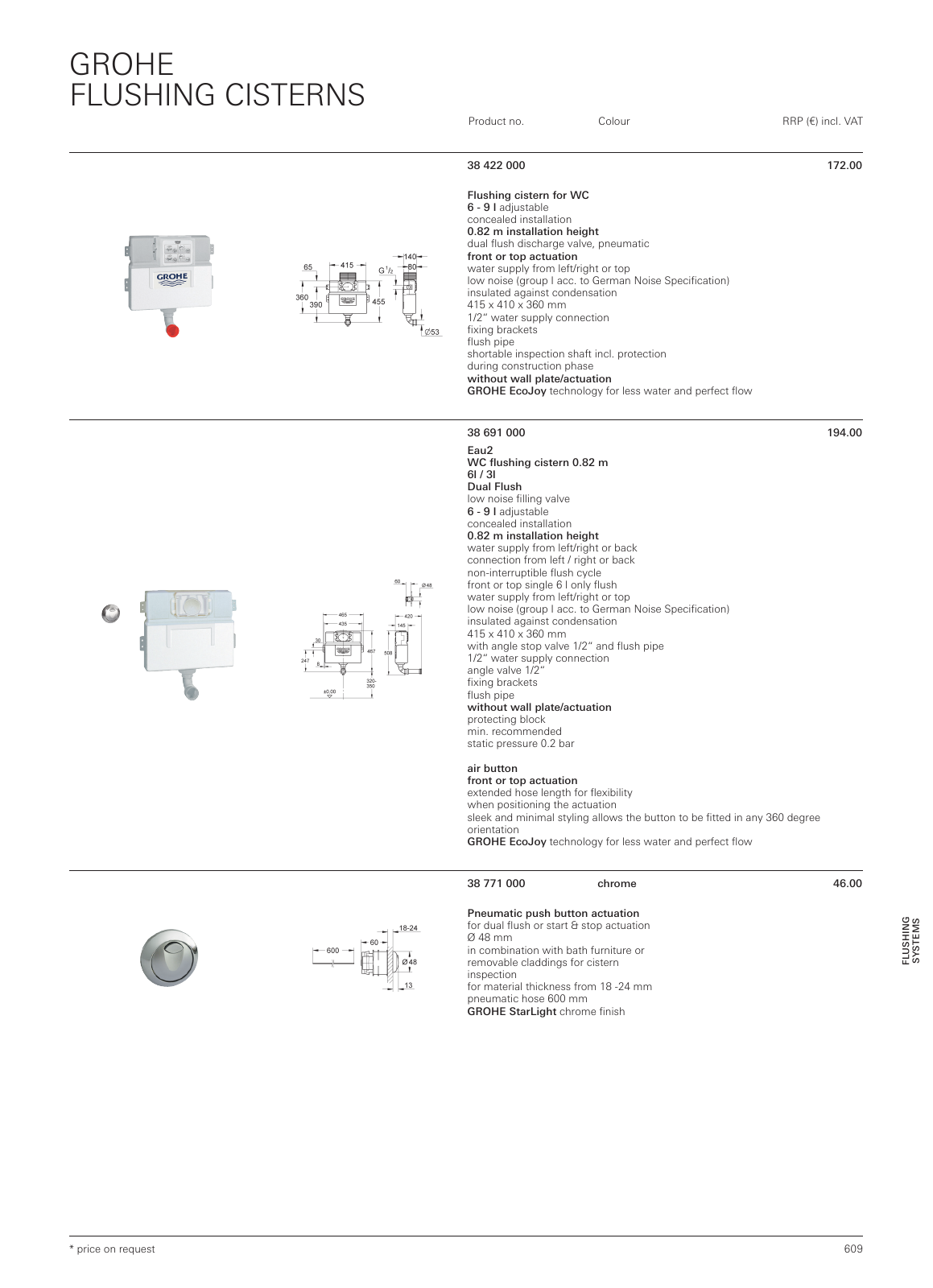

38 422 000 172 00 Flushing cistern for WC 6 9 l adjustable concealed installation 0 82 m installation height dual flush discharge valve pneumatic front or top actuation water supply from left right or top low noise group I acc to German Noise Specification insulated against condensation 415 x 410 x 360 mm 1 2 water supply connection fixing brackets flush pipe shortable inspection shaft incl protection during construction phase without wall plate actuation GROHE EcoJoy technology for less water and perfect flow 38 691 000 194 00 Eau2 WC flushing cistern 0 82 m 6l 3l Dual Flush low noise filling valve 6 9 l adjustable concealed installation 0 82 m installation height water supply from left right or back connection from left right or back non interruptible flush cycle front or top single 6 l only flush water supply from left right or top low noise group I acc to German Noise Specification insulated against condensation 415 x 410 x 360 mm with angle stop valve 1 2 and flush pipe 1 2 water supply connection angle valve 1 2 fixing brackets flush pipe without wall plate actuation protecting block min recommended static pressure 0 2 bar air button front or top actuation extended hose length for flexibility when positioning the actuation sleek and minimal styling allows the button to be fitted in any 360 degree orientation GROHE EcoJoy technology for less water and perfect flow 38 771 000 chrome 46 00 Pneumatic push button actuation for dual flush or start stop actuation Ø 48 mm in combination with bath furniture or removable claddings for cistern inspection for material thickness from 18 24 mm pneumatic hose 600 mm GROHE StarLight chrome finish 609 FL U S H IN G S Y S T E M S Product no Colour RRP incl VAT price on request GROHE FLUSHING CISTERNS MPL 2022 en BAL 139 PL Flushing Cisterns 609 14 02 22 12 12
