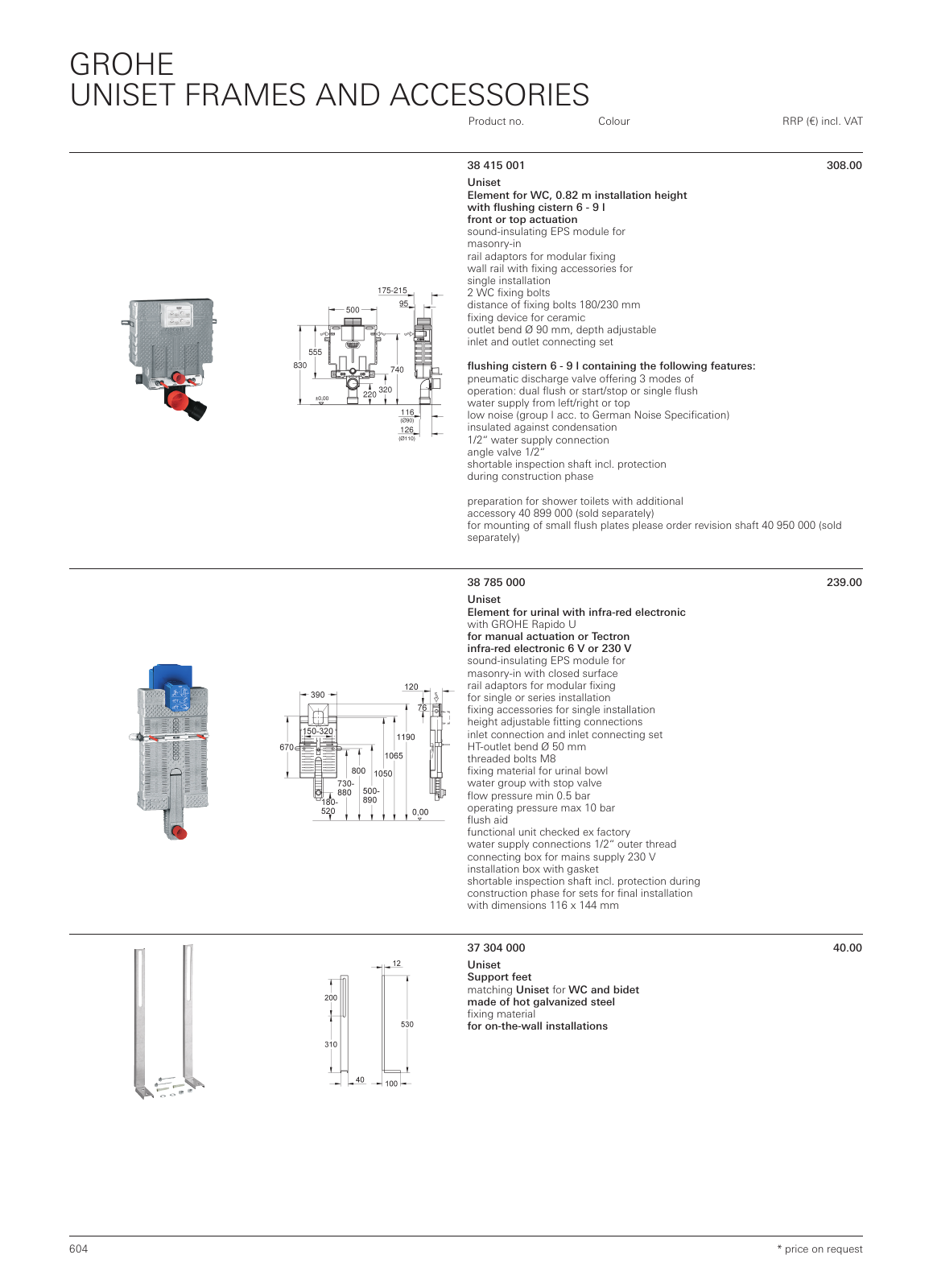

38 415 001 308 00 Uniset Element for WC 0 82 m installation height with flushing cistern 6 9 l front or top actuation sound insulating EPS module for masonry in rail adaptors for modular fixing wall rail with fixing accessories for single installation 2 WC fixing bolts distance of fixing bolts 180 230 mm fixing device for ceramic outlet bend Ø 90 mm depth adjustable inlet and outlet connecting set flushing cistern 6 9 l containing the following features pneumatic discharge valve offering 3 modes of operation dual flush or start stop or single flush water supply from left right or top low noise group I acc to German Noise Specification insulated against condensation 1 2 water supply connection angle valve 1 2 shortable inspection shaft incl protection during construction phase preparation for shower toilets with additional accessory 40 899 000 sold separately for mounting of small flush plates please order revision shaft 40 950 000 sold separately 38 785 000 239 00 Uniset Element for urinal with infra red electronic with GROHE Rapido U for manual actuation or Tectron infra red electronic 6 V or 230 V sound insulating EPS module for masonry in with closed surface rail adaptors for modular fixing for single or series installation fixing accessories for single installation height adjustable fitting connections inlet connection and inlet connecting set HT outlet bend Ø 50 mm threaded bolts M8 fixing material for urinal bowl water group with stop valve flow pressure min 0 5 bar operating pressure max 10 bar flush aid functional unit checked ex factory water supply connections 1 2 outer thread connecting box for mains supply 230 V installation box with gasket shortable inspection shaft incl protection during construction phase for sets for final installation with dimensions 116 x 144 mm 37 304 000 40 00 Uniset Support feet matching Uniset for WC and bidet made of hot galvanized steel fixing material for on the wall installations 604 GROHE UNISET FRAMES AND ACCESSORIES Product no Colour RRP incl VAT price on request 1479570 indd 604 14 02 22 12 10
