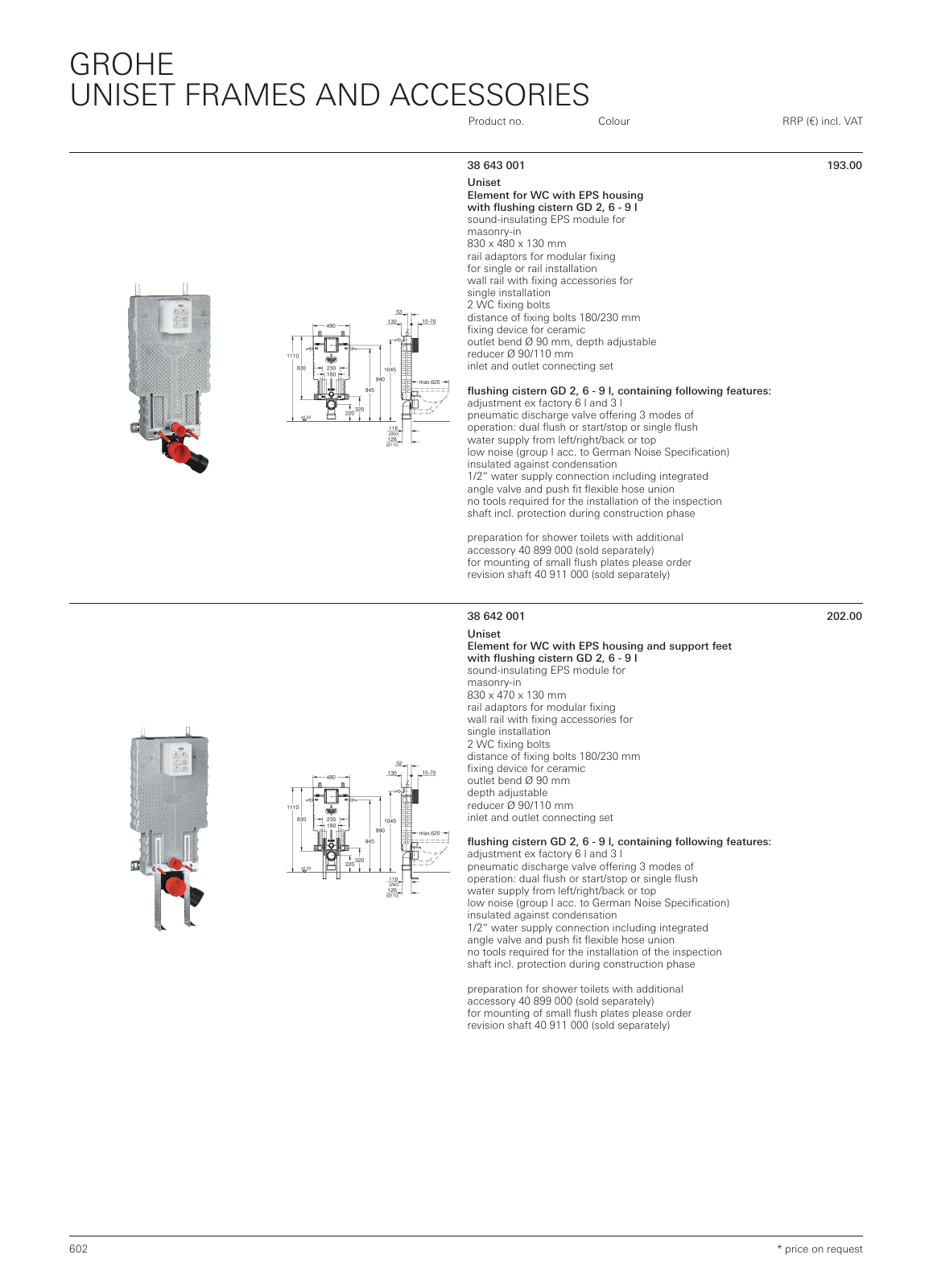

38 643 001 193 00 Uniset Element for WC with EPS housing with flushing cistern GD 2 6 9 l sound insulating EPS module for masonry in 830 x 480 x 130 mm rail adaptors for modular fixing for single or rail installation wall rail with fixing accessories for single installation 2 WC fixing bolts distance of fixing bolts 180 230 mm fixing device for ceramic outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm inlet and outlet connecting set flushing cistern GD 2 6 9 l containing following features adjustment ex factory 6 l and 3 l pneumatic discharge valve offering 3 modes of operation dual flush or start stop or single flush water supply from left right back or top low noise group I acc to German Noise Specification insulated against condensation 1 2 water supply connection including integrated angle valve and push fit flexible hose union no tools required for the installation of the inspection shaft incl protection during construction phase preparation for shower toilets with additional accessory 40 899 000 sold separately for mounting of small flush plates please order revision shaft 40 911 000 sold separately 38 642 001 202 00 Uniset Element for WC with EPS housing and support feet with flushing cistern GD 2 6 9 l sound insulating EPS module for masonry in 830 x 470 x 130 mm rail adaptors for modular fixing wall rail with fixing accessories for single installation 2 WC fixing bolts distance of fixing bolts 180 230 mm fixing device for ceramic outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm inlet and outlet connecting set flushing cistern GD 2 6 9 l containing following features adjustment ex factory 6 l and 3 l pneumatic discharge valve offering 3 modes of operation dual flush or start stop or single flush water supply from left right back or top low noise group I acc to German Noise Specification insulated against condensation 1 2 water supply connection including integrated angle valve and push fit flexible hose union no tools required for the installation of the inspection shaft incl protection during construction phase preparation for shower toilets with additional accessory 40 899 000 sold separately for mounting of small flush plates please order revision shaft 40 911 000 sold separately 602 GROHE UNISET FRAMES AND ACCESSORIES Product no Colour RRP incl VAT price on request 1479570 indd 602 14 02 22 12 10
