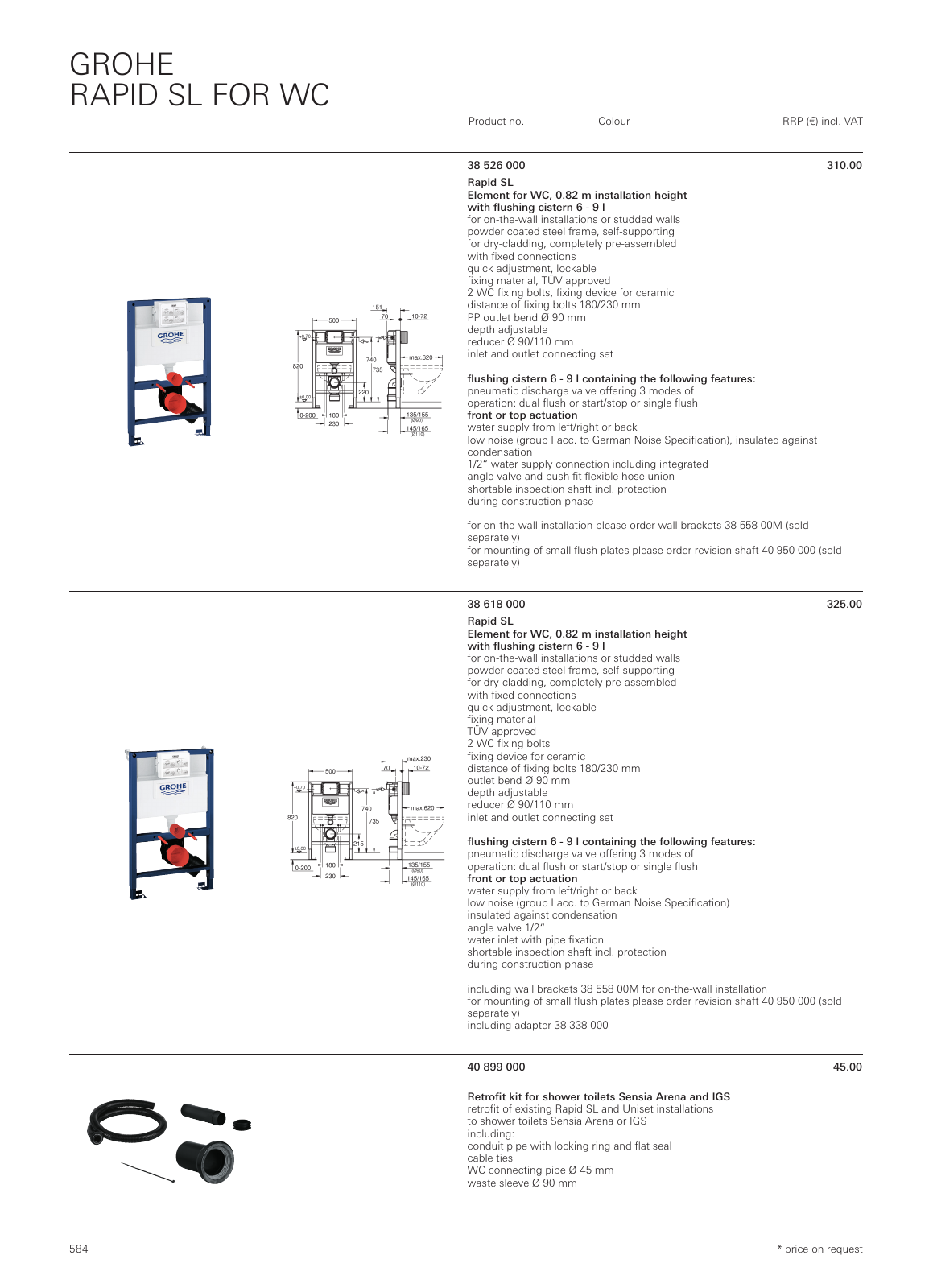

38 526 000 310 00 Rapid SL Element for WC 0 82 m installation height with flushing cistern 6 9 l for on the wall installations or studded walls powder coated steel frame self supporting for dry cladding completely pre assembled with fixed connections quick adjustment lockable fixing material TÜV approved 2 WC fixing bolts fixing device for ceramic distance of fixing bolts 180 230 mm PP outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm inlet and outlet connecting set flushing cistern 6 9 l containing the following features pneumatic discharge valve offering 3 modes of operation dual flush or start stop or single flush front or top actuation water supply from left right or back low noise group I acc to German Noise Specification insulated against condensation 1 2 water supply connection including integrated angle valve and push fit flexible hose union shortable inspection shaft incl protection during construction phase for on the wall installation please order wall brackets 38 558 00M sold separately for mounting of small flush plates please order revision shaft 40 950 000 sold separately 38 618 000 325 00 Rapid SL Element for WC 0 82 m installation height with flushing cistern 6 9 l for on the wall installations or studded walls powder coated steel frame self supporting for dry cladding completely pre assembled with fixed connections quick adjustment lockable fixing material TÜV approved 2 WC fixing bolts fixing device for ceramic distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm inlet and outlet connecting set flushing cistern 6 9 l containing the following features pneumatic discharge valve offering 3 modes of operation dual flush or start stop or single flush front or top actuation water supply from left right or back low noise group I acc to German Noise Specification insulated against condensation angle valve 1 2 water inlet with pipe fixation shortable inspection shaft incl protection during construction phase including wall brackets 38 558 00M for on the wall installation for mounting of small flush plates please order revision shaft 40 950 000 sold separately including adapter 38 338 000 40 899 000 45 00 Retrofit kit for shower toilets Sensia Arena and IGS retrofit of existing Rapid SL and Uniset installations to shower toilets Sensia Arena or IGS including conduit pipe with locking ring and flat seal cable ties WC connecting pipe Ø 45 mm waste sleeve Ø 90 mm 584 GROHE RAPID SL FOR WC Product no Colour RRP incl VAT price on request MPL 2022 en BAL 129 PL Rapid SL WC 584 14 02 22 11 55
