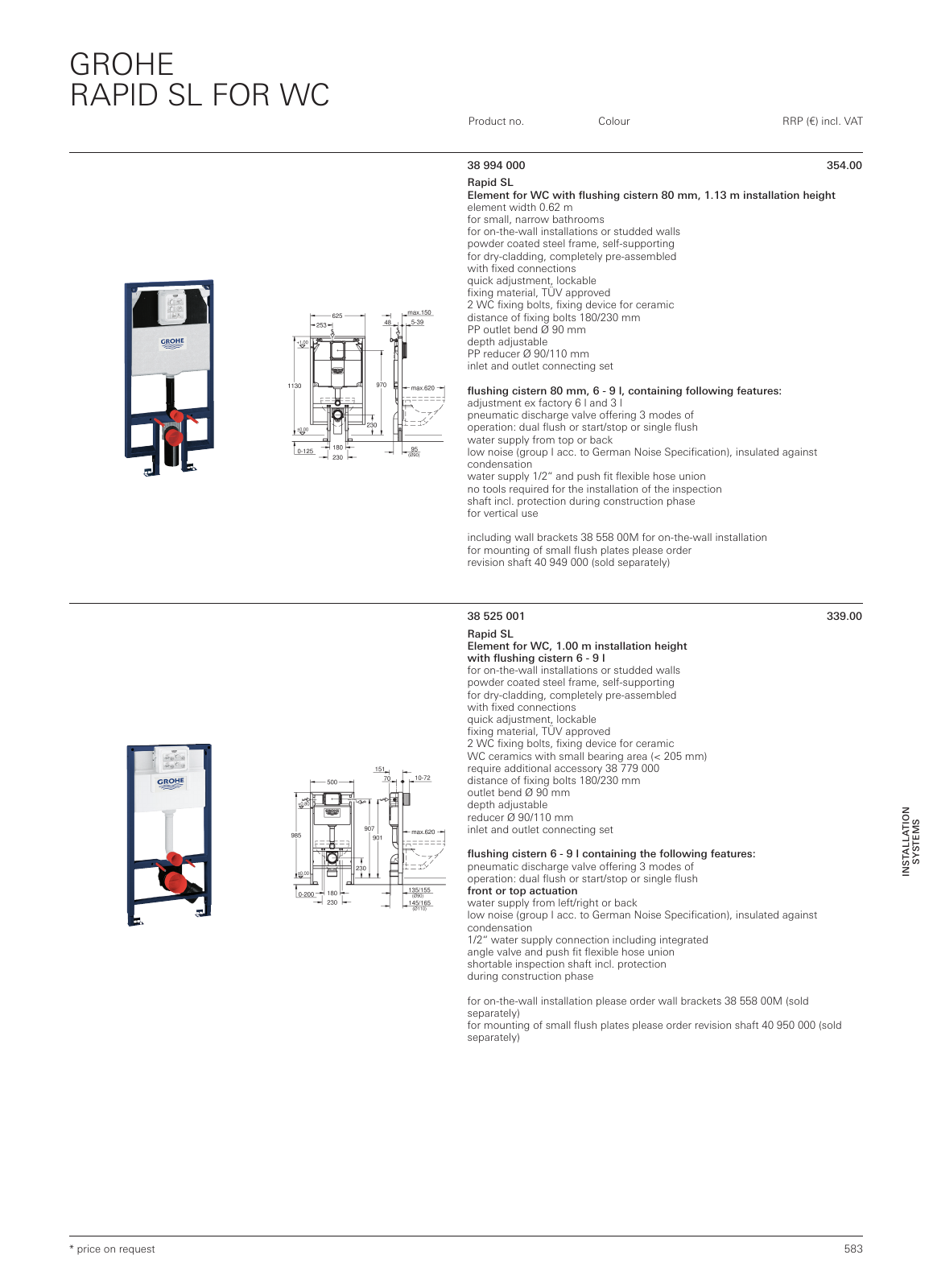

38 994 000 354 00 Rapid SL Element for WC with flushing cistern 80 mm 1 13 m installation height element width 0 62 m for small narrow bathrooms for on the wall installations or studded walls powder coated steel frame self supporting for dry cladding completely pre assembled with fixed connections quick adjustment lockable fixing material TÜV approved 2 WC fixing bolts fixing device for ceramic distance of fixing bolts 180 230 mm PP outlet bend Ø 90 mm depth adjustable PP reducer Ø 90 110 mm inlet and outlet connecting set flushing cistern 80 mm 6 9 l containing following features adjustment ex factory 6 l and 3 l pneumatic discharge valve offering 3 modes of operation dual flush or start stop or single flush water supply from top or back low noise group I acc to German Noise Specification insulated against condensation water supply 1 2 and push fit flexible hose union no tools required for the installation of the inspection shaft incl protection during construction phase for vertical use including wall brackets 38 558 00M for on the wall installation for mounting of small flush plates please order revision shaft 40 949 000 sold separately 38 525 001 339 00 Rapid SL Element for WC 1 00 m installation height with flushing cistern 6 9 l for on the wall installations or studded walls powder coated steel frame self supporting for dry cladding completely pre assembled with fixed connections quick adjustment lockable fixing material TÜV approved 2 WC fixing bolts fixing device for ceramic WC ceramics with small bearing area 205 mm require additional accessory 38 779 000 distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm inlet and outlet connecting set flushing cistern 6 9 l containing the following features pneumatic discharge valve offering 3 modes of operation dual flush or start stop or single flush front or top actuation water supply from left right or back low noise group I acc to German Noise Specification insulated against condensation 1 2 water supply connection including integrated angle valve and push fit flexible hose union shortable inspection shaft incl protection during construction phase for on the wall installation please order wall brackets 38 558 00M sold separately for mounting of small flush plates please order revision shaft 40 950 000 sold separately 583 IN S TA LL A T IO N S Y S T E M S Product no Colour RRP incl VAT price on request GROHE RAPID SL FOR WC MPL 2022 en BAL 129 PL Rapid SL WC 583 14 02 22 11 55
