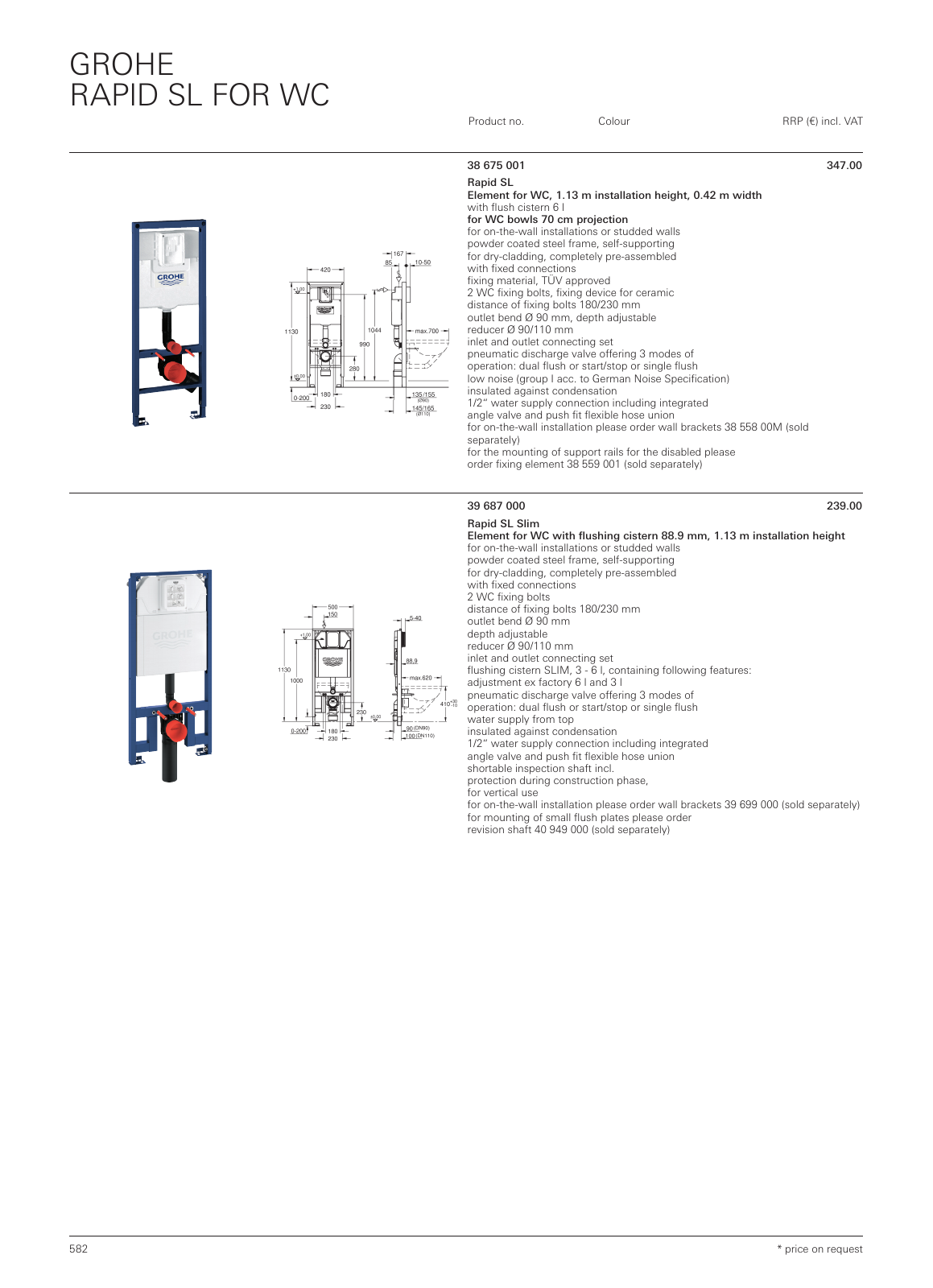

38 675 001 347 00 Rapid SL Element for WC 1 13 m installation height 0 42 m width with flush cistern 6 l for WC bowls 70 cm projection for on the wall installations or studded walls powder coated steel frame self supporting for dry cladding completely pre assembled with fixed connections fixing material TÜV approved 2 WC fixing bolts fixing device for ceramic distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm inlet and outlet connecting set pneumatic discharge valve offering 3 modes of operation dual flush or start stop or single flush low noise group I acc to German Noise Specification insulated against condensation 1 2 water supply connection including integrated angle valve and push fit flexible hose union for on the wall installation please order wall brackets 38 558 00M sold separately for the mounting of support rails for the disabled please order fixing element 38 559 001 sold separately 39 687 000 239 00 Rapid SL Slim Element for WC with flushing cistern 88 9 mm 1 13 m installation height for on the wall installations or studded walls powder coated steel frame self supporting for dry cladding completely pre assembled with fixed connections 2 WC fixing bolts distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm inlet and outlet connecting set flushing cistern SLIM 3 6 l containing following features adjustment ex factory 6 l and 3 l pneumatic discharge valve offering 3 modes of operation dual flush or start stop or single flush water supply from top insulated against condensation 1 2 water supply connection including integrated angle valve and push fit flexible hose union shortable inspection shaft incl protection during construction phase for vertical use for on the wall installation please order wall brackets 39 699 000 sold separately for mounting of small flush plates please order revision shaft 40 949 000 sold separately 582 GROHE RAPID SL FOR WC Product no Colour RRP incl VAT price on request MPL 2022 en BAL 129 PL Rapid SL WC 582 14 02 22 11 55
