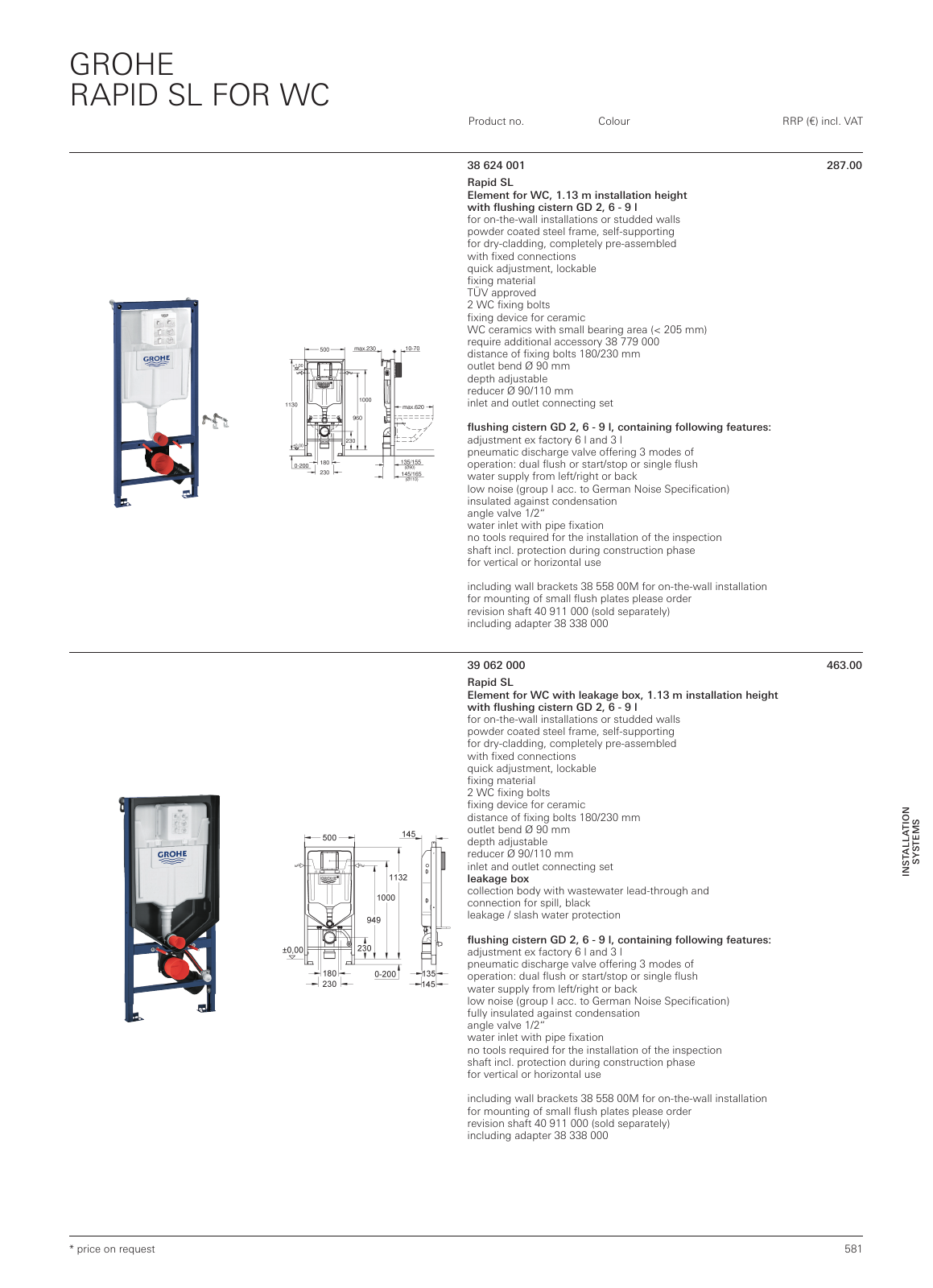

38 624 001 287 00 Rapid SL Element for WC 1 13 m installation height with flushing cistern GD 2 6 9 l for on the wall installations or studded walls powder coated steel frame self supporting for dry cladding completely pre assembled with fixed connections quick adjustment lockable fixing material TÜV approved 2 WC fixing bolts fixing device for ceramic WC ceramics with small bearing area 205 mm require additional accessory 38 779 000 distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm inlet and outlet connecting set flushing cistern GD 2 6 9 l containing following features adjustment ex factory 6 l and 3 l pneumatic discharge valve offering 3 modes of operation dual flush or start stop or single flush water supply from left right or back low noise group I acc to German Noise Specification insulated against condensation angle valve 1 2 water inlet with pipe fixation no tools required for the installation of the inspection shaft incl protection during construction phase for vertical or horizontal use including wall brackets 38 558 00M for on the wall installation for mounting of small flush plates please order revision shaft 40 911 000 sold separately including adapter 38 338 000 39 062 000 463 00 Rapid SL Element for WC with leakage box 1 13 m installation height with flushing cistern GD 2 6 9 l for on the wall installations or studded walls powder coated steel frame self supporting for dry cladding completely pre assembled with fixed connections quick adjustment lockable fixing material 2 WC fixing bolts fixing device for ceramic distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm inlet and outlet connecting set leakage box collection body with wastewater lead through and connection for spill black leakage slash water protection flushing cistern GD 2 6 9 l containing following features adjustment ex factory 6 l and 3 l pneumatic discharge valve offering 3 modes of operation dual flush or start stop or single flush water supply from left right or back low noise group I acc to German Noise Specification fully insulated against condensation angle valve 1 2 water inlet with pipe fixation no tools required for the installation of the inspection shaft incl protection during construction phase for vertical or horizontal use including wall brackets 38 558 00M for on the wall installation for mounting of small flush plates please order revision shaft 40 911 000 sold separately including adapter 38 338 000 581 IN S TA LL A T IO N S Y S T E M S Product no Colour RRP incl VAT price on request GROHE RAPID SL FOR WC MPL 2022 en BAL 129 PL Rapid SL WC 581 14 02 22 11 55
