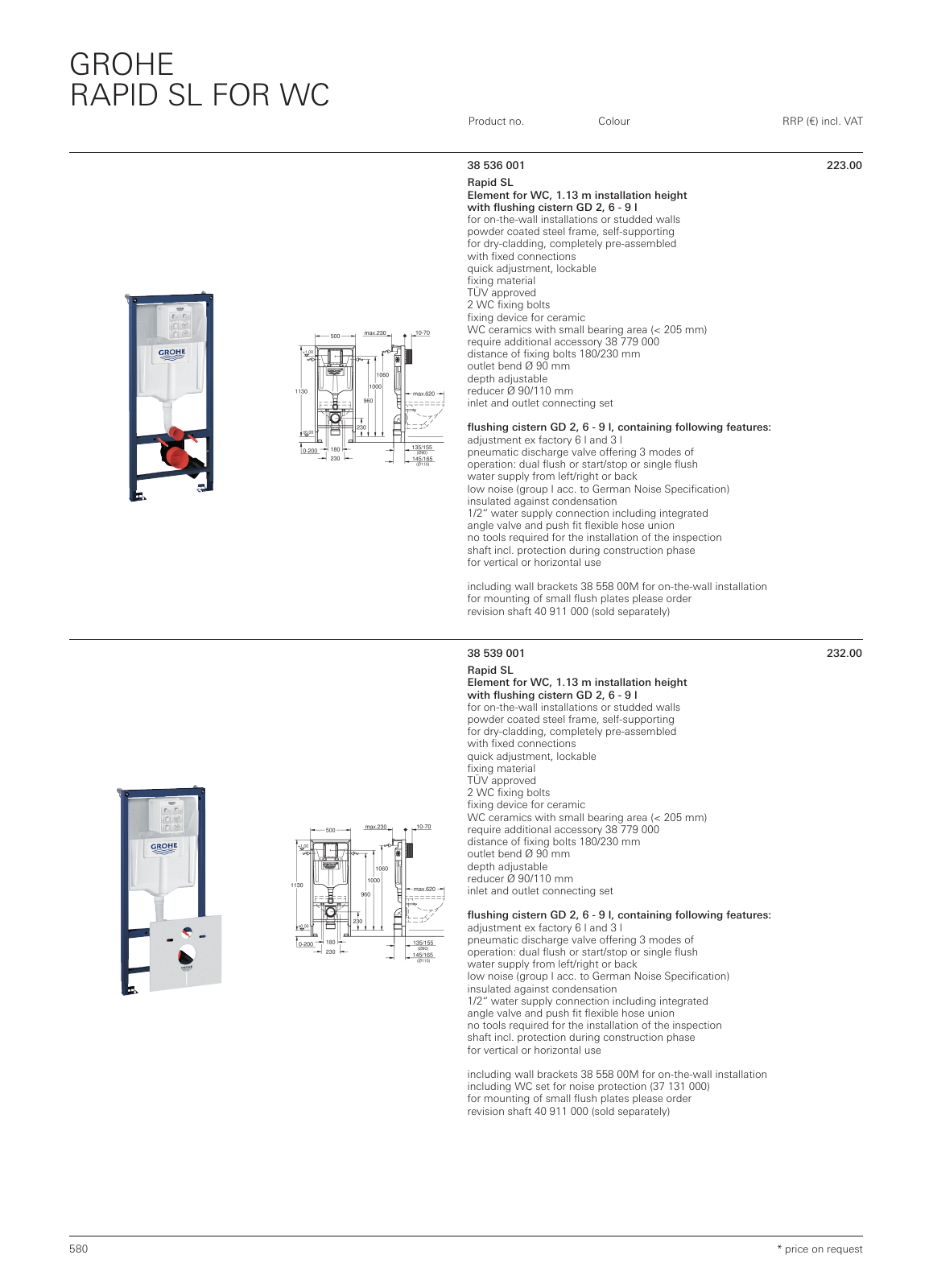

38 536 001 223 00 Rapid SL Element for WC 1 13 m installation height with flushing cistern GD 2 6 9 l for on the wall installations or studded walls powder coated steel frame self supporting for dry cladding completely pre assembled with fixed connections quick adjustment lockable fixing material TÜV approved 2 WC fixing bolts fixing device for ceramic WC ceramics with small bearing area 205 mm require additional accessory 38 779 000 distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm inlet and outlet connecting set flushing cistern GD 2 6 9 l containing following features adjustment ex factory 6 l and 3 l pneumatic discharge valve offering 3 modes of operation dual flush or start stop or single flush water supply from left right or back low noise group I acc to German Noise Specification insulated against condensation 1 2 water supply connection including integrated angle valve and push fit flexible hose union no tools required for the installation of the inspection shaft incl protection during construction phase for vertical or horizontal use including wall brackets 38 558 00M for on the wall installation for mounting of small flush plates please order revision shaft 40 911 000 sold separately 38 539 001 232 00 Rapid SL Element for WC 1 13 m installation height with flushing cistern GD 2 6 9 l for on the wall installations or studded walls powder coated steel frame self supporting for dry cladding completely pre assembled with fixed connections quick adjustment lockable fixing material TÜV approved 2 WC fixing bolts fixing device for ceramic WC ceramics with small bearing area 205 mm require additional accessory 38 779 000 distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm inlet and outlet connecting set flushing cistern GD 2 6 9 l containing following features adjustment ex factory 6 l and 3 l pneumatic discharge valve offering 3 modes of operation dual flush or start stop or single flush water supply from left right or back low noise group I acc to German Noise Specification insulated against condensation 1 2 water supply connection including integrated angle valve and push fit flexible hose union no tools required for the installation of the inspection shaft incl protection during construction phase for vertical or horizontal use including wall brackets 38 558 00M for on the wall installation including WC set for noise protection 37 131 000 for mounting of small flush plates please order revision shaft 40 911 000 sold separately 580 GROHE RAPID SL FOR WC Product no Colour RRP incl VAT price on request MPL 2022 en BAL 129 PL Rapid SL WC 580 14 02 22 11 55
