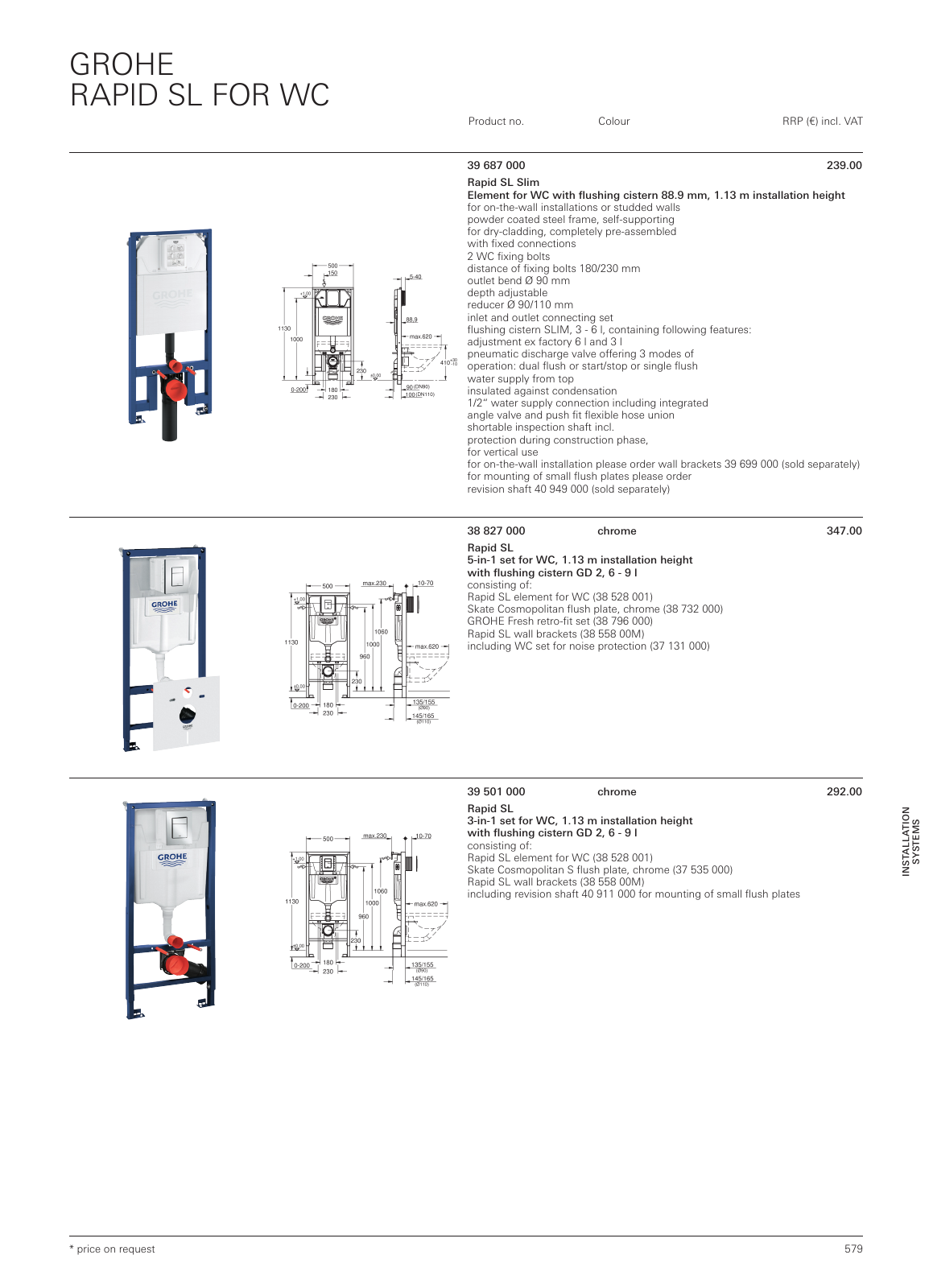

39 687 000 239 00 Rapid SL Slim Element for WC with flushing cistern 88 9 mm 1 13 m installation height for on the wall installations or studded walls powder coated steel frame self supporting for dry cladding completely pre assembled with fixed connections 2 WC fixing bolts distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm inlet and outlet connecting set flushing cistern SLIM 3 6 l containing following features adjustment ex factory 6 l and 3 l pneumatic discharge valve offering 3 modes of operation dual flush or start stop or single flush water supply from top insulated against condensation 1 2 water supply connection including integrated angle valve and push fit flexible hose union shortable inspection shaft incl protection during construction phase for vertical use for on the wall installation please order wall brackets 39 699 000 sold separately for mounting of small flush plates please order revision shaft 40 949 000 sold separately 38 827 000 chrome 347 00 Rapid SL 5 in 1 set for WC 1 13 m installation height with flushing cistern GD 2 6 9 l consisting of Rapid SL element for WC 38 528 001 Skate Cosmopolitan flush plate chrome 38 732 000 GROHE Fresh retro fit set 38 796 000 Rapid SL wall brackets 38 558 00M including WC set for noise protection 37 131 000 39 501 000 chrome 292 00 Rapid SL 3 in 1 set for WC 1 13 m installation height with flushing cistern GD 2 6 9 l consisting of Rapid SL element for WC 38 528 001 Skate Cosmopolitan S flush plate chrome 37 535 000 Rapid SL wall brackets 38 558 00M including revision shaft 40 911 000 for mounting of small flush plates 579 IN S TA LL A T IO N S Y S T E M S Product no Colour RRP incl VAT price on request GROHE RAPID SL FOR WC MPL 2022 en BAL 129 PL Rapid SL WC 579 14 02 22 11 55
