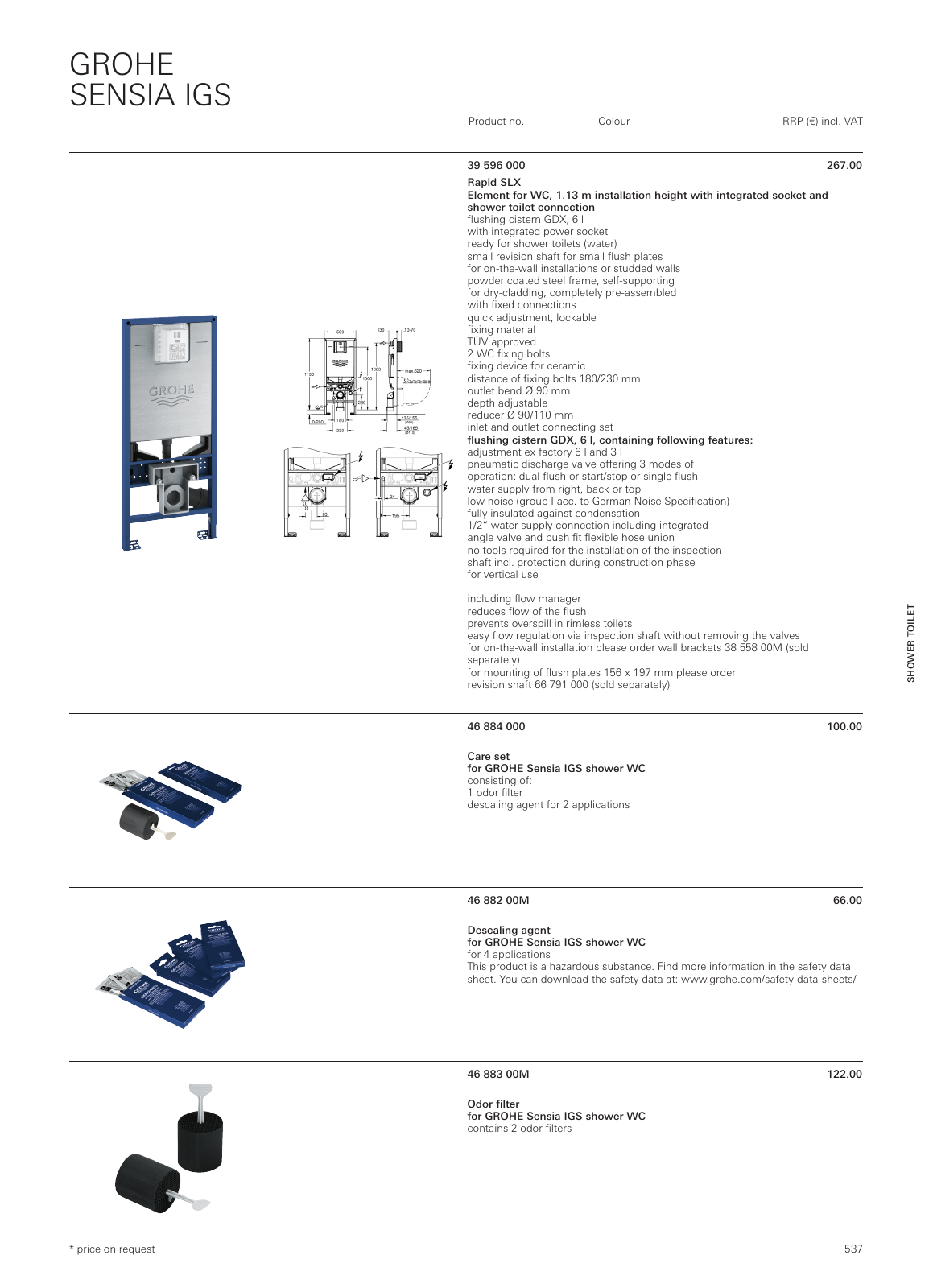

39 596 000 267 00 Rapid SLX Element for WC 1 13 m installation height with integrated socket and shower toilet connection flushing cistern GDX 6 l with integrated power socket ready for shower toilets water small revision shaft for small flush plates for on the wall installations or studded walls powder coated steel frame self supporting for dry cladding completely pre assembled with fixed connections quick adjustment lockable fixing material TÜV approved 2 WC fixing bolts fixing device for ceramic distance of fixing bolts 180 230 mm outlet bend Ø 90 mm depth adjustable reducer Ø 90 110 mm inlet and outlet connecting set flushing cistern GDX 6 l containing following features adjustment ex factory 6 l and 3 l pneumatic discharge valve offering 3 modes of operation dual flush or start stop or single flush water supply from right back or top low noise group I acc to German Noise Specification fully insulated against condensation 1 2 water supply connection including integrated angle valve and push fit flexible hose union no tools required for the installation of the inspection shaft incl protection during construction phase for vertical use including flow manager reduces flow of the flush prevents overspill in rimless toilets easy flow regulation via inspection shaft without removing the valves for on the wall installation please order wall brackets 38 558 00M sold separately for mounting of flush plates 156 x 197 mm please order revision shaft 66 791 000 sold separately 46 884 000 100 00 Care set for GROHE Sensia IGS shower WC consisting of 1 odor filter descaling agent for 2 applications 46 882 00M 66 00 Descaling agent for GROHE Sensia IGS shower WC for 4 applications This product is a hazardous substance Find more information in the safety data sheet You can download the safety data at www grohe com safety data sheets 46 883 00M 122 00 Odor filter for GROHE Sensia IGS shower WC contains 2 odor filters 537 S H O W E R T O IL E T Product no Colour RRP incl VAT price on request GROHE SENSIA IGS MPL 2022 en BAL 118 PL GROHE Sensia IS 537 14 02 22 10 16
