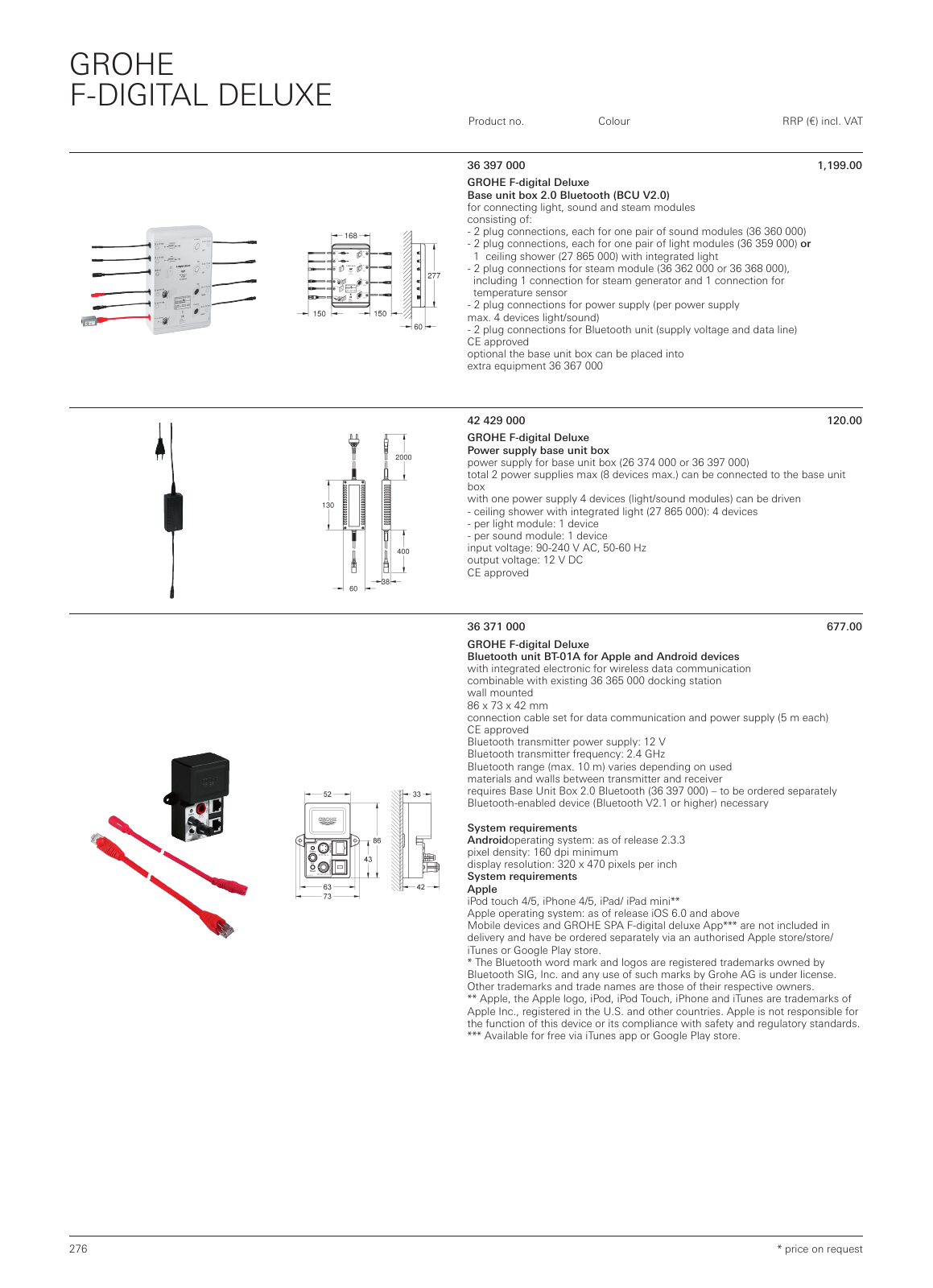

36 397 000 1 199 00 GROHE F digital Deluxe Base unit box 2 0 Bluetooth BCU V2 0 for connecting light sound and steam modules consisting of 2 plug connections each for one pair of sound modules 36 360 000 2 plug connections each for one pair of light modules 36 359 000 or 1 ceiling shower 27 865 000 with integrated light 2 plug connections for steam module 36 362 000 or 36 368 000 including 1 connection for steam generator and 1 connection for temperature sensor 2 plug connections for power supply per power supply max 4 devices light sound 2 plug connections for Bluetooth unit supply voltage and data line CE approved optional the base unit box can be placed into extra equipment 36 367 000 42 429 000 120 00 GROHE F digital Deluxe Power supply base unit box power supply for base unit box 26 374 000 or 36 397 000 total 2 power supplies max 8 devices max can be connected to the base unit box with one power supply 4 devices light sound modules can be driven ceiling shower with integrated light 27 865 000 4 devices per light module 1 device per sound module 1 device input voltage 90 240 V AC 50 60 Hz output voltage 12 V DC CE approved 36 371 000 677 00 GROHE F digital Deluxe Bluetooth unit BT 01A for Apple and Android devices with integrated electronic for wireless data communication combinable with existing 36 365 000 docking station wall mounted 86 x 73 x 42 mm connection cable set for data communication and power supply 5 m each CE approved Bluetooth transmitter power supply 12 V Bluetooth transmitter frequency 2 4 GHz Bluetooth range max 10 m varies depending on used materials and walls between transmitter and receiver requires Base Unit Box 2 0 Bluetooth 36 397 000 to be ordered separately Bluetooth enabled device Bluetooth V2 1 or higher necessary System requirements Androidoperating system as of release 2 3 3 pixel density 160 dpi minimum display resolution 320 x 470 pixels per inch System requirements Apple iPod touch 4 5 iPhone 4 5 iPad iPad mini Apple operating system as of release iOS 6 0 and above Mobile devices and GROHE SPA F digital deluxe App are not included in delivery and have be ordered separately via an authorised Apple store store iTunes or Google Play store The Bluetooth word mark and logos are registered trademarks owned by Bluetooth SIG Inc and any use of such marks by Grohe AG is under license Other trademarks and trade names are those of their respective owners Apple the Apple logo iPod iPod Touch iPhone and iTunes are trademarks of Apple Inc registered in the U S and other countries Apple is not responsible for the function of this device or its compliance with safety and regulatory standards Available for free via iTunes app or Google Play store 276 GROHE F DIGITAL DELUXE Product no Colour RRP incl VAT price on request MPL 2022 en BAL 054 PL F digital deluxe 276 14 02 22 07 41
