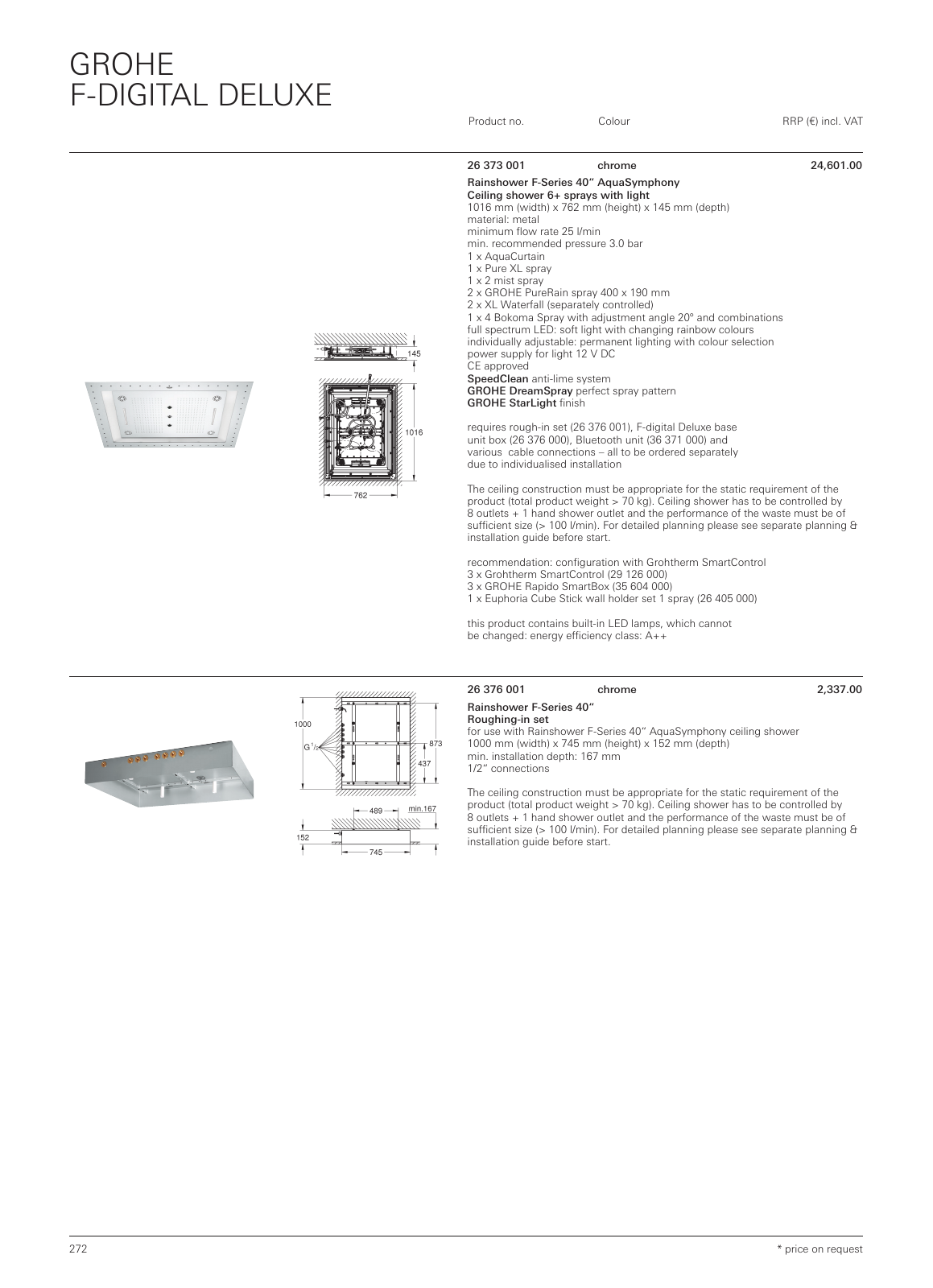

26 373 001 chrome 24 601 00 Rainshower F Series 40 AquaSymphony Ceiling shower 6 sprays with light 1016 mm width x 762 mm height x 145 mm depth material metal minimum flow rate 25 l min min recommended pressure 3 0 bar 1 x AquaCurtain 1 x Pure XL spray 1 x 2 mist spray 2 x GROHE PureRain spray 400 x 190 mm 2 x XL Waterfall separately controlled 1 x 4 Bokoma Spray with adjustment angle 20 and combinations full spectrum LED soft light with changing rainbow colours individually adjustable permanent lighting with colour selection power supply for light 12 V DC CE approved SpeedClean anti lime system GROHE DreamSpray perfect spray pattern GROHE StarLight finish requires rough in set 26 376 001 F digital Deluxe base unit box 26 376 000 Bluetooth unit 36 371 000 and various cable connections all to be ordered separately due to individualised installation The ceiling construction must be appropriate for the static requirement of the product total product weight 70 kg Ceiling shower has to be controlled by 8 outlets 1 hand shower outlet and the performance of the waste must be of sufficient size 100 l min For detailed planning please see separate planning installation guide before start recommendation configuration with Grohtherm SmartControl 3 x Grohtherm SmartControl 29 126 000 3 x GROHE Rapido SmartBox 35 604 000 1 x Euphoria Cube Stick wall holder set 1 spray 26 405 000 this product contains built in LED lamps which cannot be changed energy efficiency class A 26 376 001 chrome 2 337 00 Rainshower F Series 40 Roughing in set for use with Rainshower F Series 40 AquaSymphony ceiling shower 1000 mm width x 745 mm height x 152 mm depth min installation depth 167 mm 1 2 connections The ceiling construction must be appropriate for the static requirement of the product total product weight 70 kg Ceiling shower has to be controlled by 8 outlets 1 hand shower outlet and the performance of the waste must be of sufficient size 100 l min For detailed planning please see separate planning installation guide before start 272 GROHE F DIGITAL DELUXE Product no Colour RRP incl VAT price on request MPL 2022 en BAL 054 PL F digital deluxe 272 14 02 22 07 41
