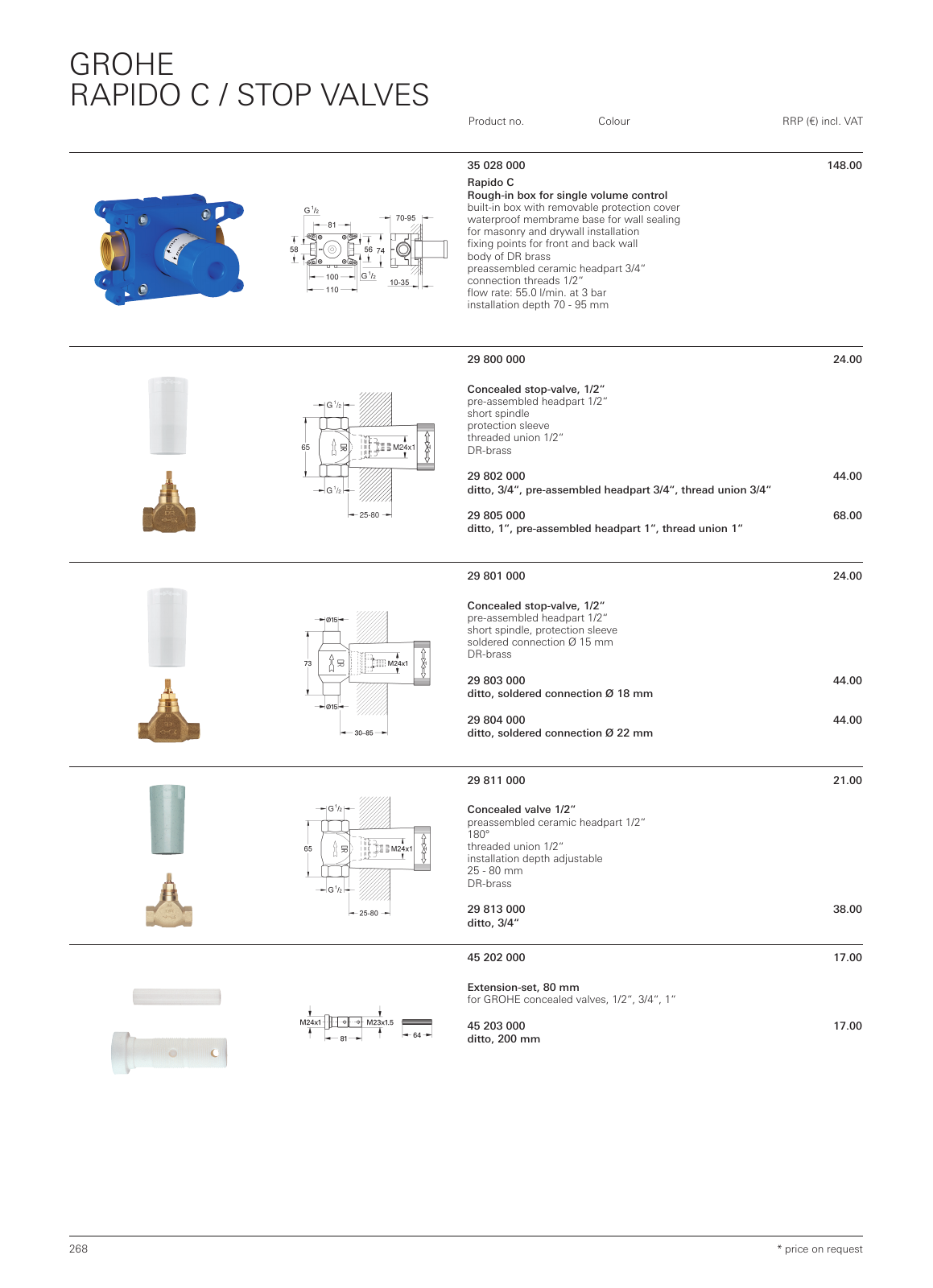

35 028 000 148 00 Rapido C Rough in box for single volume control built in box with removable protection cover waterproof membrame base for wall sealing for masonry and drywall installation fixing points for front and back wall body of DR brass preassembled ceramic headpart 3 4 connection threads 1 2 flow rate 55 0 l min at 3 bar installation depth 70 95 mm 29 800 000 24 00 Concealed stop valve 1 2 pre assembled headpart 1 2 short spindle protection sleeve threaded union 1 2 DR brass 29 802 000 44 00 ditto 3 4 pre assembled headpart 3 4 thread union 3 4 29 805 000 68 00 ditto 1 pre assembled headpart 1 thread union 1 29 801 000 24 00 Concealed stop valve 1 2 pre assembled headpart 1 2 short spindle protection sleeve soldered connection Ø 15 mm DR brass 29 803 000 44 00 ditto soldered connection Ø 18 mm 29 804 000 44 00 ditto soldered connection Ø 22 mm 29 811 000 21 00 Concealed valve 1 2 preassembled ceramic headpart 1 2 180 threaded union 1 2 installation depth adjustable 25 80 mm DR brass 29 813 000 38 00 ditto 3 4 45 202 000 17 00 Extension set 80 mm for GROHE concealed valves 1 2 3 4 1 45 203 000 17 00 ditto 200 mm 268 GROHE RAPIDO C STOP VALVES Product no Colour RRP incl VAT price on request MPL 2022 en BAL 052 PL Rapido C 268 14 02 22 07 39
